LA300A-GBDF (2012)
Toyota Pixis Epoch
Production
Apr 2012
-
Jul 2013
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )LA300

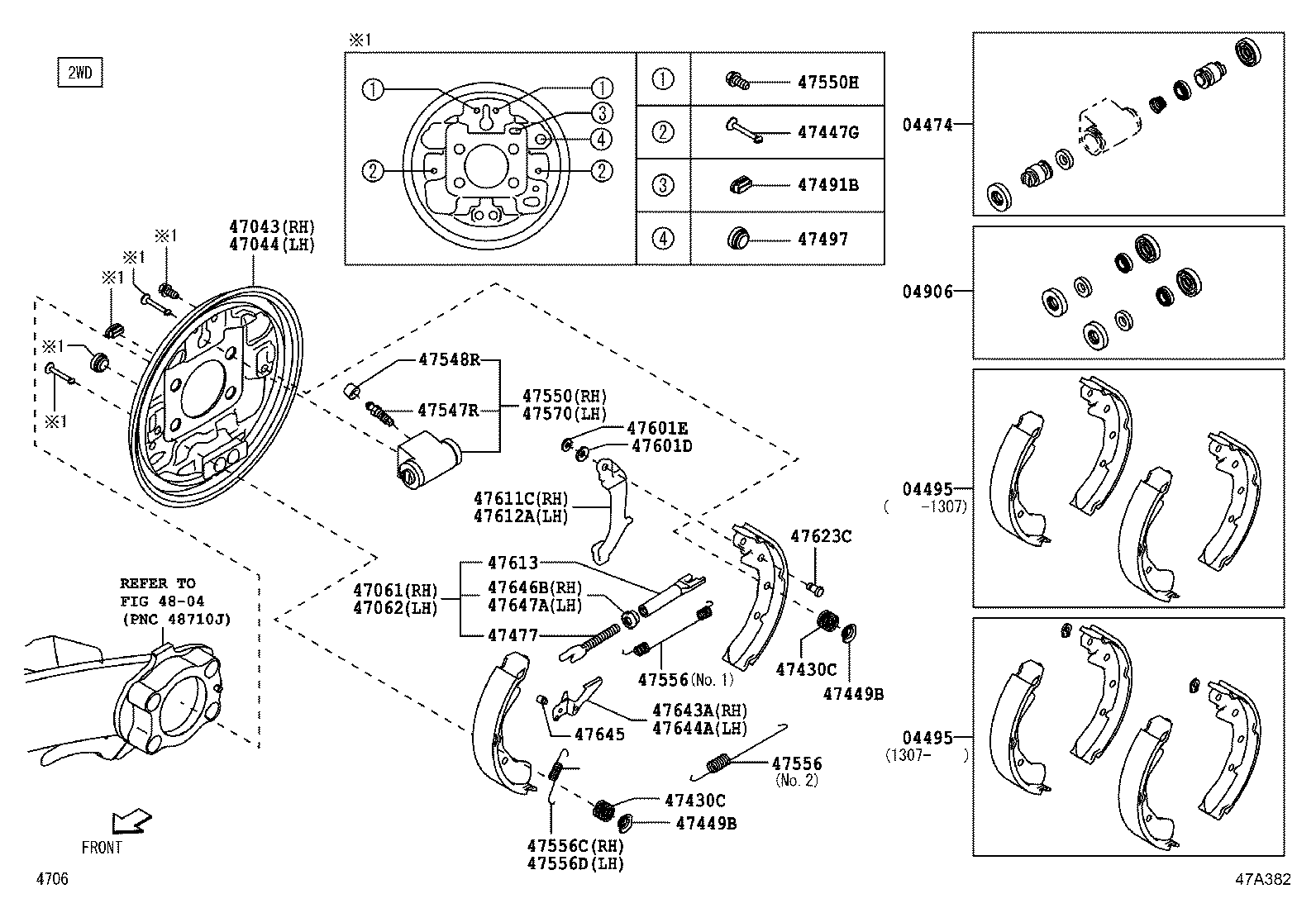

Click highlighted areas on diagram
2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B2090 |
LA300 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B2270 |
LA300 |
1 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B2270 |
LA300 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-B2050 |
LA300 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-B2080 |
LA300 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-B2080 |
LA300 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-B2030 |
LA300 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-B2030 |
LA300 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-B2010 |
LA300 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-B2010 |
LA300 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-B2010 |
LA300 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-B2010 |
LA300 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-B2010 |
LA300 |
4 | ||
| 47477 - PIECE, SHOE SUPPORT (FOR REAR BRAKE) | ||||
| 47477-B2010 |
LA300 右側 |
1 | ||
| 47477-B2020 |
LA300 左側 |
1 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-B2020 |
LA300 |
2 | ||
| 47497 - PLUG, HOLE NO.2(FOR REAR BRAKE) | ||||
| 47491-B2010 |
LA300 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-B2010 |
LA300 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-B2030 |
LA300 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-B2040 |
LA300 |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 47553-B2010 |
LA300 M6,L=12 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-B2020 |
LA300 NO.1 |
2 | ||
| 47556-B2010 |
LA300 NO.2 |
2 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-B2020 |
LA300 NO.1 |
2 | ||
| 47556-B2010 |
LA300 NO.2 |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-B2030 |
LA300 |
1 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-B2030 |
LA300 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-B2040 |
LA300 |
1 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 44645-B2010 |
LA300 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 22498-B2020 |
LA300 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-B2060 |
LA300 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-B2060 |
LA300 |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-B2060 |
LA300 |
2 | ||
| 47623C - PIN, PARKING BRAKE LEVER | ||||
| 47623-B2020 |
LA300 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-B2010 |
LA300 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-B2010 |
LA300 |
1 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-B2030 |
LA300 |
2 | ||
| 47646B - LATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47646-B2010 |
LA300 |
1 | ||
| 47647A - LATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47646-B2020 |
LA300 |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||
