LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

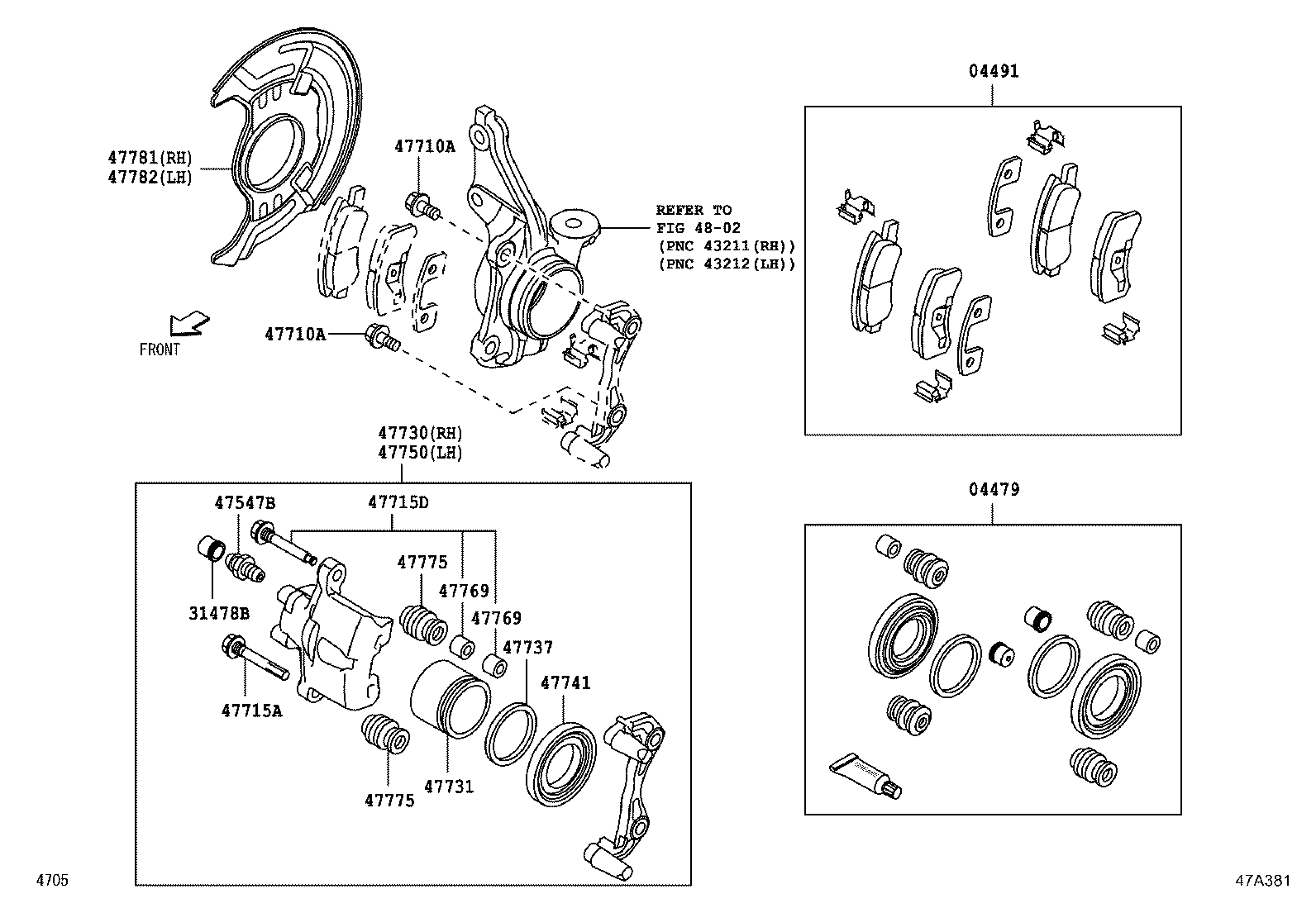

(1204-1302)

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47710A 47715A 47715D 47730 47731 47737 47741 47750 47769 47769 47775 47775 47781 47782 4802
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-B2140

LA300,310

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04465-B2150

LA300,310

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-B3010

LA300,310

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-87207

LA300,310

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05242

LA300,310

M12,L=22

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05242

LA300,310

M12,L=22

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-97201

LA300,310

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47714-B2020

LA300,310

 2
47715-97202

LA300,310

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-B2012

LA300,310

 1
47730-B2013

LA300,310

 1
47731 - PISTON, FRONT DISC BRAKE
47731-97201

LA300,310

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-97201

LA300,310

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-97201

LA300,310

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-B2013

LA300,310

 1
47750-B2012

LA300,310

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-97201

LA300,310

 2
47769-97201

LA300,310

 4
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-97201

LA300,310

 2
47769-97201

LA300,310

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-97201

LA300,310

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-97201

LA300,310

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-B2060

LA300,310

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-B2060

LA300,310

 1
Linked diagrams
4802

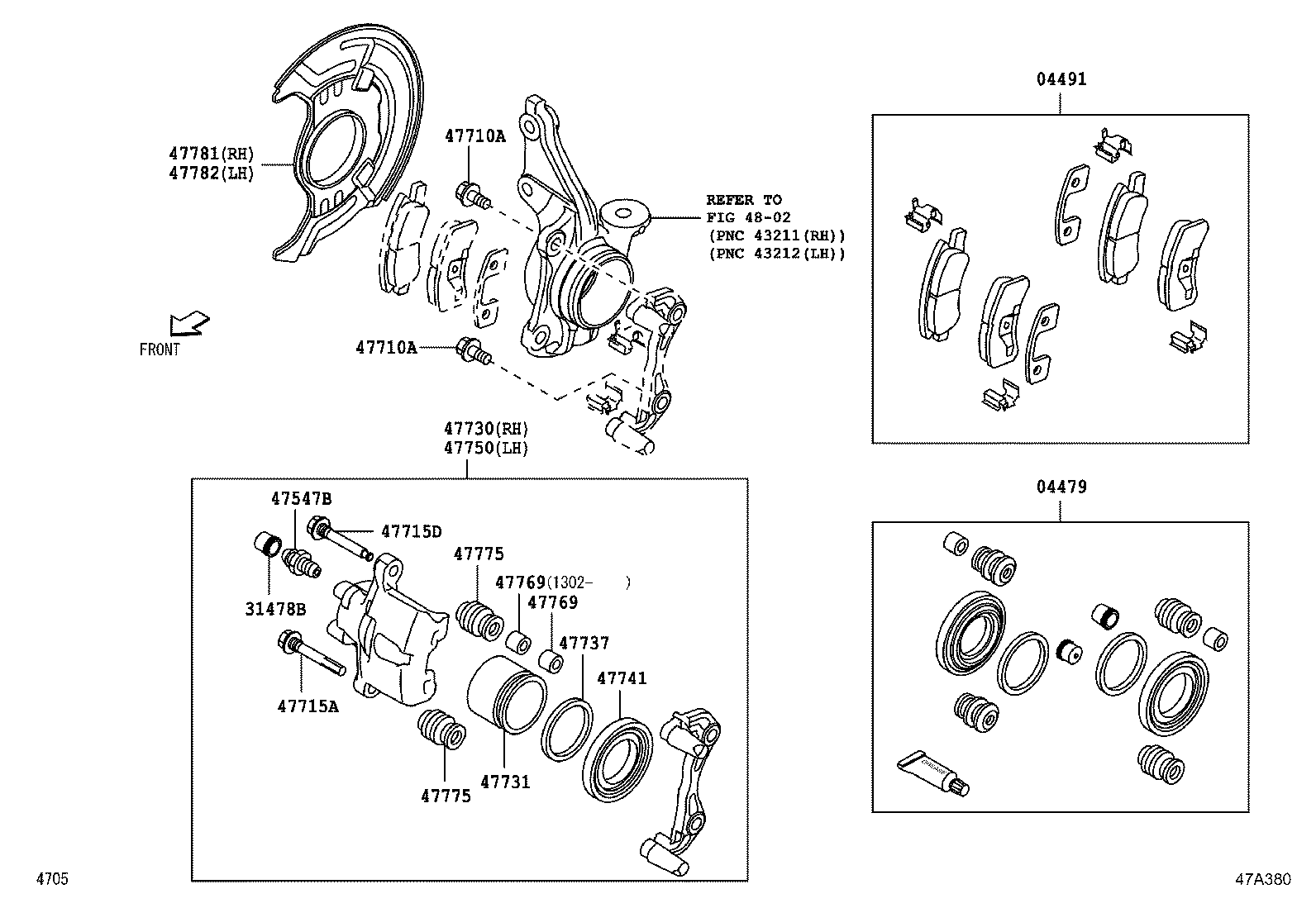

(1302- )

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47710A 47715A 47715D 47730 47731 47737 47741 47750 47769 47769 47775 47775 47781 47782 4802
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-B2140

LA300,310

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04465-B2150

LA300,310

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-B3010

LA300,310

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-87207

LA300,310

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05242

LA300,310

M12,L=22

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05242

LA300,310

M12,L=22

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-97201

LA300,310

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47714-B2020

LA300,310

 2
47715-97202

LA300,310

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-B2012

LA300,310

 1
47730-B2013

LA300,310

 1
47731 - PISTON, FRONT DISC BRAKE
47731-97201

LA300,310

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-97201

LA300,310

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-97201

LA300,310

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-B2013

LA300,310

 1
47750-B2012

LA300,310

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-97201

LA300,310

 2
47769-97201

LA300,310

 4
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-97201

LA300,310

 2
47769-97201

LA300,310

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-97201

LA300,310

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-97201

LA300,310

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-B2060

LA300,310

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-B2060

LA300,310

 1
Linked diagrams
4802
