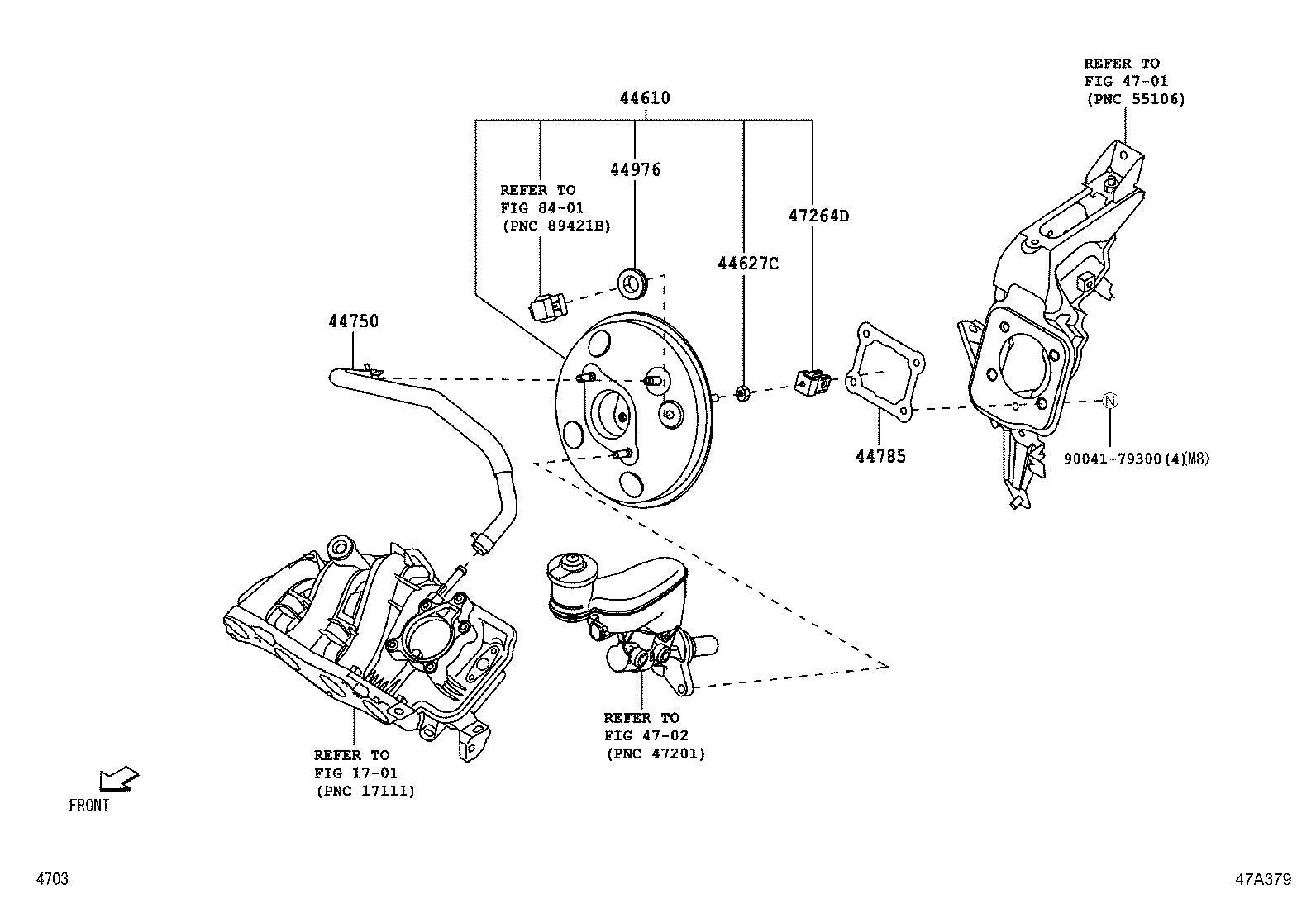

Toyota Pixis epoch LA300A BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-B2610	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
44610-B2620	LA300,310..G,GF	04/2012 - 07/2013	1
44627C - NUT, BOOSTER SLEEVE CYLINDER
94120-40800	LA300,310 M8	04/2012 - 07/2013	1
44750 - HOSE ASSY, VACUUM
44750-B2130	LA300,310	04/2012 - 07/2013	1
44785 - GASKET, BRAKE BOOSTER
47278-87703	LA300,310	04/2012 - 07/2013	1
44976 - SEAL, BOOSTER
44685-B2010	LA300,310	04/2012 - 07/2013	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-B2020	LA300,310	04/2012 - 07/2013	1
Common parts
90041-79300
Linked diagrams
1701
4701
4702
8401

LA300A-GBDF (2012)
