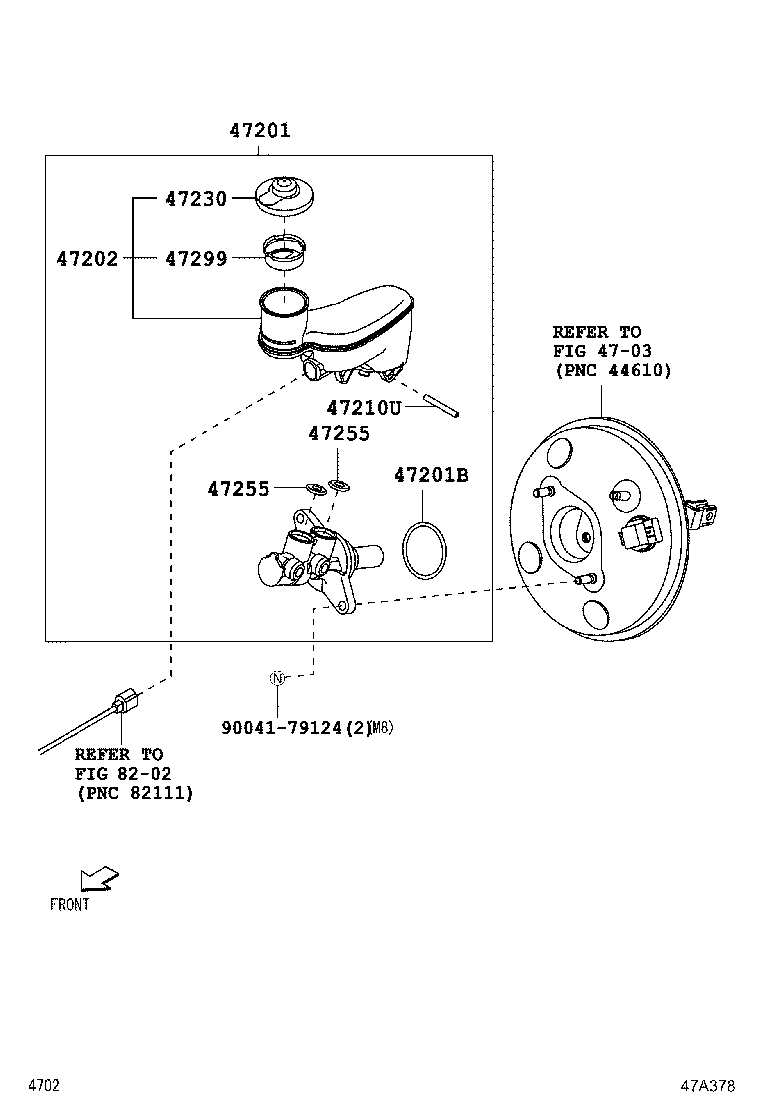

Toyota Pixis epoch LA300A BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-B2190	LA300,310	04/2012 - 07/2013	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90043-01352	LA300,310	04/2012 - 07/2013	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-B2110	LA300,310	04/2012 - 07/2013	1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90042-43029	LA300,310	04/2012 - 07/2013	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-B4010	LA300,310	04/2012 - 07/2013	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-B2050	LA300,310	04/2012 - 07/2013	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-B2050	LA300,310	04/2012 - 07/2013	2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-B2030	LA300,310	04/2012 - 07/2013	1
Common parts
90041-79124
Linked diagrams
4703
8202

LA300A-GBDF (2012)
