LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

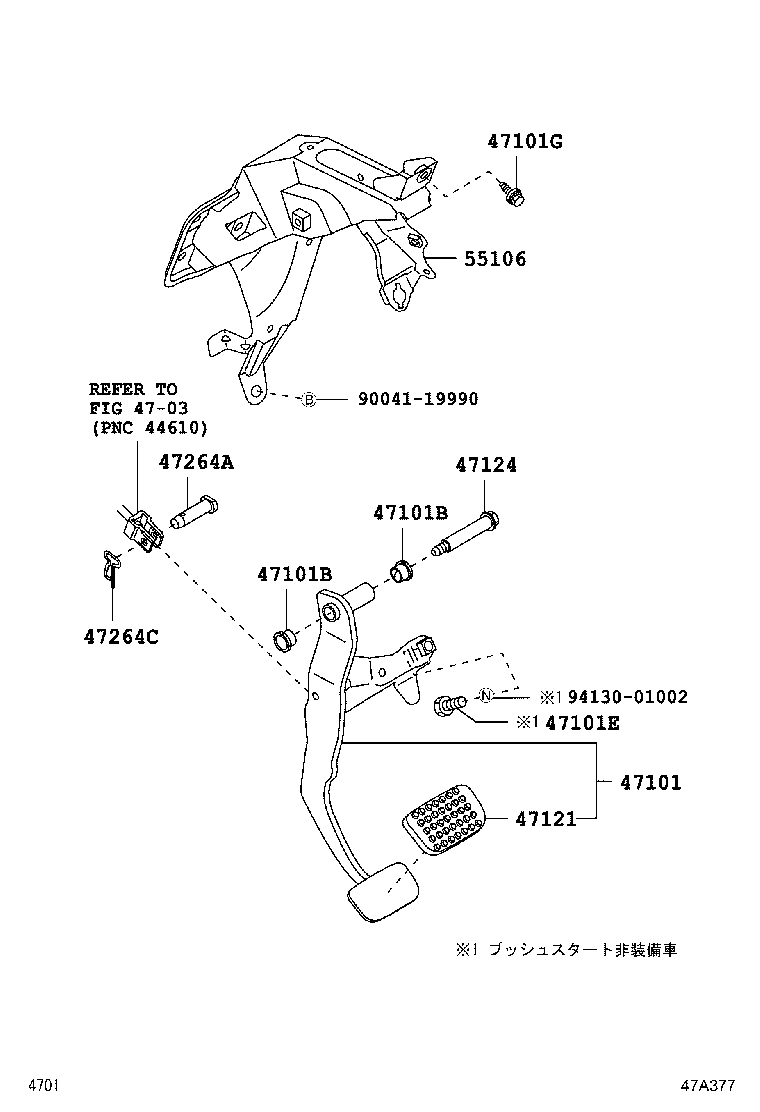

Click highlighted areas on diagram

diagram 4703 47101 47101B 47101B 47101E 47101G 47121 47124 47264A 47264C 55106 9004119990 9413001002
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47110-B2270

LA300,310

 1
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

LA300,310

 2
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

LA300,310

 2
47101E - STOPPER, SHIFT LOCK
31322-87403

LA300,310

 1
47101G - BOLT, BRAKE PEDAL STOP, NO.1
45898-B2010

LA300,310

 1
47121 - PAD, BRAKE PEDAL
47121-87202

LA300,310

 1
47124 - SHAFT, BRAKE PEDAL
31324-B2010

LA300,310

 1
47264A - PIN(FOR PUSH ROD)
90042-40151

LA300,310

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90044-68076

LA300,310

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-B2360

LA300,310

 1
Common parts
90041-19990
94130-01002
Linked diagrams
4703
