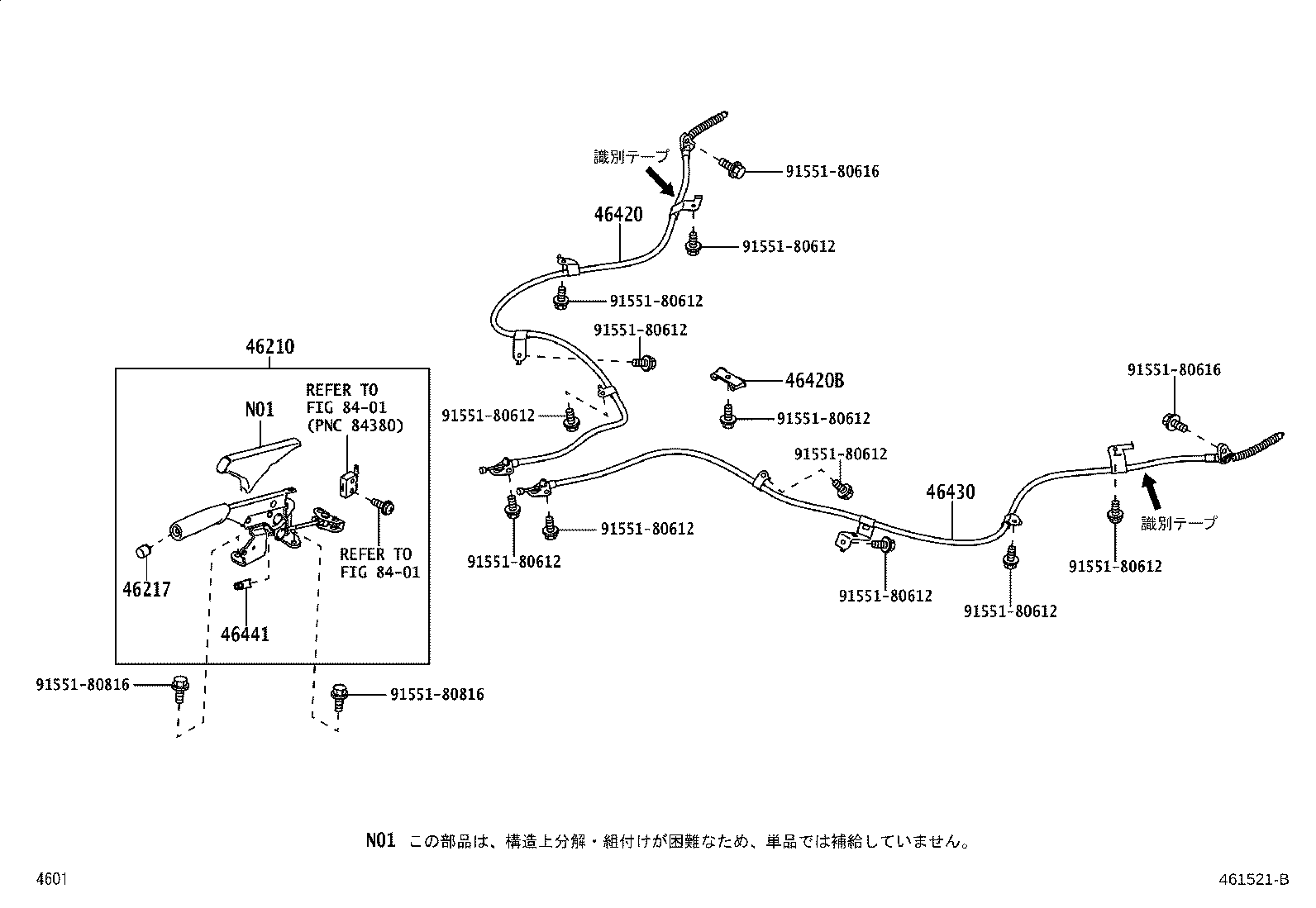

Toyota Pixis epoch LA300A PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-B2011B0	LA300,310..D,L,LF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
46210-B2140B0	LA300,310..G,GF,X,XF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-B2020B0	LA300,310..D,L,LF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-B2280	LA300 識別ﾃｰﾌﾟ=ﾌﾞﾙｰ	04/2012 - 07/2013	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90044-61832	LA300,310	04/2012 - 07/2013	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-B2280	LA300 識別ﾃｰﾌﾟ=ﾚﾂﾄﾞ	04/2012 - 07/2013	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-B2010	LA300,310	04/2012 - 07/2013	1
Common parts
91551-80612
91551-80616
91551-80816
Linked diagrams
8401

LA300A-GBDF (2012)
