LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

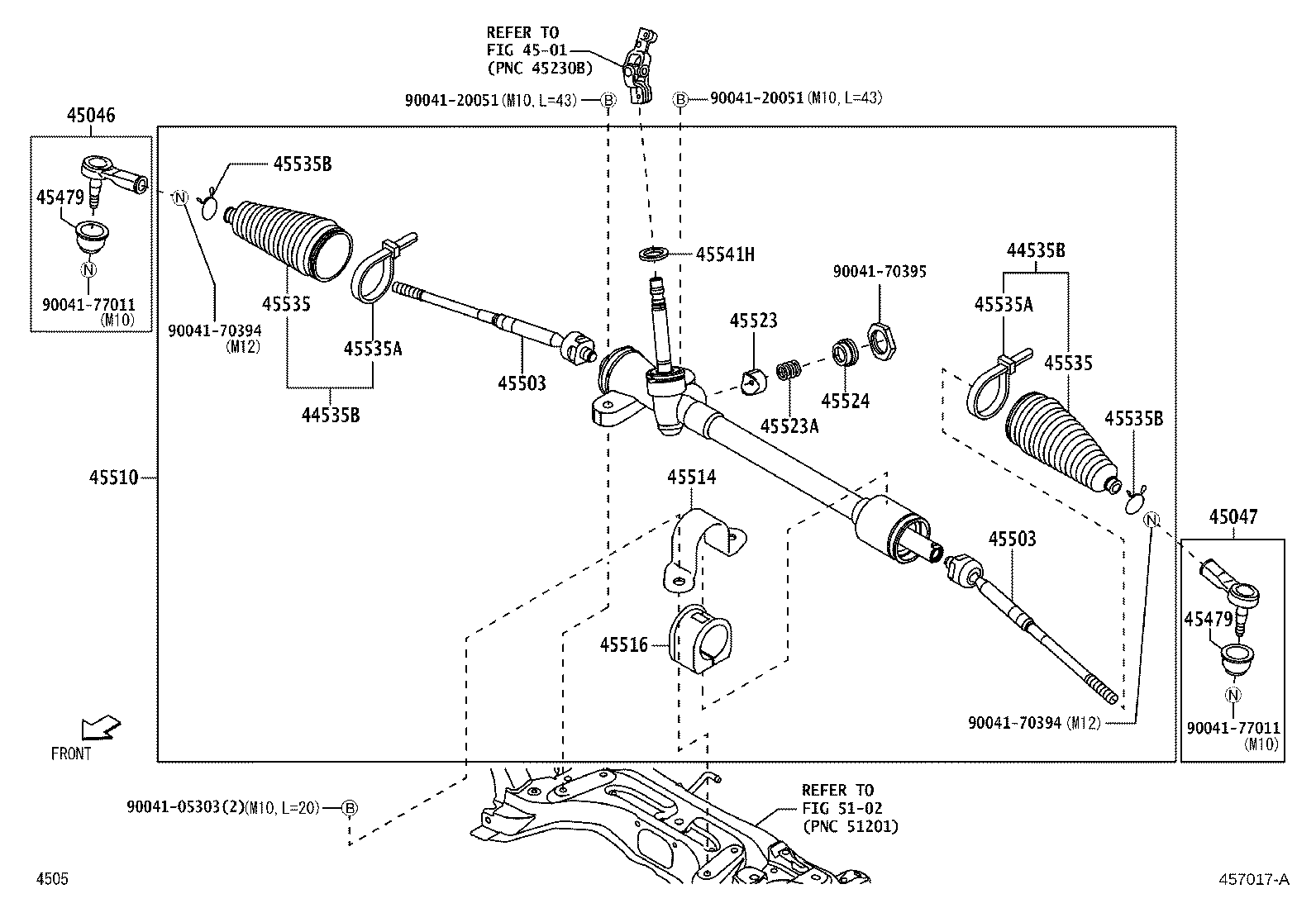

Click highlighted areas on diagram

diagram 44535B 44535B 4501 45046 45047 45479 45479 45503 45503 45510 45514 45516 45523 45523A 45524 45535 45535 45535A 45535A 45535B 45535B 45541H 5102 9004105303 9004120051 9004120051 9004170394 9004170394 9004170395 9004177011 9004177011
Part # Description Qty Price
44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING)
45535-B9060

LA300,310

 2
44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING)
45535-B9060

LA300,310

 2
45046 - END SUB-ASSY, TIE ROD, RH
45046-B9391

LA300,310

 1
45047 - END SUB-ASSY, TIE ROD, LH
45046-B9391

LA300,310

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-B2030

LA300,310

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-B2030

LA300,310

 2
45503 - END SUB-ASSY, STEERING RACK
45503-B2070

LA300,310

 2
45503 - END SUB-ASSY, STEERING RACK
45503-B2070

LA300,310

 2
45510 - GEAR ASSY, STEERING
45502-B2410

LA300,310

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-B2060

LA300,310

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-B2140

LA300,310

 1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-B2030

LA300,310

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90045-01936

LA300,310

 1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-B2030

LA300,310

 1
45535 - BOOT, STEERING RACK, NO.1
45535-B2070

LA300,310

 2
45535 - BOOT, STEERING RACK, NO.1
45535-B2070

LA300,310

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-B2010

LA300,310

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-B2010

LA300,310

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-B2020

LA300,310

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-B2020

LA300,310

 2
45541H - SEAL, OIL(FOR STEERING PINION)
90043-13029

LA300,310

 1
Common parts
90041-05303
90041-20051
90041-70394
90041-70395
90041-77011
Linked diagrams
4501
5102
