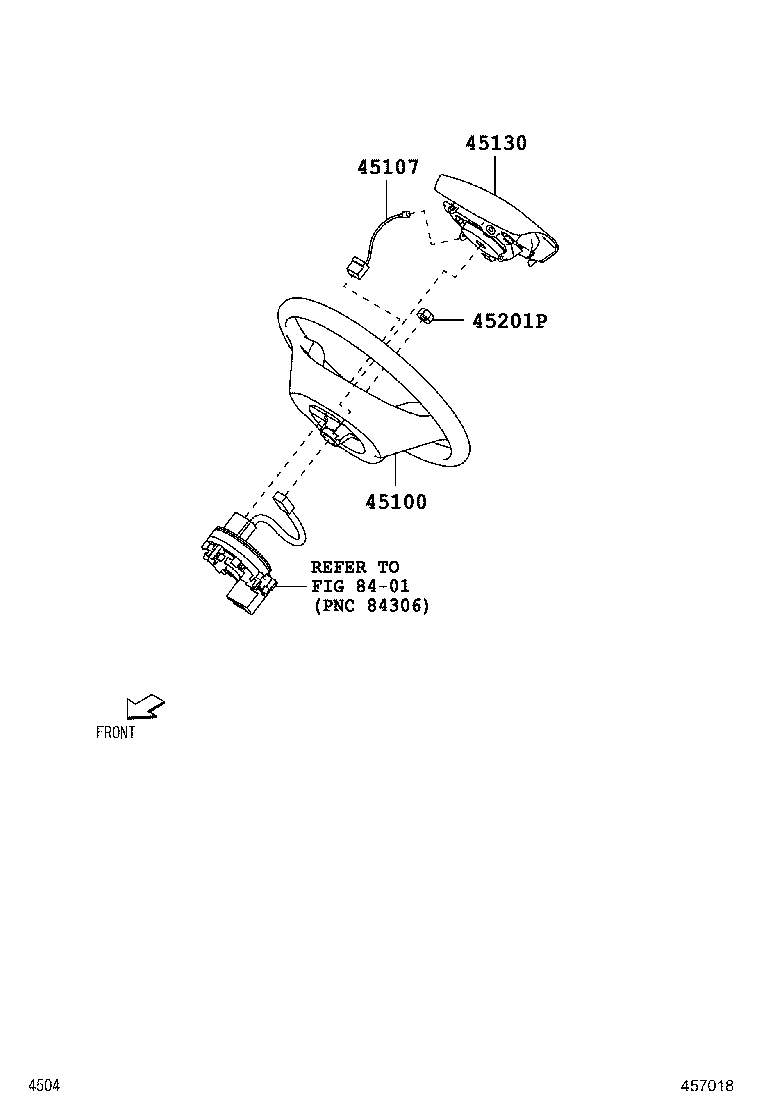

Toyota Pixis epoch LA300A STEERING WHEEL

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45102-B2720B0	LA300,310..D,GF,L,LF,X,XF 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45102-B2590B0	LA300..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2050	LA300,310	04/2012 - 07/2013	1
45130 - BUTTON ASSY, HORN
45130-B2570B0	LA300,310..L,LF L−LTD,DK.GRAY,TRIM1#	10/2012 - 07/2013	1
45130-B2560B0	LA300,310..D,L,LF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45130-B2570B0	LA300,310..G,GF,X,XF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45201P - NUT, STEERING WHEEL SET
90041-70014	LA300,310	04/2012 - 07/2013	1
Linked diagrams
8401

LA300A-GBDF (2012)
