Toyota Pixis epoch LA300A STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
JP
PIXIS EPOCH
LA300A-GBDF (2012)
4501 - STEERING COLUMN & SHAFT

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1204- )

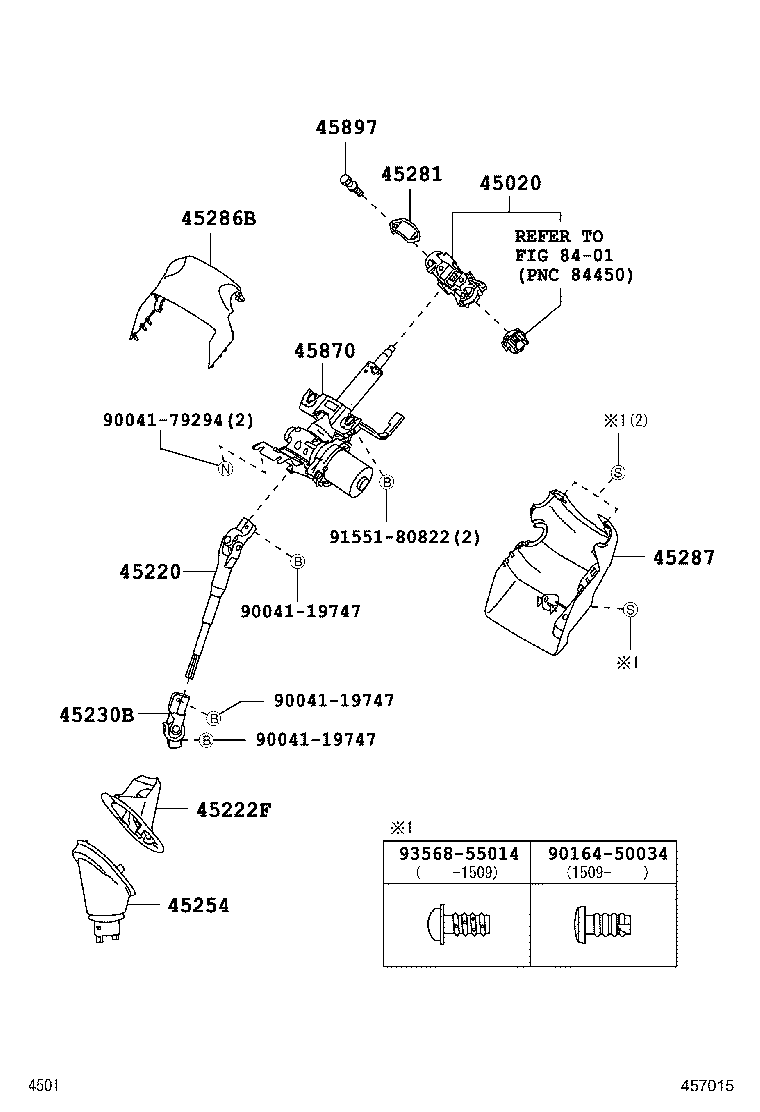

Click highlighted areas on diagram

Part #	Description	Period	Qty
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-B2320	LA300,310	04/2012 - 07/2013	1
00000-00000	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,該当品番なｵ	04/2012 - 07/2013	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B2170	LA300,310	04/2012 - 07/2013	1
45222F - COVER, DUST
45222-B2120	LA300,310	04/2012 - 07/2013	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B2092	LA300,310	08/2012 - 07/2013	1
45290-B2090	LA300,310	04/2012 - 07/2012	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B2110	LA300,310	04/2012 - 07/2013	1
45281 - HOUSING, STEERING COLUMN
45281-B2050	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
45281-B2040	LA300,310	04/2012 - 07/2013	1
45286B - COVER, STEERING COLUMN, UPR
45286-B2180B0	LA300,310 DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45287 - COVER, STEERING COLUMN, LWR
45287-B2260B0	LA300,310..D,L,LF,X,XF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45287-B2270B0	LA300,310..G,GF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45870 - TUBE ASSY, STEERING COLUMN
45870-B2420	LA300,310..G,GF	04/2012 - 07/2013	1
45870-B2400	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
45870-B2430	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
45897 - BOLT, STEERING LOCK SET
45897-B2010	LA300,310	04/2012 - 07/2013	2
45897-B5010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
Common parts
90041-19747
90041-79294
90164-50034
91551-80822
93568-55014
Linked diagrams
8401

(1204- )G,GF

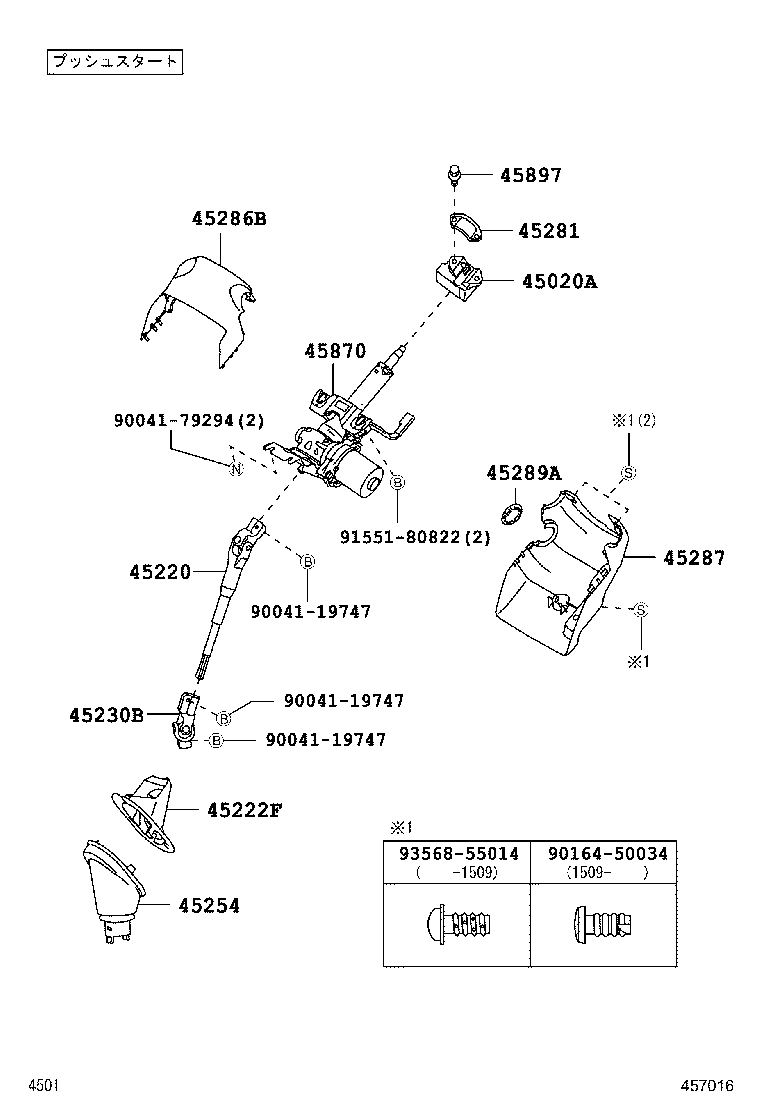

Click highlighted areas on diagram

ﾌﾟｯｼｭｽﾀｰﾄ

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-B2340	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B2170	LA300,310	04/2012 - 07/2013	1
45222F - COVER, DUST
45222-B2120	LA300,310	04/2012 - 07/2013	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B2092	LA300,310	08/2012 - 07/2013	1
45290-B2090	LA300,310	04/2012 - 07/2012	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B2110	LA300,310	04/2012 - 07/2013	1
45281 - HOUSING, STEERING COLUMN
45281-B2050	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
45281-B2040	LA300,310	04/2012 - 07/2013	1
45286B - COVER, STEERING COLUMN, UPR
45286-B2180B0	LA300,310 DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45287 - COVER, STEERING COLUMN, LWR
45287-B2260B0	LA300,310..D,L,LF,X,XF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45287-B2270B0	LA300,310..G,GF DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45289A - SUPPORT, STEERING COLUMN COVER
45289-B2030B1	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,DK.GRAY,TRIM1#	04/2012 - 07/2013	1
45870 - TUBE ASSY, STEERING COLUMN
45870-B2420	LA300,310..G,GF	04/2012 - 07/2013	1
45870-B2400	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
45870-B2430	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
45897 - BOLT, STEERING LOCK SET
45897-B2010	LA300,310	04/2012 - 07/2013	2
45897-B5010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
Common parts
90041-19747
90041-79294
90164-50034
91551-80822
93568-55014

LA300A-GBDF (2012)

(1204- )

(1204- )G,GF
