LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

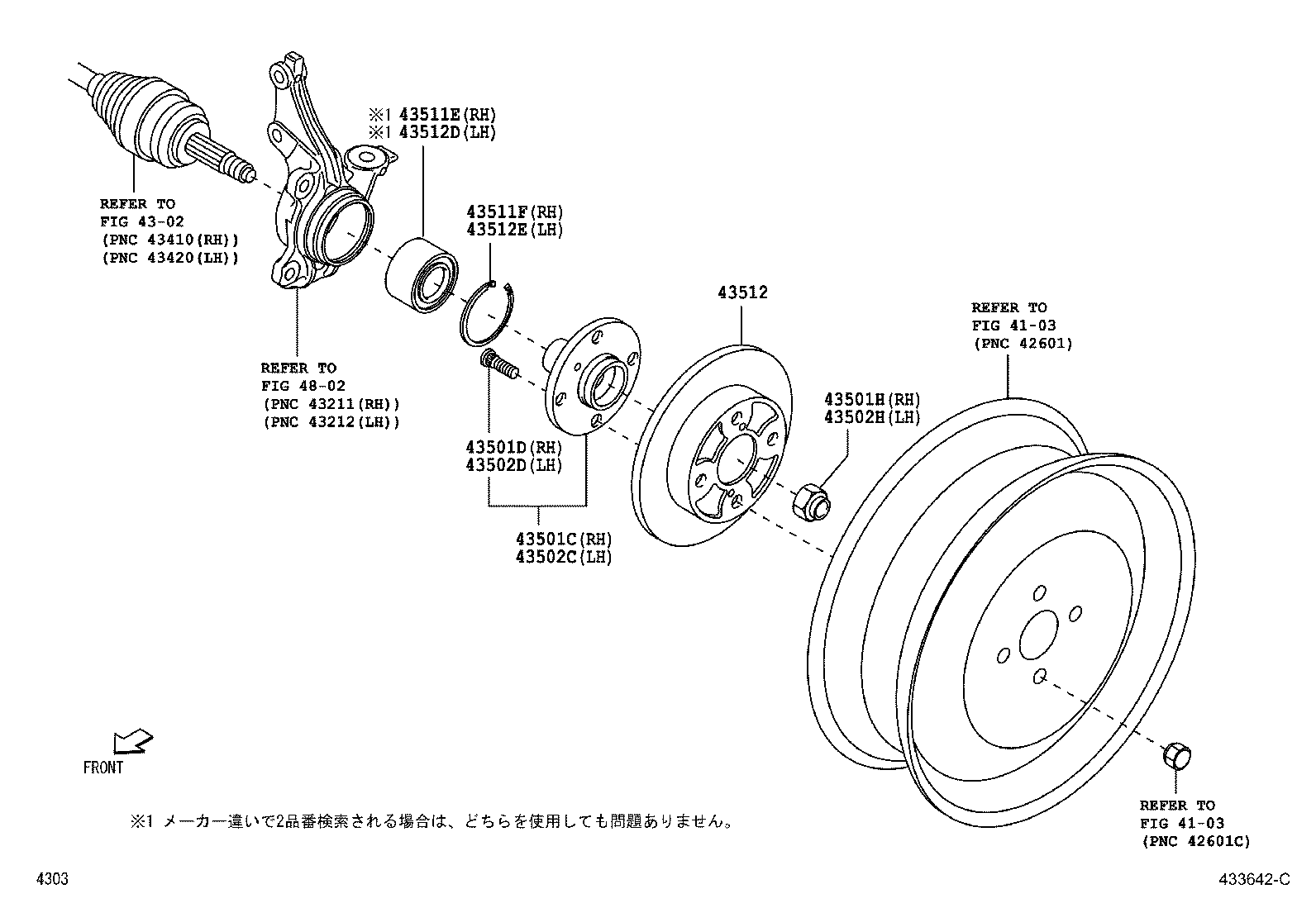

Click highlighted areas on diagram

diagram 4103 4103 4302 43501C 43501D 43501H 43502C 43502D 43502H 43511E 43511F 43512 43512D 43512E 4802
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-B5020

LA300,310

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90049-12056

LA300,310

M12,L=39

 4
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90041-79274

LA300,310

M20

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-B5020

LA300,310

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90049-12056

LA300,310

M12,L=39

 4
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90041-79274

LA300,310

M20

 1
43511E - BEARING (FOR FRONT AXLE HUB RH)
43560-B2030

LA300,310

KOYO JTEKT

 1
43560-B2020

LA300,310

NTN

 1
43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90045-21163

LA300,310

 1
43512 - DISC, FRONT
43512-B2130

LA300,310

塗装有り(単品)

 2
43512D - BEARING (FOR FRONT AXLE HUB LH)
43560-B2020

LA300,310

NTN

 1
43560-B2030

LA300,310

KOYO JTEKT

 1
43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90045-21163

LA300,310

 1
