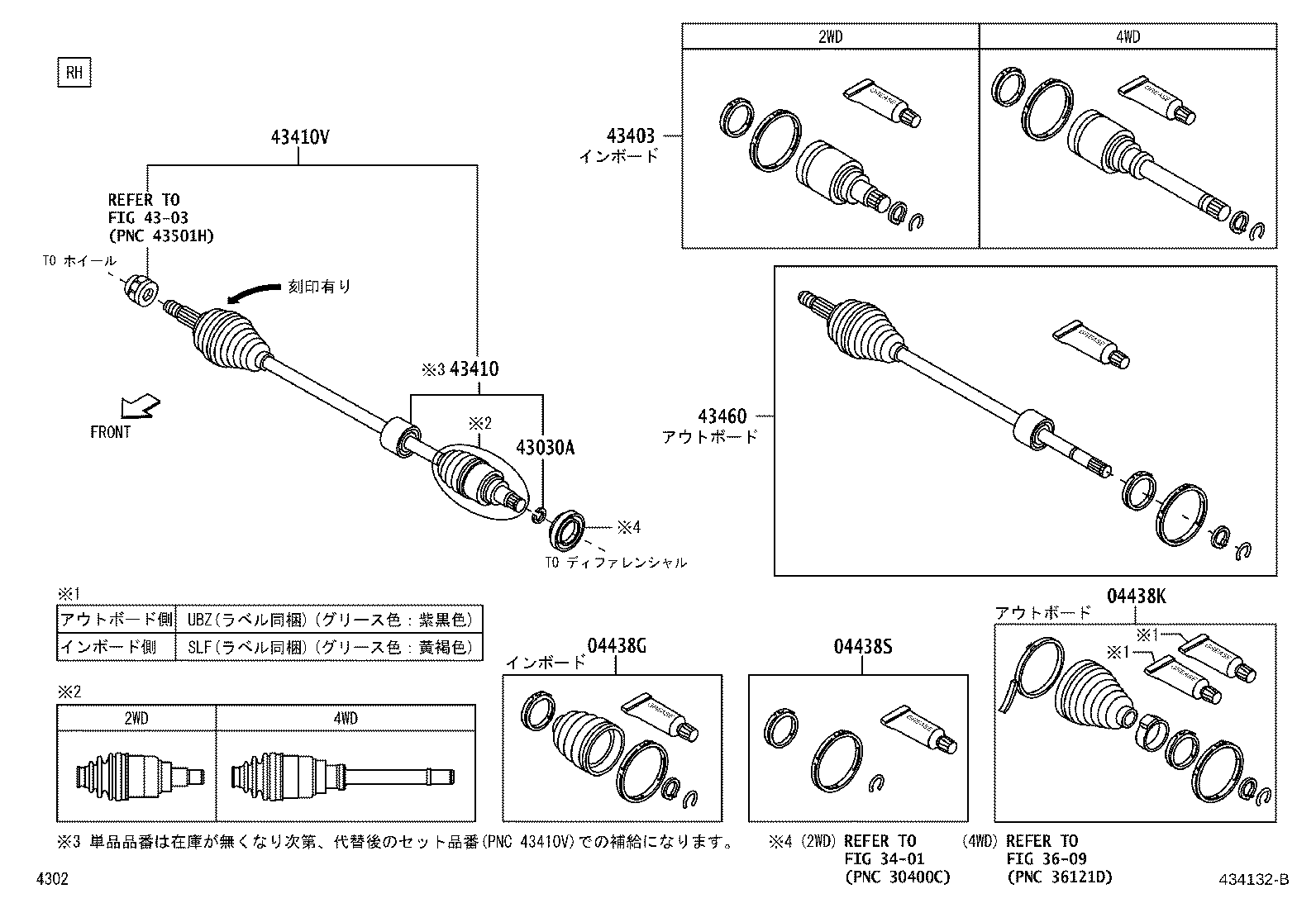

Toyota Pixis epoch LA300A FRONT DRIVE SHAFT

Part #	Description	Period	Qty
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-B2300	LA300,310	04/2012 - 07/2013	1
04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
04425-B2200	LA300,310	04/2012 - 07/2013	1
04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH
04435-B2310	LA300,310	04/2012 - 07/2013	1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90045-20232	LA300,310	04/2012 - 07/2013	2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43408-B9450	LA300	04/2012 - 07/2013	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-B2380	LA300 ｼﾞｪｲﾃｸﾄ	04/2012 - 07/2013	1
43410V - SHAFT SET, FRONT DRIVE, RH
43410-B9640	LA300	04/2012 - 07/2013	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43411-B9370	LA300	04/2012 - 07/2013	1
Linked diagrams
3401
3609
4303

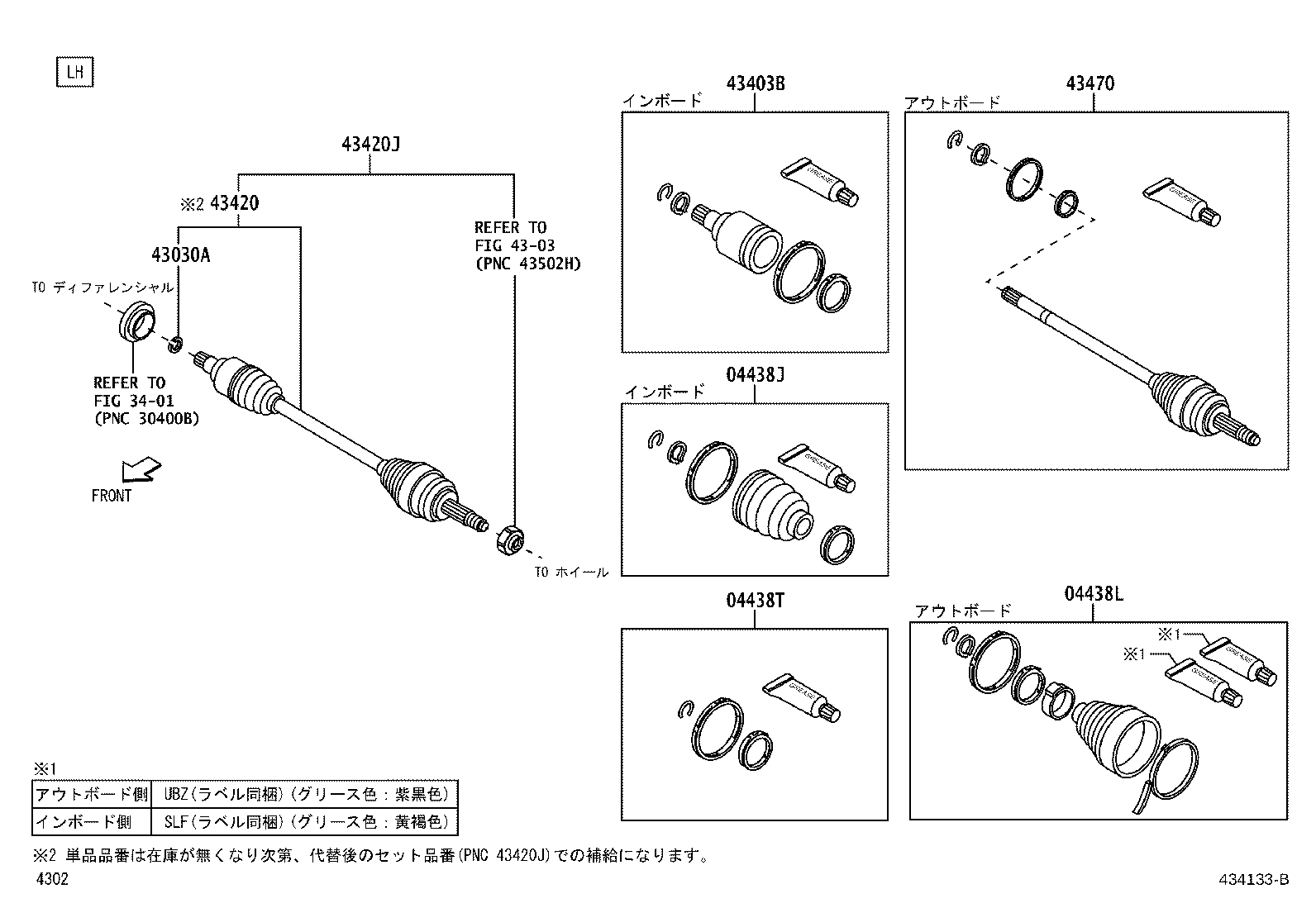

Part #	Description	Period	Qty
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-B2300	LA300,310	04/2012 - 07/2013	1
04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH
04425-B2200	LA300,310	04/2012 - 07/2013	1
04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH
04435-B2310	LA300,310	04/2012 - 07/2013	1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90045-20232	LA300,310	04/2012 - 07/2013	2
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43408-B9450	LA300,310	04/2012 - 07/2013	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-B2190	LA300,310	04/2012 - 07/2013	1
43420J - SHAFT SET, FRONT DRIVE, LH
43420-B9600	LA300,310	04/2012 - 07/2013	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43412-B9200	LA300,310	04/2012 - 07/2013	1
Linked diagrams
3401
4303

LA300A-GBDF (2012)
