4103 - DISC WHEEL & WHEEL CAP

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

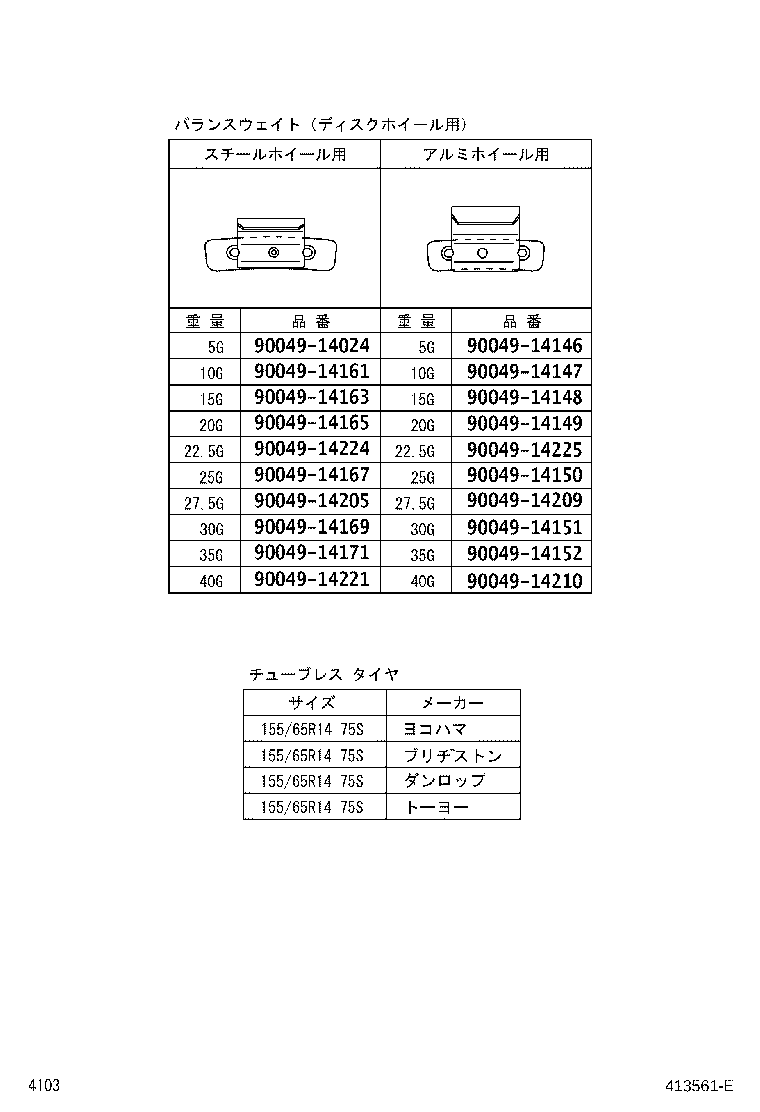

ILLUST NO. 3 OF 3(1204- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90049-14024
90049-14146
90049-14147
90049-14148
90049-14149
90049-14150
90049-14151
90049-14152
90049-14161
90049-14163
90049-14165
90049-14167
90049-14169
90049-14171
90049-14205
90049-14209
90049-14210
90049-14221
90049-14224
90049-14225

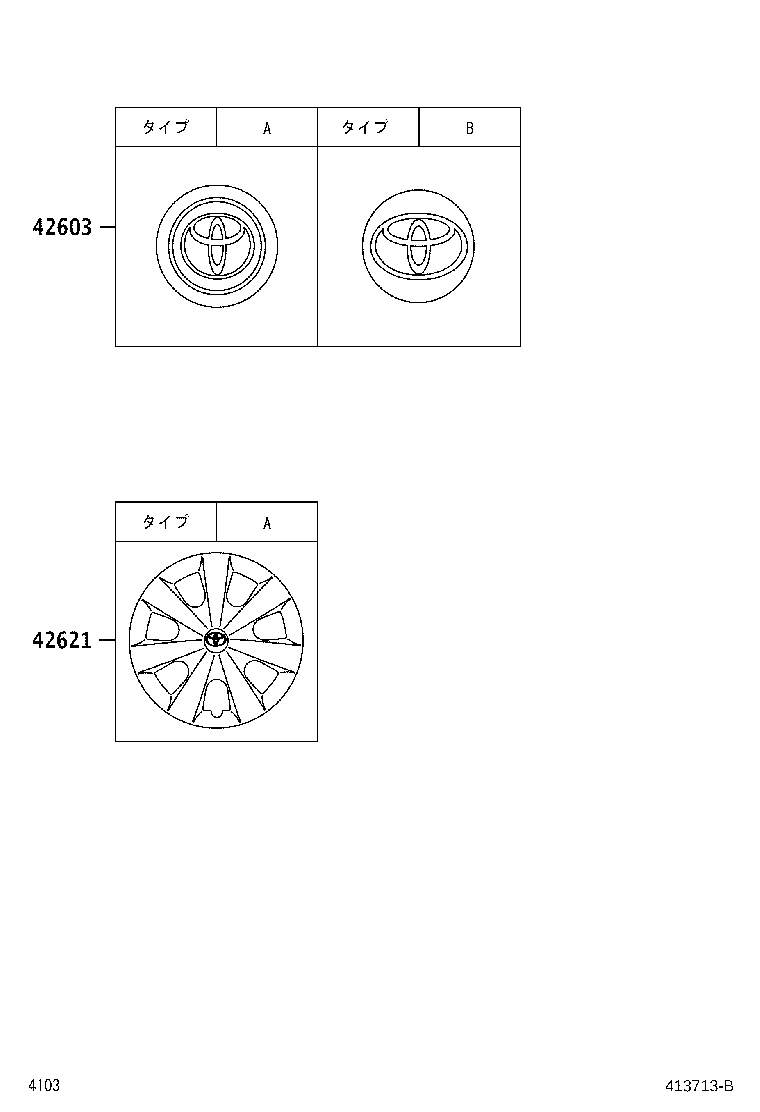

ILLUST NO. 2 OF 3(1204- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-B1090	LA300..G *ALU(SILVER),ﾀｲﾌﾟ B	04/2012 - 07/2013	4
42638-B1060	LA300..D *STE,ﾀｲﾌﾟ A	04/2012 - 05/2012	4
42638-B1030	LA300..D *STE,ﾀｲﾌﾟ A	06/2012 - 07/2013	4
42621 - CAP, WHEEL
42602-B2240	LA300,310..GF,L,LF,X,XF ﾀｲﾌﾟ A	04/2012 - 03/2013	4
42602-B2241	LA300,310..GF,L,LF,X,XF ﾀｲﾌﾟ A	04/2013 - 07/2013	4

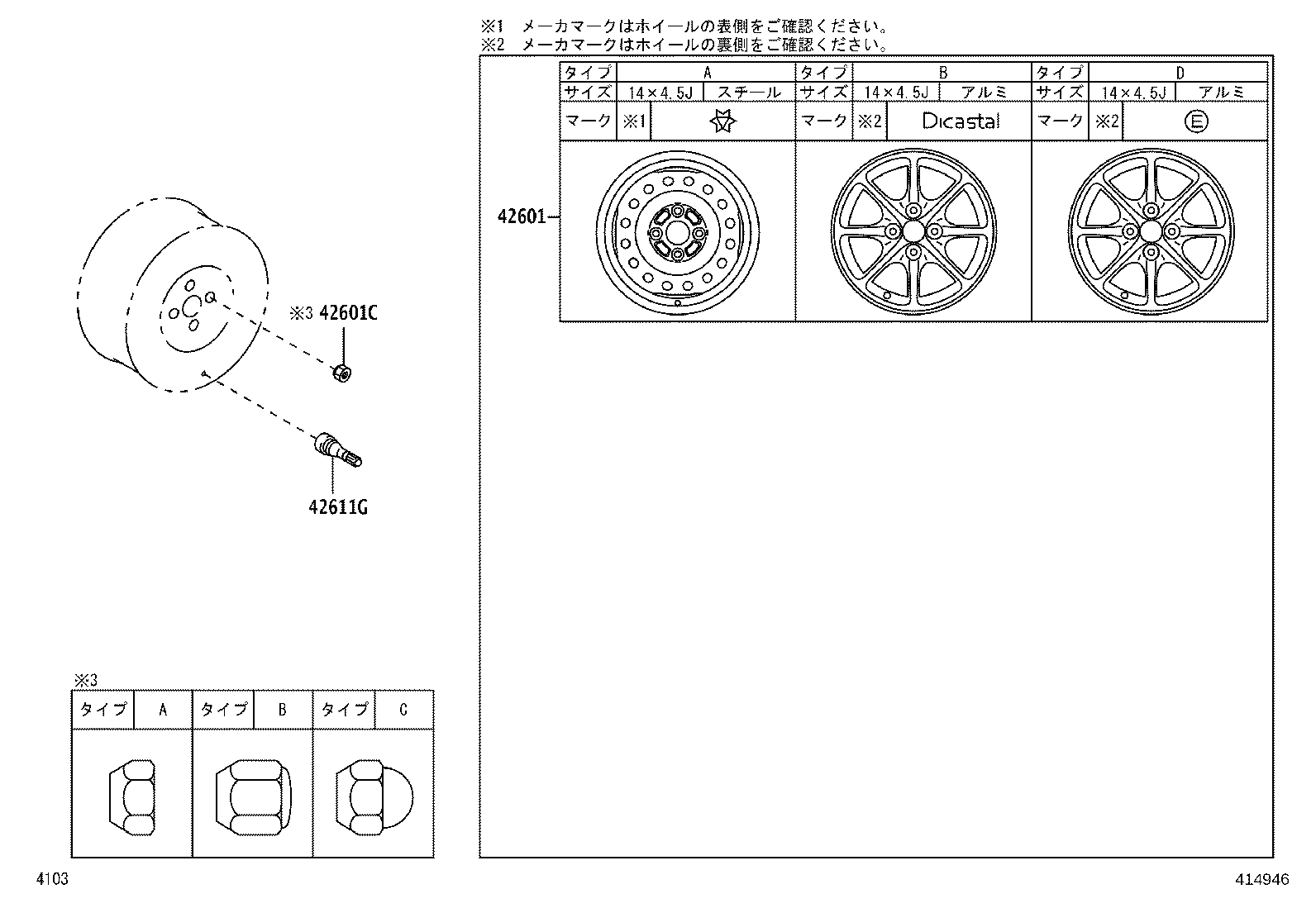

ILLUST NO. 1 OF 3(1204- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42601 - WHEEL, DISC
42611-B2671	LA300..G 14×4.5J,ｱﾙﾐ,ｼﾙﾊﾞｰ,ﾀｲﾌﾟ D	04/2013 - 07/2013	4
42611-B2380	LA300,310..GF,L,LF,X,XF 14×4.5J,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A ﾌﾞﾗｯｸ	04/2012 - 07/2013	4
42611-BW020	LA300..G 14×4.5J,ｱﾙﾐ,ｼﾙﾊﾞｰ,ﾀｲﾌﾟ B	04/2012 - 05/2013	4
42611-BW021	LA300..G 14×4.5J,ｱﾙﾐ,ｼﾙﾊﾞｰ,ﾀｲﾌﾟ B	06/2013 - 07/2013	4
42611-B2430	LA300..D 14×4.5J,ｽﾁｰﾙ,ｼﾙﾊﾞｰ,TYPE A ｼﾙﾊﾞｰ	04/2012 - 07/2013	4
42601C - NUT, HUB (FOR AXLE)
90049-11070	LA300..G TYPE B M12	04/2012 - 07/2013	16
90049-11073	LA300..D TYPE C M12	04/2012 - 07/2013	16
90049-11036	LA300,310..GF,L,LF,X,XF TYPE A M12	04/2012 - 07/2013	16
42611G - VALVE (FOR TUBELESS TIRE)
90049-02019	LA300,310	04/2012 - 07/2013	4
