LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )LA300

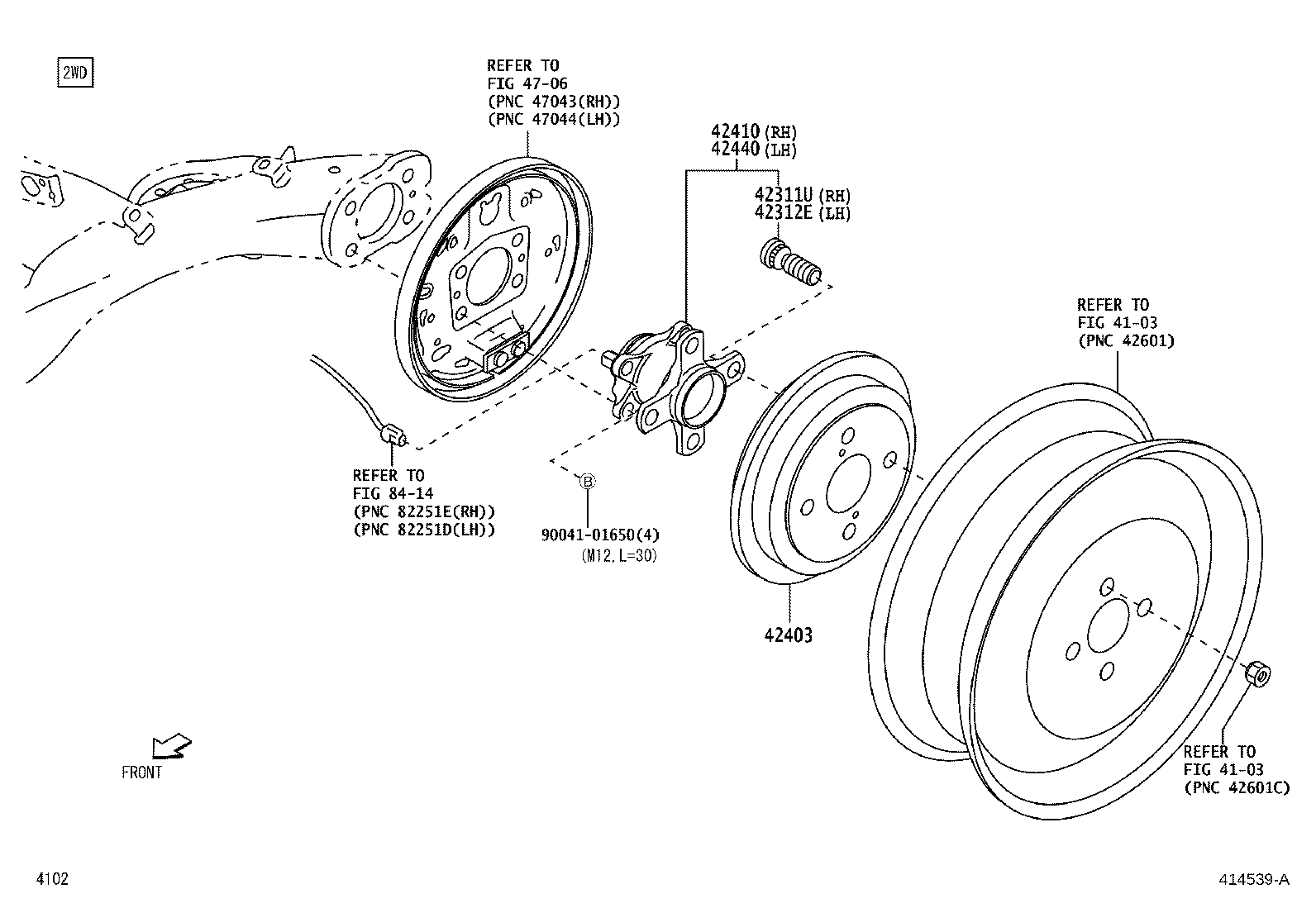

Click highlighted areas on diagram

2WD

diagram 4103 4103 42311U 42312E 42403 42410 42440 4706 8414 9004101650
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90049-12062

LA300

M12,L=34

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90049-12062

LA300

M12,L=34

 4
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-B2070

LA300

 2
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-B2100

LA300

ｾﾝｻｰ付き

 1
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-B2100

LA300

ｾﾝｻｰ付き

 1
Common parts
90041-01650
Linked diagrams
4103
4706
8414
