LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1307)

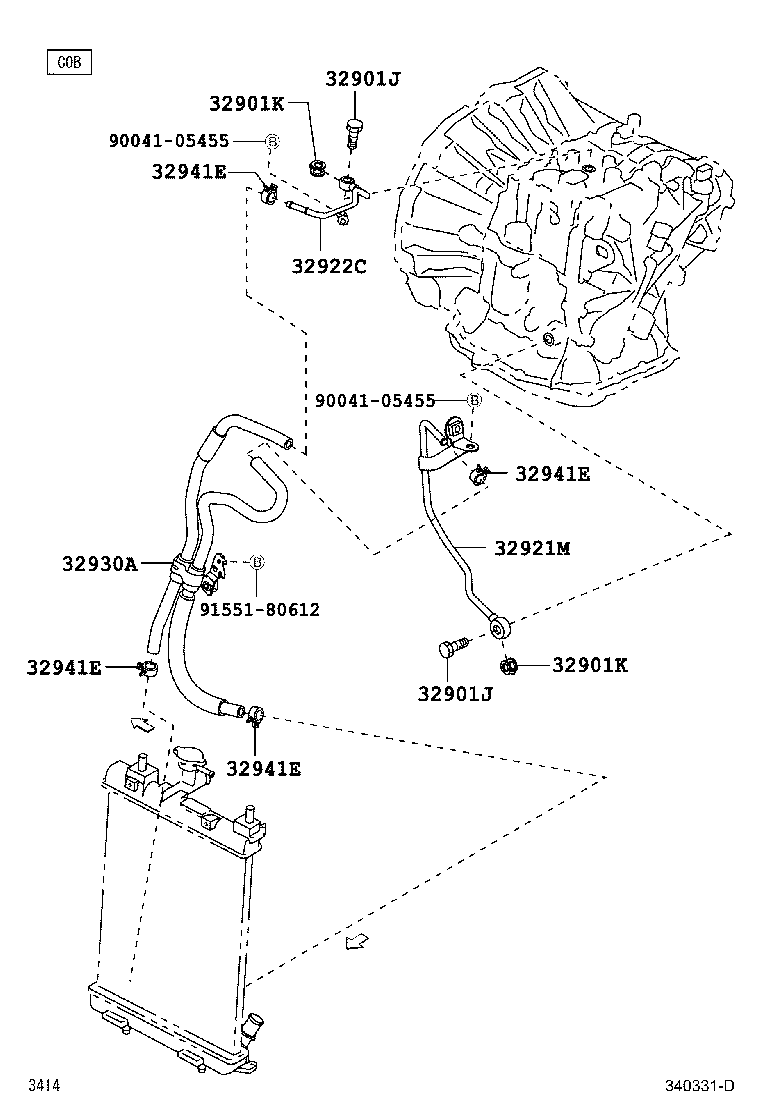

Click highlighted areas on diagram

C0B

diagram 32901J 32901J 32901K 32901K 32921M 32922C 32930A 32941E 32941E 32941E 32941E 9004105455 9004105455 9155180612
Part # Description Qty Price
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01081

LA300,310

 2
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01081

LA300,310

 2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329

LA300,310

 2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329

LA300,310

 2
32921M - TUBE, OIL COOLER INLET, NO.1
32904-B2040

LA300,310

 1
32922C - TUBE, OIL COOLER OUTLET, NO.1
32905-B2070

LA300,310

 1
32930A - HOSE ASSY, TRANSMISSION OIL COOLER
32940-B2080

LA300,310

 1
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

LA300,310

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

LA300,310

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

LA300,310

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

LA300,310

 4
Common parts
90041-05455
91551-80612
