LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

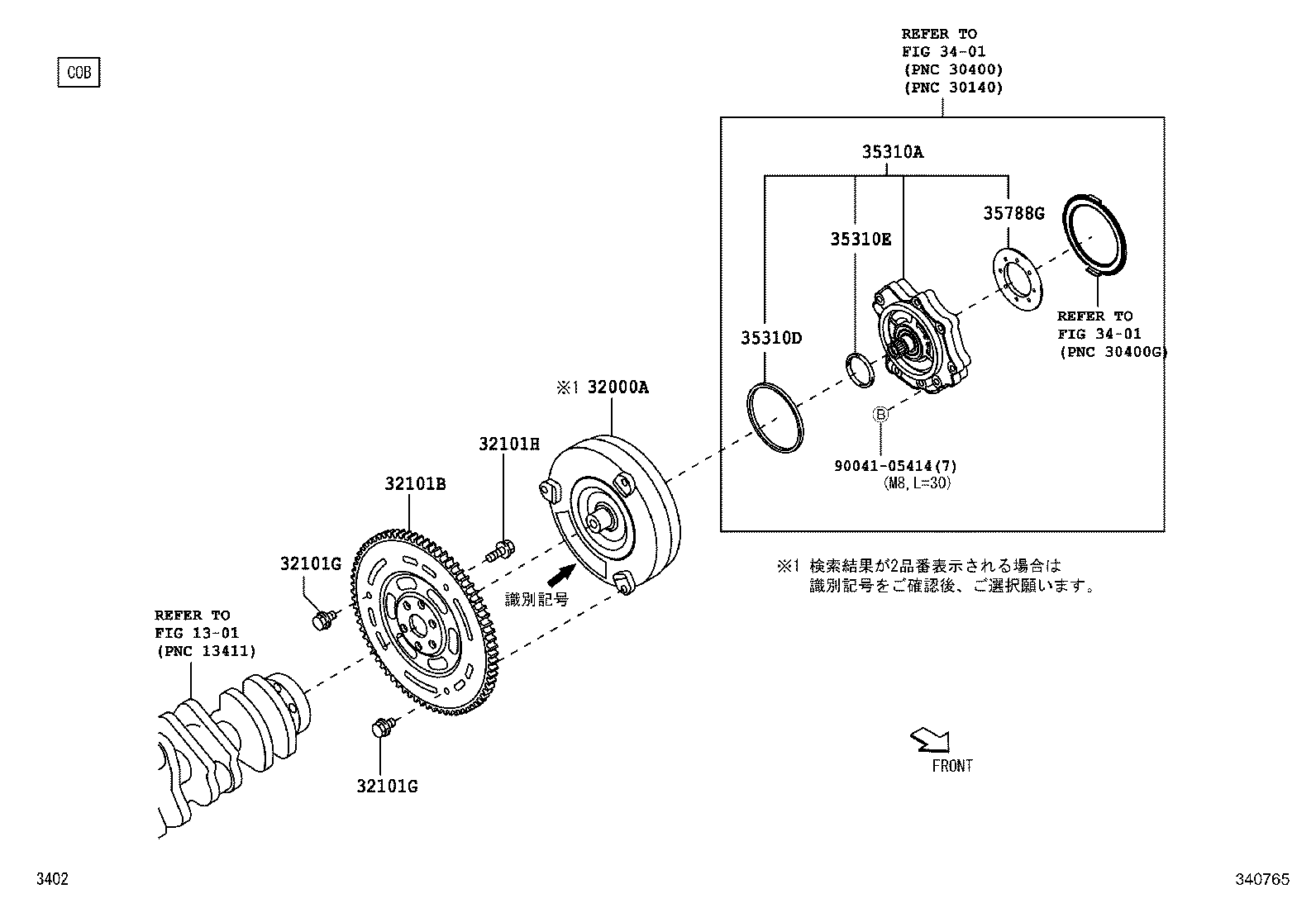

Click highlighted areas on diagram

C0B

diagram 1301 32000A 32101B 32101G 32101G 32101H 3401 3401 35310A 35310D 35310E 35788G 9004105414
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-B2190

LA300

識別記号=NA4

 1
32000-B2180

LA300

識別記号=NA5

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-B2021

LA300,310

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05280

LA300,310

M8,L=9.5,ｼﾙﾊﾞｰ(M8,L=9.5)

 1
90041-05281

LA300,310

M8,L=9.5,ﾌﾞﾗｯｸ(M8,L=9.5)

 2
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05280

LA300,310

M8,L=9.5,ｼﾙﾊﾞｰ(M8,L=9.5)

 1
90041-05281

LA300,310

M8,L=9.5,ﾌﾞﾗｯｸ(M8,L=9.5)

 2
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90048-01037

LA300,310

M10,L=19.5

 6
35310A - PUMP ASSY, FRONT OIL
35310-B9050

LA300,310

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90043-01332

LA300,310

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
90043-11423

LA300,310

 1
35788G - RACE, THRUST BEARING
35789-B2060

LA300,310

厚さ=0.8

 1
35789-B2100

LA300,310

厚さ=1.6

 1
35789-B2080

LA300,310

厚さ=1.2

 1
35789-B2110

LA300,310

厚さ=1.8

 1
35789-B2070

LA300,310

厚さ=1.0

 1
35789-B2090

LA300,310

厚さ=1.4

 1
Common parts
90041-05414
Linked diagrams
1301
3401
