LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

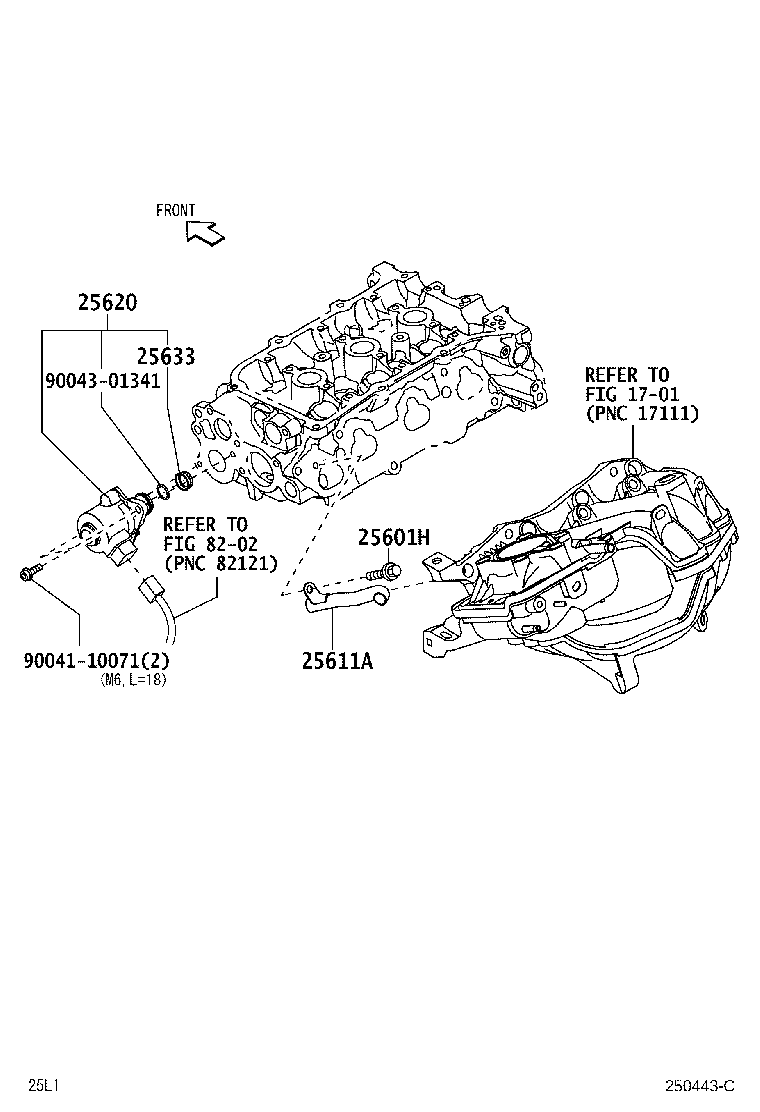

Click highlighted areas on diagram

diagram 1701 25601H 25611A 25620 25633 8202 9004110071 9004301341
Part # Description Qty Price
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90119-06984

KFVE..LA300,310

M6,L=12

 1
25611A - PIPE, EGR, NO.1
25611-B2010

KFVE..LA300,310

 1
25620 - VALVE ASSY, EGR
25620-B2011

KFVE..LA300,310

 1
25633 - GASKET, EGR VALVE
25633-B2020

KFVE..LA300,310

 1
Common parts
90041-10071
90043-01341
Linked diagrams
1701
8202
