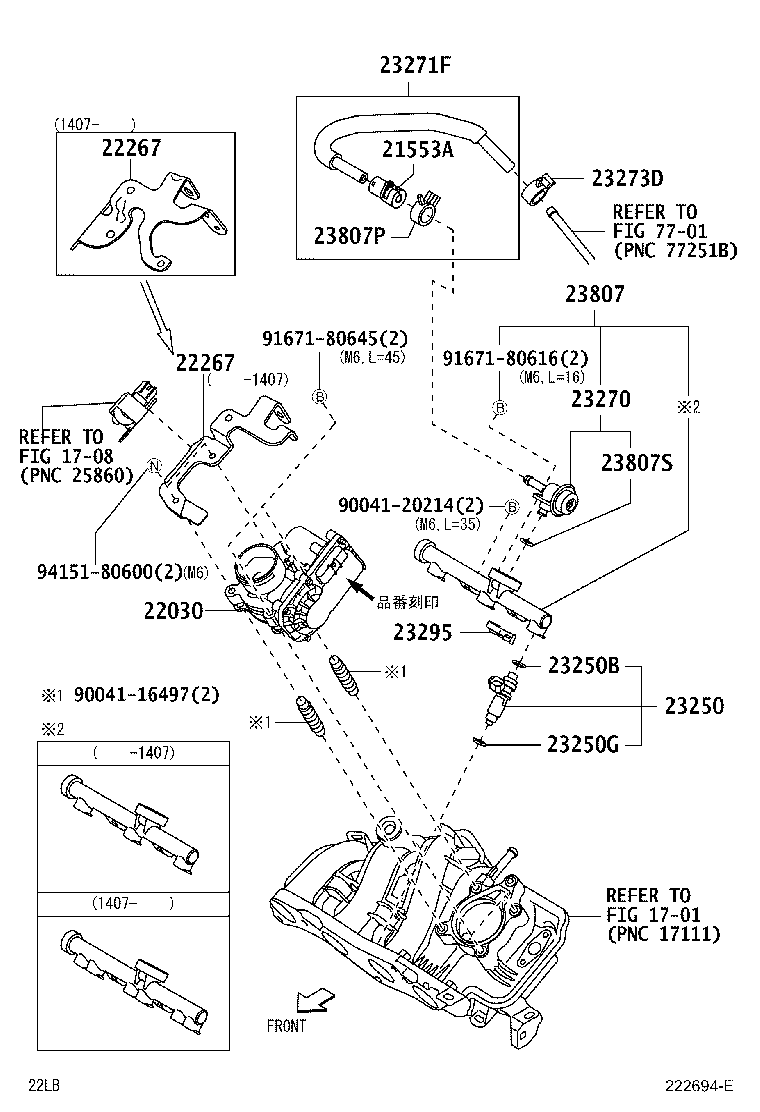

Toyota Pixis epoch LA300A FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
21553A - GUIDE, FUEL MAIN
21553-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
22267 - BRACKET, THROTTLE BODY
58239-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
22267 - BRACKET, THROTTLE BODY
58239-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
23250 - INJECTOR ASSY, FUEL
23250-B2050	KFVE..LA300,310	04/2012 - 07/2013	3
23250B - RING, O(FOR FUEL INJECTOR)
90043-01349	KFVE..LA300,310	04/2012 - 07/2013	3
23250G - RING, O, NO.2(FOR FUEL INJECTOR)
90043-01348	KFVE..LA300,310	04/2012 - 07/2013	3
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
23271F - HOSE, FUEL
77260-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
23273D - CLIP(FOR FUEL HOSE NO.2)
90044-67400	KFVE..LA300,310	04/2012 - 07/2013	1
23295 - HOLDER, INJECTOR, NO.1
23295-B2020	KFVE..LA300,310	04/2012 - 07/2013	3
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
23807P - CLIP(FOR FUEL HOSE)
90044-67400	KFVE..LA300,310	04/2012 - 07/2013	1
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90043-01353	KFVE..LA300,310	04/2012 - 07/2013	1
Common parts
90041-16497
90041-20214
91671-80616
91671-80645
94151-80600
Linked diagrams
1701
1708
7701

LA300A-GBDF (2012)
