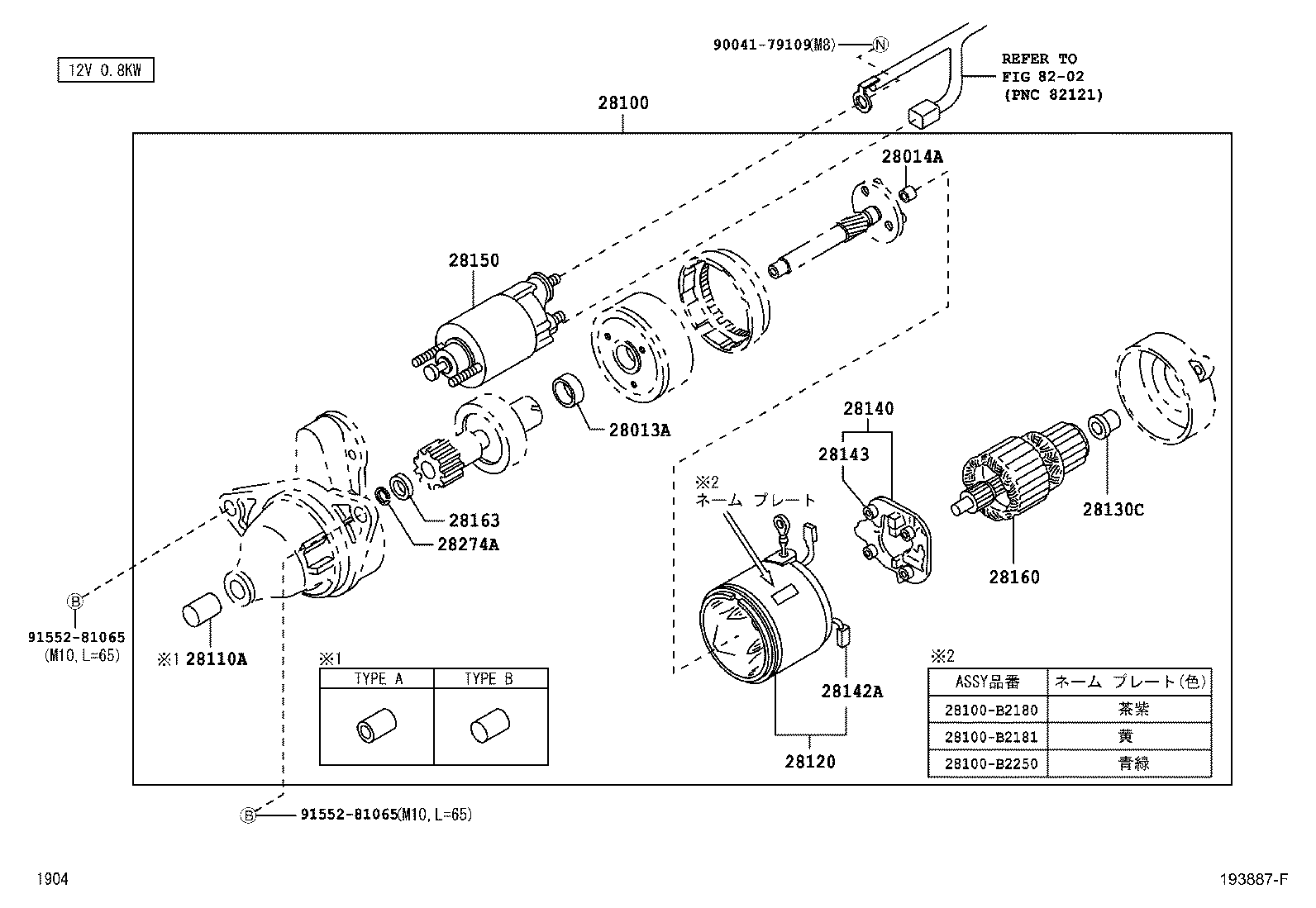

Toyota Pixis epoch LA300A STARTER

Part #	Description	Period	Qty
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181	KFVE..LA300,310	04/2012 - 07/2013	1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180	KFVE..LA300,310	04/2012 - 07/2013	1
28100 - STARTER ASSY
28100-B2180	KFVE..LA300,310 12V 0.8KW	04/2012 - 10/2012	1
28100-B2181	KFVE..LA300,310 12V 0.8KW	11/2012 - 07/2013	1
28110A - BEARING(FOR STARTER HOUSING)
9004C-03001	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 07/2013	1
28277-87201	KFVE..LA300,310 ﾀｲﾌﾟ B	04/2012 - 07/2013	1
28120 - YOKE ASSY, STARTER
28120-B2130	KFVE..LA300,310	04/2012 - 07/2013	1
28130C - BEARING, STARTER FLANGE
90099-10183	KFVE..LA300,310	04/2012 - 07/2013	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-B2130	KFVE..LA300,310	04/2012 - 07/2013	1
28142A - STARTER KIT
28142-97501	KFVE..LA300,310	04/2012 - 07/2013	2
28143 - SPRING, STARTER BRUSH
28143-87202	KFVE..LA300,310	04/2012 - 07/2013	4
28150 - SWITCH ASSY, MAGNET STARTER
28226-B2180	KFVE..LA300,310 ASSY,NO.28100B2180	04/2012 - 11/2012	1
28226-B2090	KFVE..LA300,310 ASSY,NO.28100B2181	11/2012 - 07/2013	1
28160 - ARMATURE ASSY, STARTER
28160-87207	KFVE..LA300,310	04/2012 - 07/2013	1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-87202	KFVE..LA300,310	04/2012 - 07/2013	1
28274A - SNAP RING, STARTER, NO.2
28274-87503	KFVE..LA300,310	04/2012 - 07/2013	1
Common parts
90041-79109
91552-81065
Linked diagrams
8202

LA300A-GBDF (2012)
