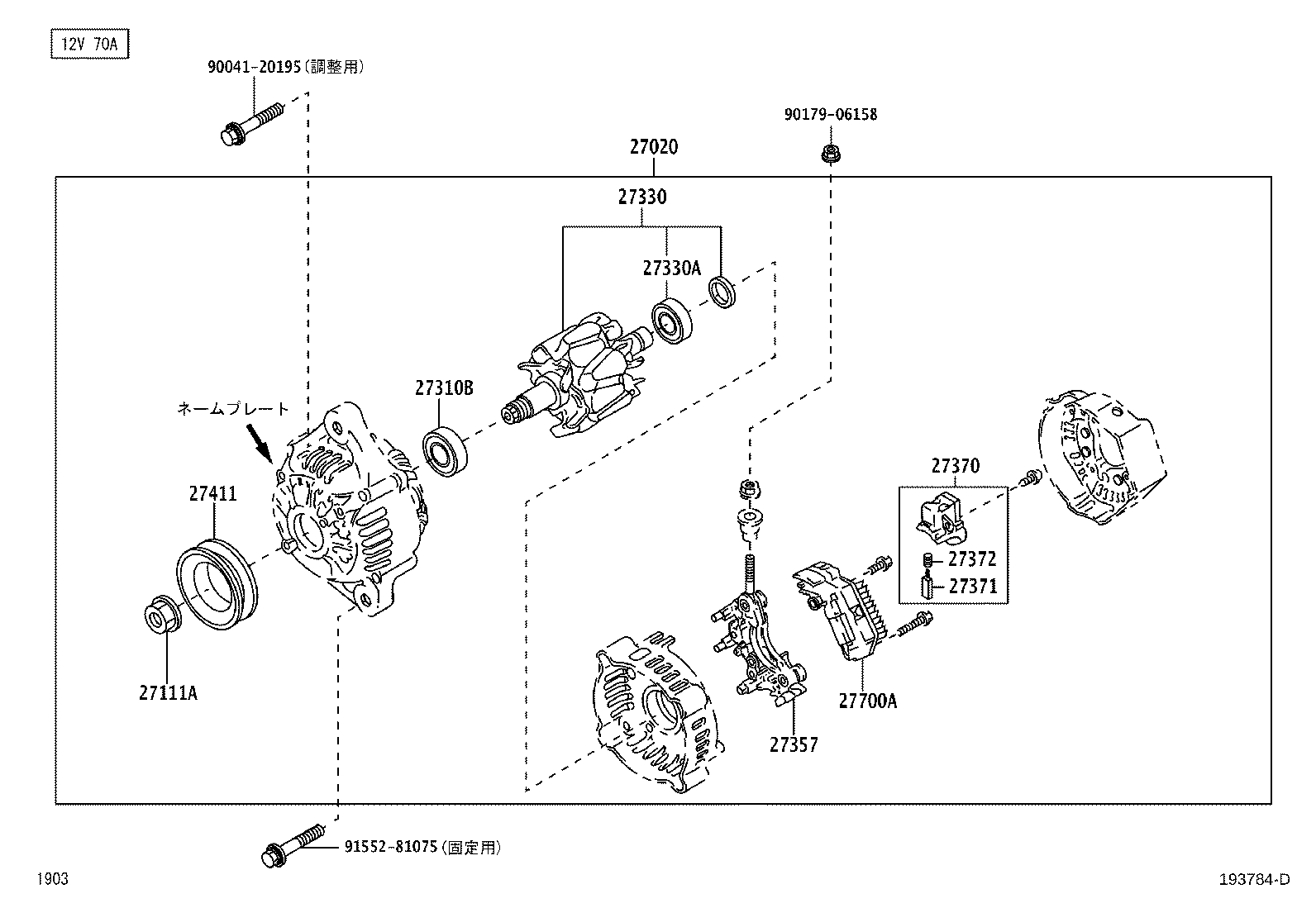

Toyota Pixis epoch LA300A ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-B2070	KFVE..LA300,310 12V 70A	04/2012 - 07/2013	1
27111A - NUT, ALTERNATOR
90099-05171	KFVE..LA300,310	04/2012 - 07/2013	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004C-37002	KFVE..LA300,310	04/2012 - 07/2013	1
27330 - ROTOR ASSY, ALTERNATOR
27330-87716	KFVE..LA300,310	04/2012 - 07/2013	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87708	KFVE..LA300,310	04/2012 - 07/2013	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
27371 - BRUSH, ALTERNATOR
27371-87501	KFVE..LA300,310	04/2012 - 07/2013	2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501	KFVE..LA300,310	04/2012 - 07/2013	2
27411 - PULLEY, ALTERNATOR
27411-97202	KFVE..LA300,310	04/2012 - 07/2013	1
27700A - REGULATOR ASSY, GENERATOR
27700-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
Common parts
90041-20195
90179-06158
91552-81075

LA300A-GBDF (2012)
