LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

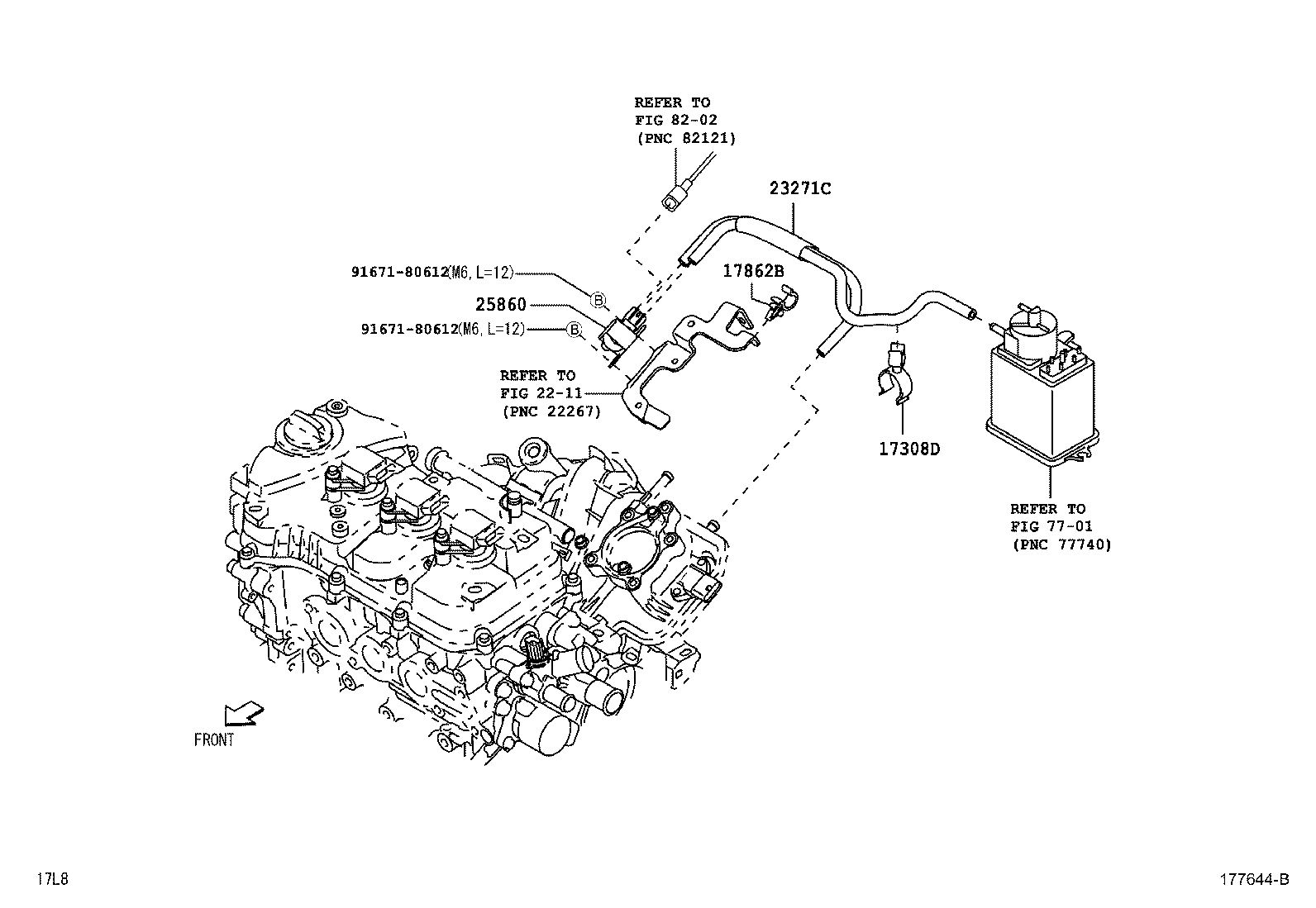

Click highlighted areas on diagram

diagram 17308D 17862B 2211 23271C 25860 7701 8202 9167180612 9167180612
Part # Description Qty Price
17308D - CLAMP, NO.2(FOR VACUUM HOSE)
90044-64831

KFVE..LA300,310

 1
17862B - CLAMP, HOSE
90044-64779

KFVE..LA300,310

 1
23271C - HOSE, FUEL
77795-B2050

KFVE..LA300,310

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
89470-B1020

KFVE..LA300,310

 1
Common parts
91671-80612
Linked diagrams
2211
7701
8202
