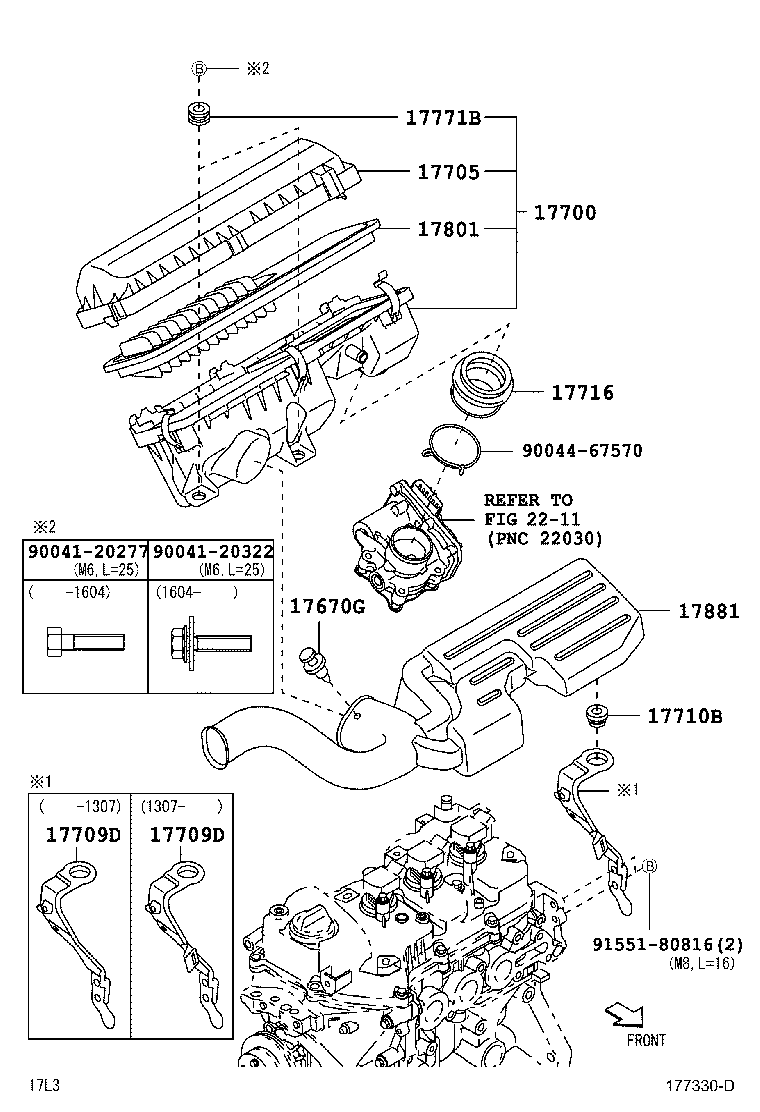

Toyota Pixis epoch LA300A AIR CLEANER

Part #	Description	Period	Qty
17670G - CLIP(FOR AIR HOSE NO.1)
90044-67568	KFVE..LA300,310	04/2012 - 07/2013	1
17700 - CLEANER ASSY, AIR
17700-B2170	KFVE..LA300,310	04/2012 - 07/2013	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-B2130	KFVE..LA300,310	04/2012 - 07/2013	1
17709D - BRACKET, AIR CLEANER INLET, NO.1
53763-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
17709D - BRACKET, AIR CLEANER INLET, NO.1
53763-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
17710B - GROMMET
90044-80598	KFVE..LA300,310	04/2012 - 07/2013	1
17716 - SUPPORT,AIR CLEANER CAP
17716-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80653	KFVE..LA300,310	04/2012 - 07/2013	2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-B2090	KFVE..LA300,310	04/2012 - 07/2013	1
17881 - HOSE, AIR CLEANER, NO.1
17881-B2110	KFVE..LA300,310	04/2012 - 07/2013	1
Common parts
90041-20277
90041-20322
90044-67570
91551-80816
Linked diagrams
2211

LA300A-GBDF (2012)
