Toyota Pixis epoch LA300A MANIFOLD

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

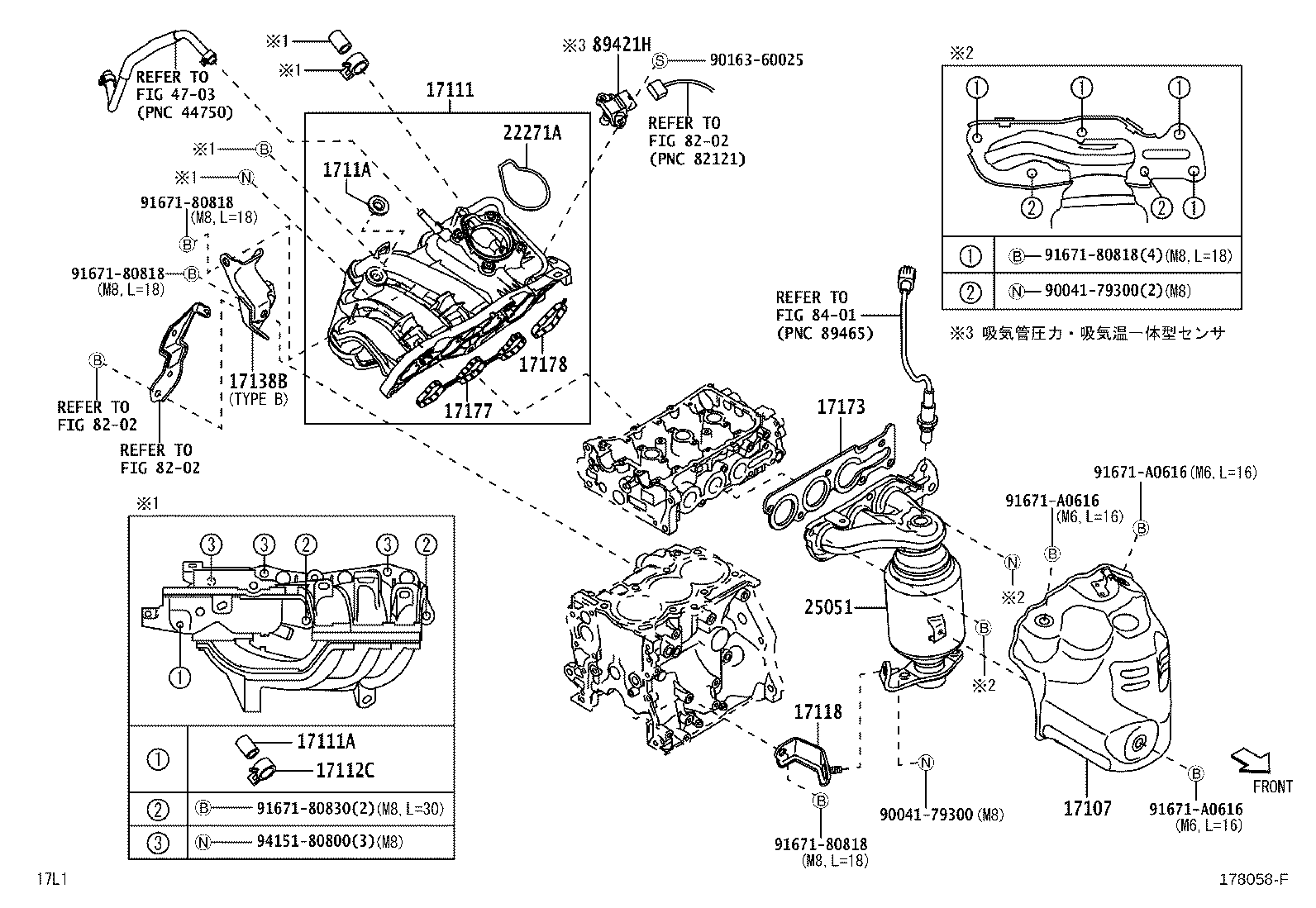

Click highlighted areas on diagram

Part #	Description	Period	Qty
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
17111 - MANIFOLD, INTAKE
17120-B2090	KFVE..LA300,310	04/2012 - 07/2013	1
17111A - PLUG, NO.1
90043-39029	KFVE..LA300,310	04/2012 - 07/2013	1
17112C - CLIP(FOR INTAKE MANIFOLD)
90044-67220	KFVE..LA300,310	04/2012 - 07/2013	1
17118 - STAY, MANIFOLD
17118-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
1711A - GROMMET
90044-80676	KFVE..LA300,310	04/2012 - 07/2013	1
17138B - STAY, INTAKE MANIFOLD
17138-B2050	KFVE..LA300,310 ﾀｲﾌﾟ B	05/2013 - 07/2013	1
17138-B2040	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 05/2013	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-B2053	KFVE..LA300,310 ﾀｲﾌﾟ B	08/2012 - 04/2013	1
17173-B2052	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 08/2012	1
17173-B2054	KFVE..LA300,310	05/2013 - 07/2013	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
22271A - GASKET, THROTTLE BODY
22271-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-B2311	KFVE..LA300,310	04/2012 - 07/2012	1
25051-B2312	KFVE..LA300,310	08/2012 - 07/2013	1
89421H - SENSOR, VACUUM
89421-B2010	LA300,310	04/2012 - 07/2013	1
Common parts
90041-79300
90163-60025
91671-80818
91671-80822
91671-80830
91671-A0616
94151-80800
Linked diagrams
4703
8202
8401

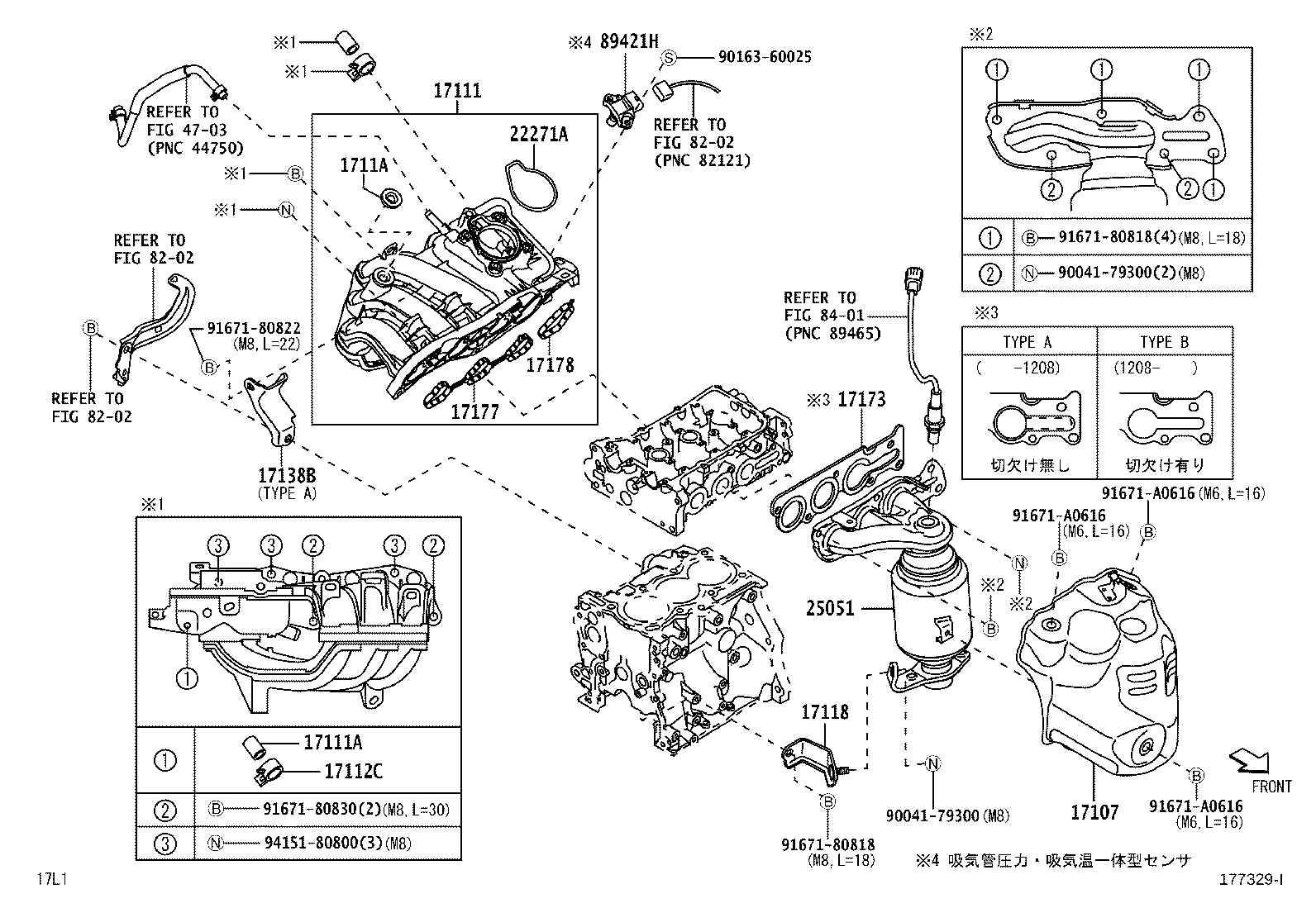

Click highlighted areas on diagram

Part #	Description	Period	Qty
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
17111 - MANIFOLD, INTAKE
17120-B2090	KFVE..LA300,310	04/2012 - 07/2013	1
17111A - PLUG, NO.1
90043-39029	KFVE..LA300,310	04/2012 - 07/2013	1
17112C - CLIP(FOR INTAKE MANIFOLD)
90044-67220	KFVE..LA300,310	04/2012 - 07/2013	1
17118 - STAY, MANIFOLD
17118-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
1711A - GROMMET
90044-80676	KFVE..LA300,310	04/2012 - 07/2013	1
17138B - STAY, INTAKE MANIFOLD
17138-B2050	KFVE..LA300,310 ﾀｲﾌﾟ B	05/2013 - 07/2013	1
17138-B2040	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 05/2013	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-B2053	KFVE..LA300,310 ﾀｲﾌﾟ B	08/2012 - 04/2013	1
17173-B2052	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 08/2012	1
17173-B2054	KFVE..LA300,310	05/2013 - 07/2013	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
22271A - GASKET, THROTTLE BODY
22271-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-B2311	KFVE..LA300,310	04/2012 - 07/2012	1
25051-B2312	KFVE..LA300,310	08/2012 - 07/2013	1
89421H - SENSOR, VACUUM
89421-B2010	LA300,310	04/2012 - 07/2013	1
Common parts
90041-79300
90163-60025
91671-80818
91671-80830
91671-A0616
94151-80800
Linked diagrams
4703
8202
8401
