Toyota Pixis epoch LA300A RADIATOR & WATER OUTLET

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

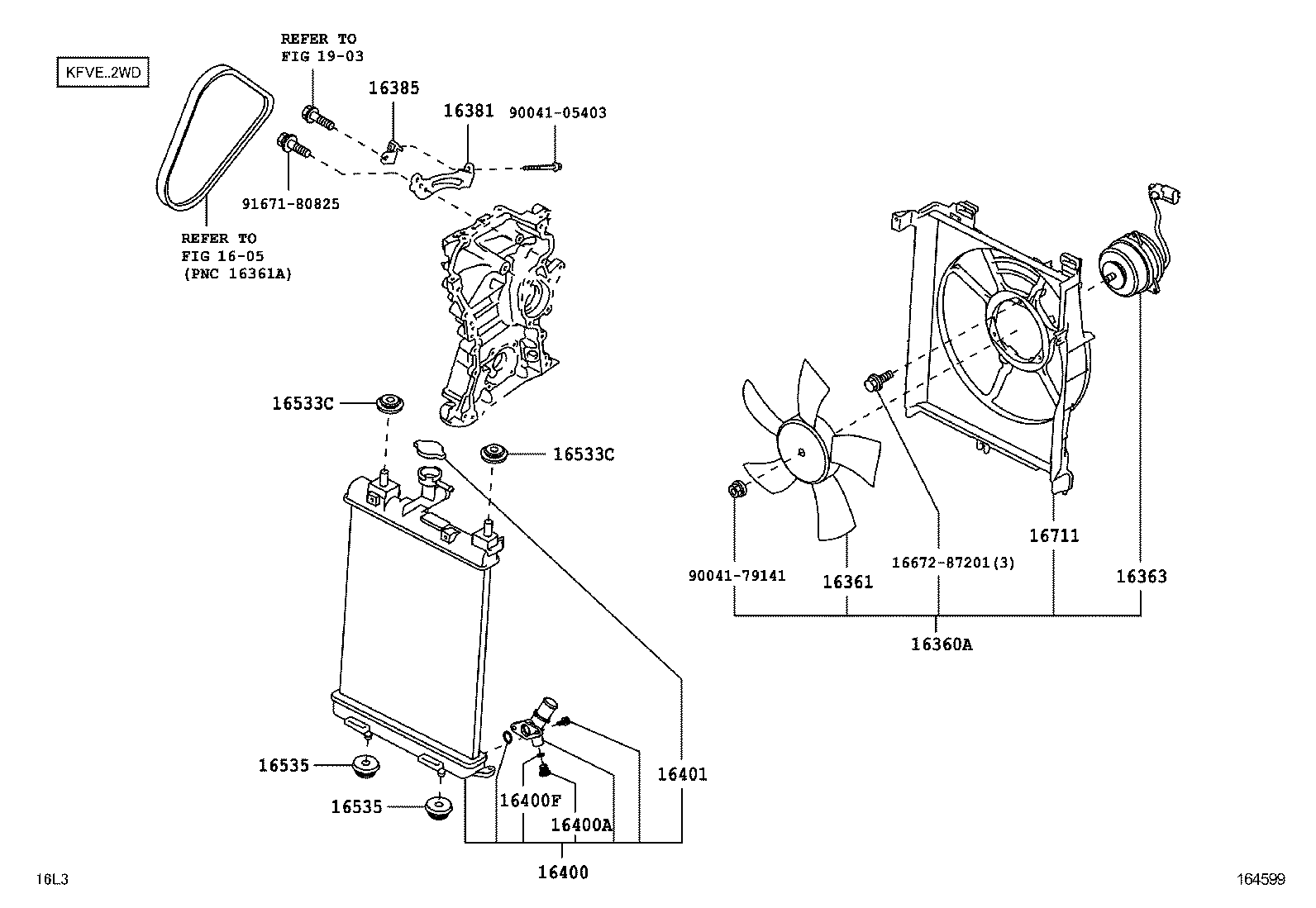

ﾗｼﾞｴｰﾀ(2WD)

Part #	Description	Period	Qty
16360A - FAN ASSY, W/MOTOR
16360-B2151	KFVE..LA300	04/2012 - 07/2013	1
16361 - FAN
16361-B2060	KFVE..LA300,310	04/2012 - 07/2013	1
16363 - MOTOR, COOLING FAN
16363-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
16381 - BAR, FAN BELT ADJUSTING
16381-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
16385 - SLIDER, FAN BELT ADJUSTING
16385-B2021	KFVE..LA300,310	04/2012 - 07/2013	1
16400 - RADIATOR ASSY
16400-B2131	KFVE..LA300	04/2012 - 07/2013	1
16400A - COCK SUB-ASSY, RADIATOR DRAIN
16417-B2010	KFVE..LA300	04/2012 - 07/2013	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16442-97201	KFVE..LA300	04/2012 - 07/2013	1
16401 - CAP SUB-ASSY, RADIATOR
16401-87211	KFVE..LA300	04/2012 - 07/2013	1
16533C - GROMMET(FOR RADIATOR SUPPORT)
90044-80621	KFVE..LA300,310	04/2012 - 07/2013	2
16533C - GROMMET(FOR RADIATOR SUPPORT)
90044-80621	KFVE..LA300,310	04/2012 - 07/2013	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80592	KFVE..LA300,310	04/2012 - 07/2013	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80592	KFVE..LA300,310	04/2012 - 07/2013	2
16711 - SHROUD, FAN
16711-B2090	KFVE..LA300	04/2012 - 07/2013	1
Common parts
16672-87201
90041-05403
90041-79141
91671-80825
Linked diagrams
1605
1903

Click highlighted areas on diagram

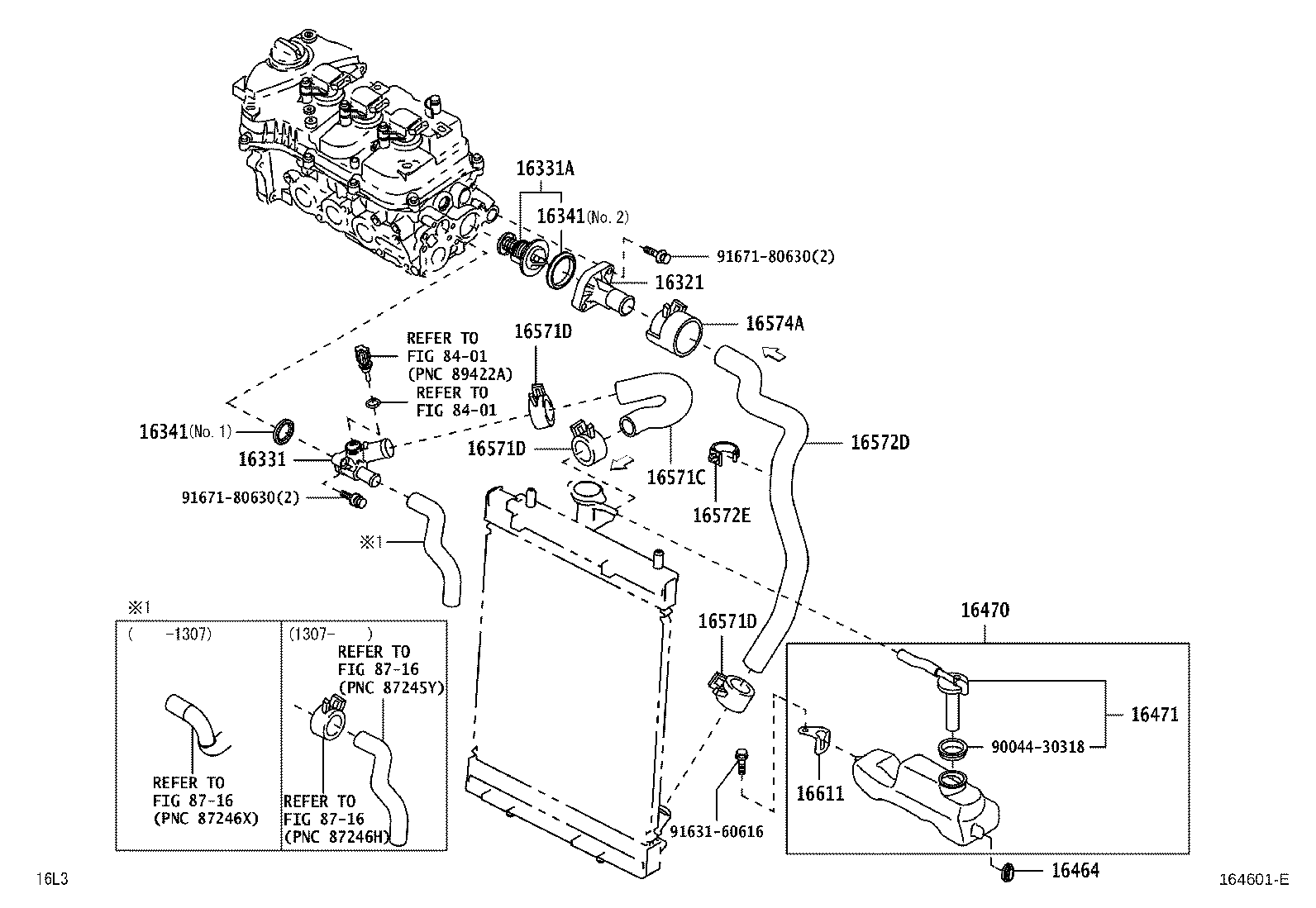

ﾎｰｽ

Part #	Description	Period	Qty
16321 - INLET, WATER
16321-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
16331 - OUTLET, WATER
16331-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
16331A - THERMOSTAT
16340-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
16341 - GASKET, WATER OUTLET
16341-B2010	KFVE..LA300,310 NO.2	04/2012 - 07/2013	1
16341-B2040	KFVE..LA300,310 NO.1	04/2012 - 07/2013	1
16341 - GASKET, WATER OUTLET
16341-B2010	KFVE..LA300,310 NO.2	04/2012 - 07/2013	1
16341-B2040	KFVE..LA300,310 NO.1	04/2012 - 07/2013	1
16464 - BUSH, TANK LOWER
16464-97201	KFVE..LA300,310	04/2012 - 07/2013	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-B2041	KFVE..LA300,310	04/2012 - 07/2013	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-B2041	KFVE..LA300,310	04/2012 - 07/2013	1
16571C - HOSE, RADIATOR, NO.1
16571-B2120	KFVE..LA300,310 長さ=215 外径=31 内径=24	04/2012 - 07/2013	1
16571D - CLIP, RADIATOR HOSE, NO.1
90044-67387	KFVE..LA300,310	04/2012 - 07/2013	3
16571D - CLIP, RADIATOR HOSE, NO.1
90044-67387	KFVE..LA300,310	04/2012 - 07/2013	3
16571D - CLIP, RADIATOR HOSE, NO.1
90044-67387	KFVE..LA300,310	04/2012 - 07/2013	3
16572D - HOSE, RADIATOR, NO.2
16572-B2100	KFVE..LA300,310 長さ=604 外径=31 内径=24	04/2012 - 07/2013	1
16572E - CLIP, RADIATOR HOSE, NO.2
90044-64884	KFVE..LA300,310	04/2013 - 07/2013	1
90044-64801	KFVE..LA300,310	04/2012 - 03/2013	1
16574A - CLIP, RADIATOR HOSE, NO.4
90044-66040	KFVE..LA300,310	04/2012 - 07/2013	1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-B2050	KFVE..LA300,310	04/2012 - 07/2013	1
Common parts
90044-30318
91631-60616
91671-80630
Linked diagrams
8401
8716
