LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

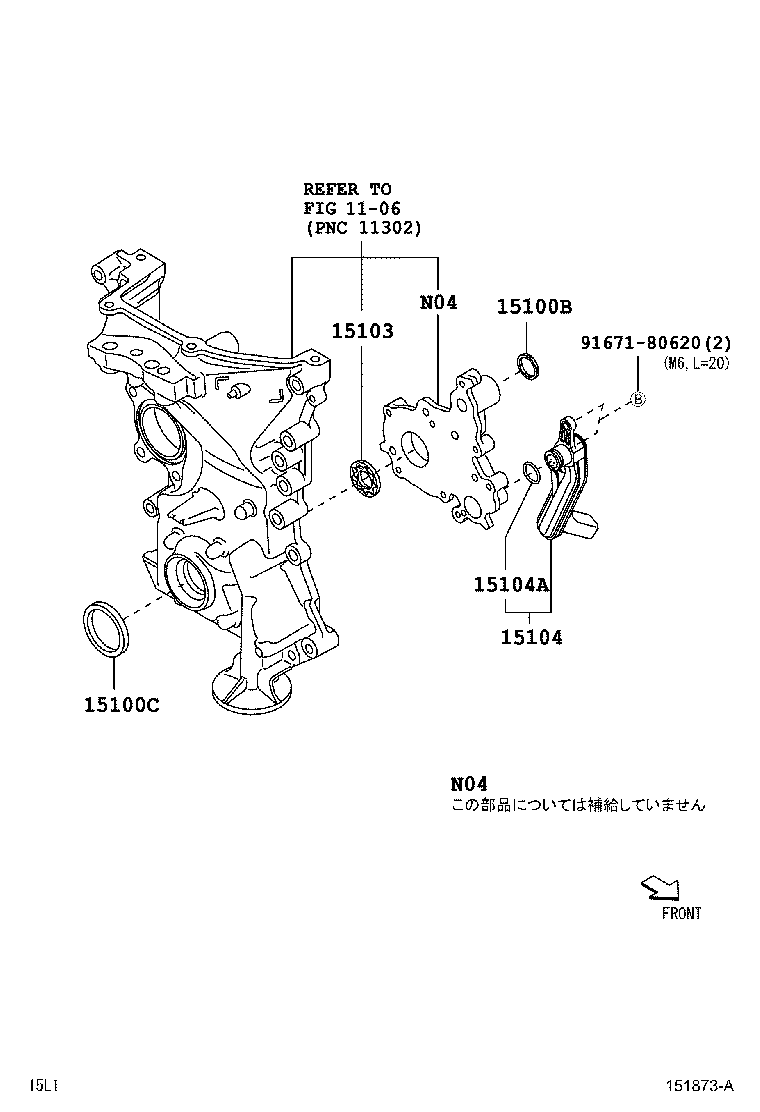

Click highlighted areas on diagram

diagram 1106 15100B 15100C 15103 15104 15104A 9167180620
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90043-01325

KFVE..LA300,310

 1
15100C - SEAL(FOR OIL PUMP)
90043-11424

KFVE..LA300,310

 1
15103 - GEAR SET, OIL PUMP
15103-B2011

KFVE..LA300,310

 1
15104 - STRAINER SUB-ASSY, OIL
15104-B2011

KFVE..LA300,310

 1
15104A - RING, O(FOR OIL STRAINER)
90043-01324

KFVE..LA300,310

 1
Common parts
91671-80620
Linked diagrams
1106
