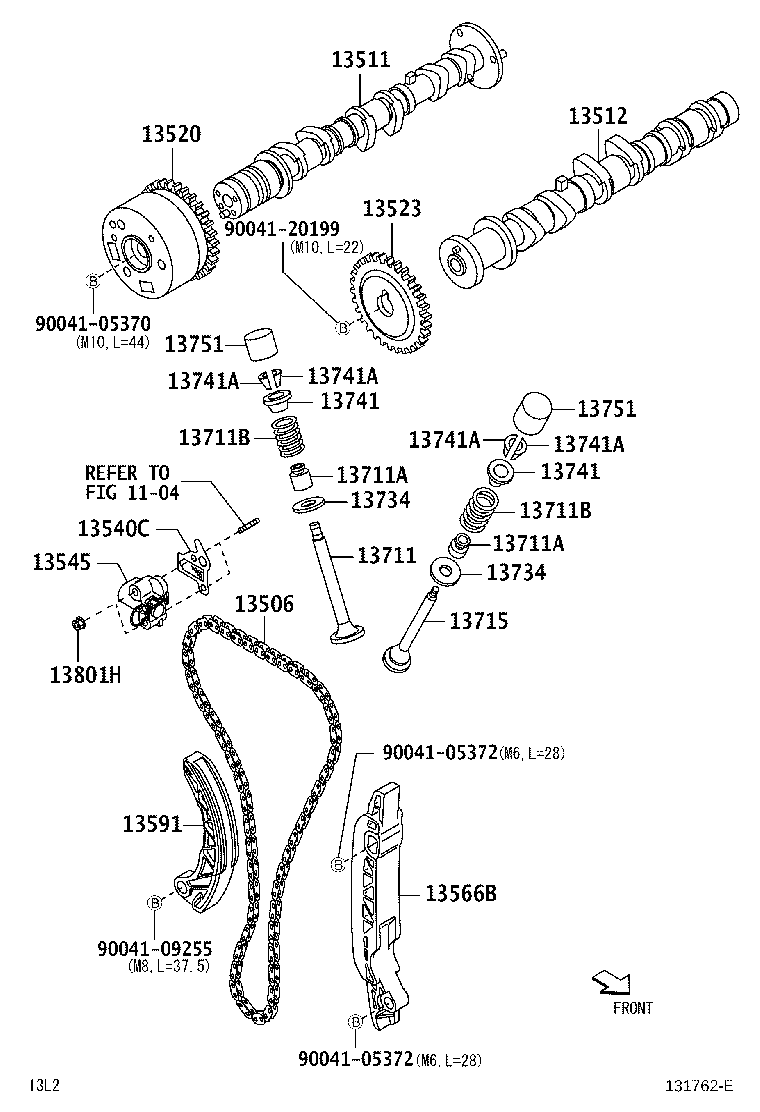

Toyota Pixis epoch LA300A CAMSHAFT & VALVE

Part #	Description	Period	Qty
13506 - CHAIN SUB-ASSY
13506-B2060	KFVE..LA300,310	04/2012 - 07/2013	1
13511 - CAMSHAFT
13501-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
13512 - CAMSHAFT, NO.2
13502-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
13520 - SPROCKET ASSY, CAMSHAFT TIMING
13520-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
13545 - PLUNGER, CHAIN TENSIONER
13545-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
13566B - GUIDE, TIMING CHAIN
13566-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
13591 - ARM, TIMING CHAIN TENSION
13591-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
13711 - VALVE, INTAKE
13711-B2010	KFVE..LA300,310	04/2012 - 07/2013	6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90048-12030	KFVE..LA300,310	04/2012 - 07/2013	12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90048-12030	KFVE..LA300,310	04/2012 - 07/2013	12
13711B - SPRING, COMPRESSION(FOR INNER)
90045-01933	KFVE..LA300,310 識別ﾍﾟｲﾝﾄ=黄	04/2012 - 07/2013	12
90045-01934	KFVE..LA300,310 識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ	04/2012 - 07/2013	12
13711B - SPRING, COMPRESSION(FOR INNER)
90045-01933	KFVE..LA300,310 識別ﾍﾟｲﾝﾄ=黄	04/2012 - 07/2013	12
90045-01934	KFVE..LA300,310 識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ	04/2012 - 07/2013	12
13715 - VALVE, EXHAUST
13715-B2010	KFVE..LA300,310	04/2012 - 07/2013	6
13734 - SEAT, VALVE SPRING
13734-B2011	KFVE..LA300,310	04/2012 - 07/2013	12
13734 - SEAT, VALVE SPRING
13734-B2011	KFVE..LA300,310	04/2012 - 07/2013	12
13741 - RETAINER, VALVE SPRING
13741-B2010	KFVE..LA300,310	04/2012 - 07/2013	12
13741 - RETAINER, VALVE SPRING
13741-B2010	KFVE..LA300,310	04/2012 - 07/2013	12
13741A - LOCK, VALVE SPRING RETAINER
90048-13015	KFVE..LA300,310	04/2012 - 07/2013	24
13741A - LOCK, VALVE SPRING RETAINER
90048-13015	KFVE..LA300,310	04/2012 - 07/2013	24
13741A - LOCK, VALVE SPRING RETAINER
90048-13015	KFVE..LA300,310	04/2012 - 07/2013	24
13741A - LOCK, VALVE SPRING RETAINER
90048-13015	KFVE..LA300,310	04/2012 - 07/2013	24
13751 - LIFTER, VALVE
13751-B203018	KFVE..LA300,310 MARK18	04/2012 - 07/2013	12
13751-B203016	KFVE..LA300,310 MARK16	04/2012 - 07/2013	12
13751-B203010	KFVE..LA300,310 MARK10	04/2012 - 07/2013	12
13751-B203022	KFVE..LA300,310 MARK22	04/2012 - 07/2013	12
13751-B203024	KFVE..LA300,310 MARK24	04/2012 - 07/2013	12
13751-B203008	KFVE..LA300,310 MARK8	04/2012 - 07/2013	12
13751-B203006	KFVE..LA300,310 MARK6	04/2012 - 07/2013	12
13751-B203032	KFVE..LA300,310 MARK32	04/2012 - 07/2013	12
13751-B203020	KFVE..LA300,310 MARK20	04/2012 - 07/2013	12
13751-B203030	KFVE..LA300,310 MARK30	04/2012 - 07/2013	12
13751-B203034	KFVE..LA300,310 MARK34	04/2012 - 07/2013	12
13751-B203026	KFVE..LA300,310 MARK26	04/2012 - 07/2013	12
13751-B203014	KFVE..LA300,310 MARK14	04/2012 - 07/2013	12
13751-B203040	KFVE..LA300,310 MARK40	04/2012 - 07/2013	12
13751-B203046	KFVE..LA300,310 MARK46	04/2012 - 07/2013	12
13751-B203038	KFVE..LA300,310 MARK38	04/2012 - 07/2013	12
13751-B203044	KFVE..LA300,310 MARK44	04/2012 - 07/2013	12
13751-B203036	KFVE..LA300,310 MARK36	04/2012 - 07/2013	12
13751-B203054	KFVE..LA300,310 MARK54	04/2012 - 07/2013	12
13751-B203028	KFVE..LA300,310 MARK28	04/2012 - 07/2013	12
13751-B203042	KFVE..LA300,310 MARK42	04/2012 - 07/2013	12
13751-B203052	KFVE..LA300,310 MARK52	04/2012 - 07/2013	12
13751-B203012	KFVE..LA300,310 MARK12	04/2012 - 07/2013	12
13751-B203050	KFVE..LA300,310 MARK50	04/2012 - 07/2013	12
13751-B203048	KFVE..LA300,310 MARK48	04/2012 - 07/2013	12
13751 - LIFTER, VALVE
13751-B203050	KFVE..LA300,310 MARK50	04/2012 - 07/2013	12
13751-B203018	KFVE..LA300,310 MARK18	04/2012 - 07/2013	12
13751-B203016	KFVE..LA300,310 MARK16	04/2012 - 07/2013	12
13751-B203010	KFVE..LA300,310 MARK10	04/2012 - 07/2013	12
13751-B203022	KFVE..LA300,310 MARK22	04/2012 - 07/2013	12
13751-B203024	KFVE..LA300,310 MARK24	04/2012 - 07/2013	12
13751-B203008	KFVE..LA300,310 MARK8	04/2012 - 07/2013	12
13751-B203006	KFVE..LA300,310 MARK6	04/2012 - 07/2013	12
13751-B203032	KFVE..LA300,310 MARK32	04/2012 - 07/2013	12
13751-B203020	KFVE..LA300,310 MARK20	04/2012 - 07/2013	12
13751-B203030	KFVE..LA300,310 MARK30	04/2012 - 07/2013	12
13751-B203034	KFVE..LA300,310 MARK34	04/2012 - 07/2013	12
13751-B203026	KFVE..LA300,310 MARK26	04/2012 - 07/2013	12
13751-B203014	KFVE..LA300,310 MARK14	04/2012 - 07/2013	12
13751-B203040	KFVE..LA300,310 MARK40	04/2012 - 07/2013	12
13751-B203046	KFVE..LA300,310 MARK46	04/2012 - 07/2013	12
13751-B203038	KFVE..LA300,310 MARK38	04/2012 - 07/2013	12
13751-B203044	KFVE..LA300,310 MARK44	04/2012 - 07/2013	12
13751-B203036	KFVE..LA300,310 MARK36	04/2012 - 07/2013	12
13751-B203054	KFVE..LA300,310 MARK54	04/2012 - 07/2013	12
13751-B203028	KFVE..LA300,310 MARK28	04/2012 - 07/2013	12
13751-B203042	KFVE..LA300,310 MARK42	04/2012 - 07/2013	12
13751-B203052	KFVE..LA300,310 MARK52	04/2012 - 07/2013	12
13751-B203012	KFVE..LA300,310 MARK12	04/2012 - 07/2013	12
13751-B203048	KFVE..LA300,310 MARK48	04/2012 - 07/2013	12
13801H - NUT
90041-79338	KFVE..LA300,310	04/2012 - 07/2013	2
Common parts
90041-05370
90041-05372
90041-09255
90041-20199
Linked diagrams
1104

LA300A-GBDF (2012)

(1204- )
