Toyota Pixis epoch LA300A CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11711 - BEARING, CRANKSHAFT
11701-B201105	KFVE..LA300,310 MARK5	04/2012 - 07/2013	4
11701-B201104	KFVE..LA300,310 MARK4	04/2012 - 07/2013	4
11701-B201103	KFVE..LA300,310 MARK3	04/2012 - 07/2013	4
11701-B201102	KFVE..LA300,310 MARK2	04/2012 - 07/2013	4
11711 - BEARING, CRANKSHAFT
11701-B201105	KFVE..LA300,310 MARK5	04/2012 - 07/2013	4
11701-B201104	KFVE..LA300,310 MARK4	04/2012 - 07/2013	4
11701-B201103	KFVE..LA300,310 MARK3	04/2012 - 07/2013	4
11701-B201102	KFVE..LA300,310 MARK2	04/2012 - 07/2013	4
11711 - BEARING, CRANKSHAFT
11701-B201105	KFVE..LA300,310 MARK5	04/2012 - 07/2013	4
11701-B201104	KFVE..LA300,310 MARK4	04/2012 - 07/2013	4
11701-B201103	KFVE..LA300,310 MARK3	04/2012 - 07/2013	4
11701-B201102	KFVE..LA300,310 MARK2	04/2012 - 07/2013	4
11711 - BEARING, CRANKSHAFT
11701-B201105	KFVE..LA300,310 MARK5	04/2012 - 07/2013	4
11701-B201104	KFVE..LA300,310 MARK4	04/2012 - 07/2013	4
11701-B201103	KFVE..LA300,310 MARK3	04/2012 - 07/2013	4
11701-B201102	KFVE..LA300,310 MARK2	04/2012 - 07/2013	4
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B2010	KFVE..LA300,310 STD	04/2012 - 07/2013	2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B2010	KFVE..LA300,310 STD	04/2012 - 07/2013	2
13011 - RING SET, PISTON
13011-B2091	KFVE..LA300,310 NIPPISU	04/2012 - 07/2013	3
13011 - RING SET, PISTON
13011-B2091	KFVE..LA300,310 NIPPISU	04/2012 - 07/2013	3
13041 - BEARING, CONNECTING ROD
13041-B201002	KFVE..LA300,310 MARK2	04/2012 - 07/2013	3
13041-B201003	KFVE..LA300,310 MARK3	04/2012 - 07/2013	3
13041-B201001	KFVE..LA300,310 MARK1	04/2012 - 07/2013	3
13101 - PISTON SUB-ASSY, W/PIN
13101-B2230	KFVE..LA300,310 STD ART	04/2012 - 07/2013	3
13201 - ROD SUB-ASSY, CONNECTING
13201-B9060	KFVE..LA300,310	04/2012 - 07/2013	3
13265 - BOLT, CONNECTING ROD
13265-B9020	KFVE..LA300,310	04/2012 - 07/2013	6
13411 - CRANKSHAFT
13401-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
13471 - PULLEY, CRANKSHAFT
13470-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90041-05369	KFVE..LA300,310 M12,L=46.5	04/2012 - 07/2013	1
13521P - PULLEY, CRANKSHAFT TIMING
13521-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
Common parts
90042-80034

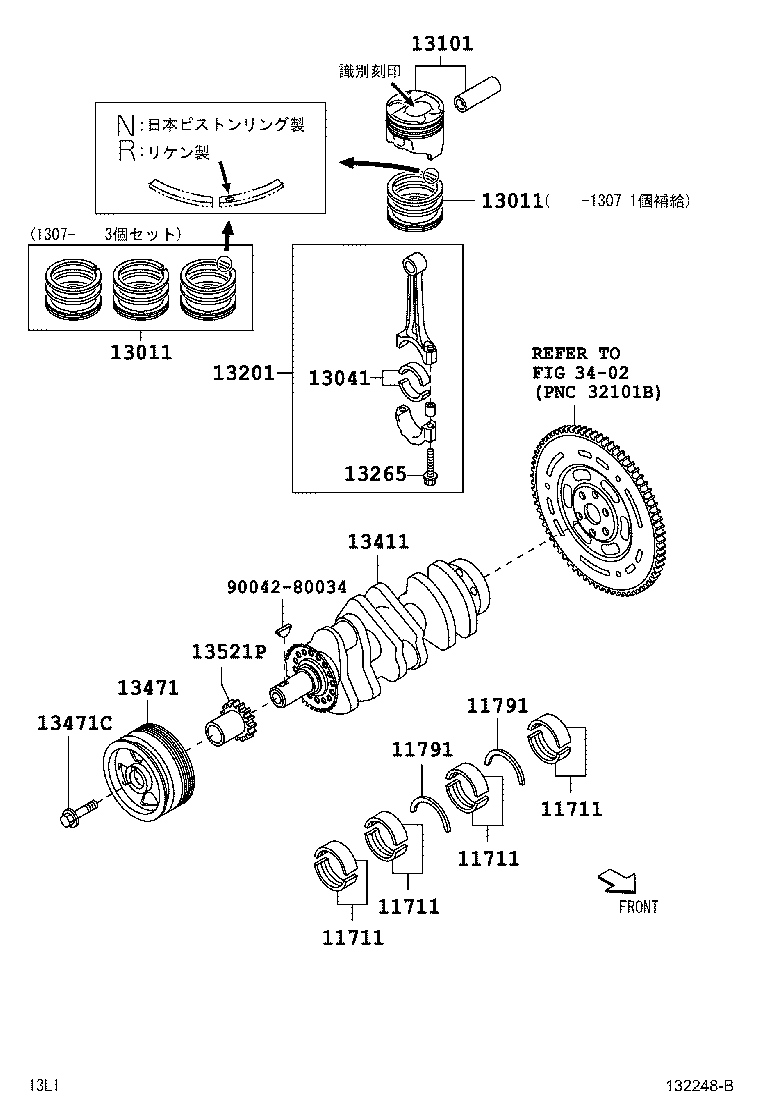

Linked diagrams
3402

LA300A-GBDF (2012)
