M512E-HQZE (2008)
Toyota Passo Sette
Production
Dec 2008
-
Mar 2012
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

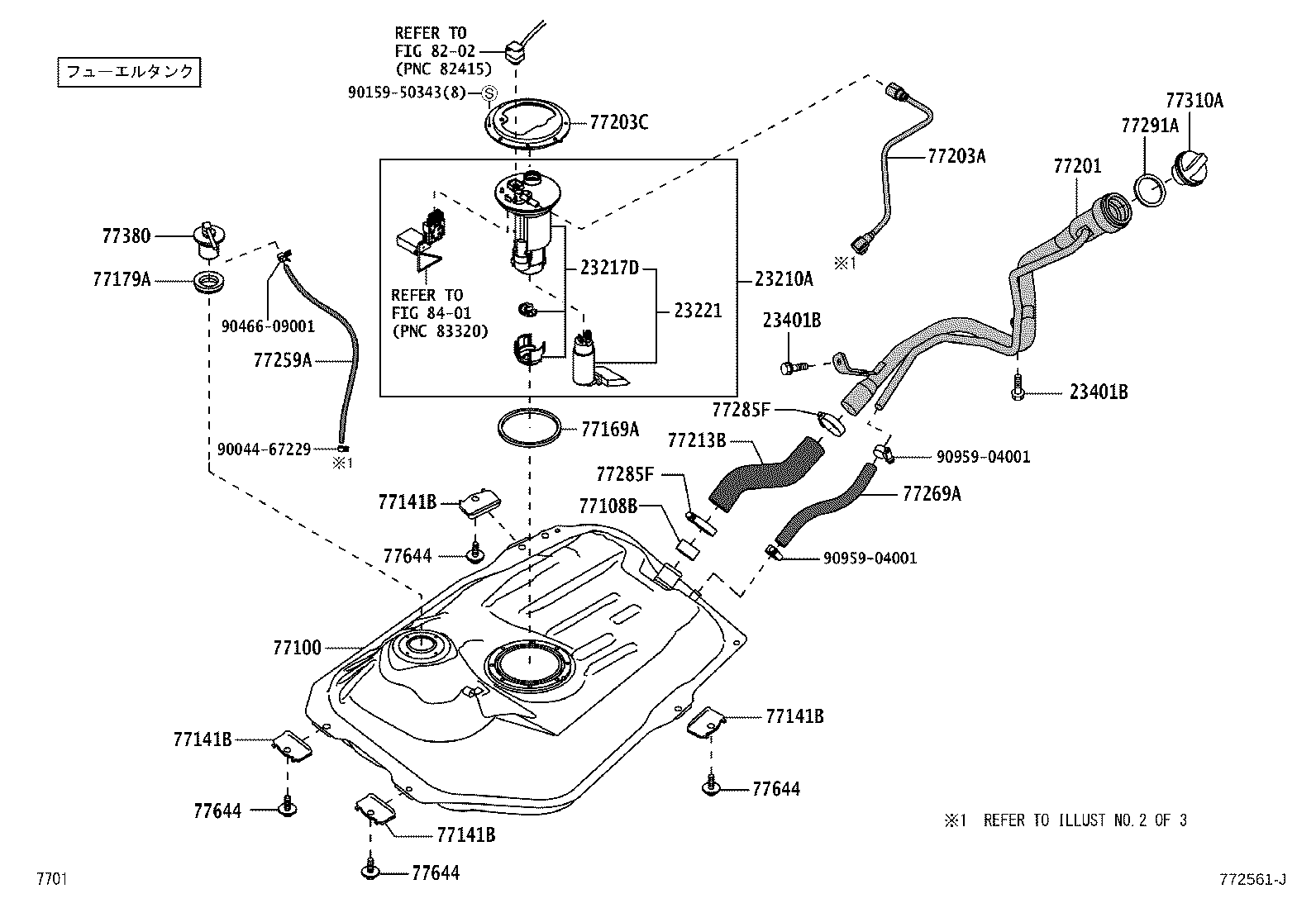

ILLUST NO. 1 OF 3(0812- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-B1080 |
3SZVE..M502,512 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23908-B1030 |
3SZVE..M502,512 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23100-B1050 |
3SZVE..M502,512 |
1 | ||
| 23401B - BOLT | ||||
| 91551-A0816 |
3SZVE..M502,512 |
2 | ||
| 23401B - BOLT | ||||
| 91551-A0816 |
3SZVE..M502,512 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-B1030 |
M502,512 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
M502,512 |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
M502,512 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
M502,512 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
M502,512 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
M502,512 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 23232-87401 |
M502,512 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
M502,512 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-B1090 |
M502,512 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-B1030 |
M502,512 |
1 | ||
| 77203C - BRACKET, FUEL PUMP | ||||
| 23265-B2010 |
M502,512 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-B1040 |
M502,512 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-B1020 |
M502,512 長さ=410 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-B1030 |
M502,512 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 90460-46003 |
M502,512 |
2 | ||
| 90460-46005 |
M502,512 |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 90460-46003 |
M502,512 |
2 | ||
| 90460-46005 |
M502,512 |
2 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-B2020 |
M502,512 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
M502,512 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-B2010 |
M502,512 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
M502,512 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
M502,512 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
M502,512 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
M502,512 |
4 | ||
| Common parts | ||||
| 90044-67229 | ||||
| 90159-50343 | ||||
| 90466-09001 | ||||
| 90959-04001 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

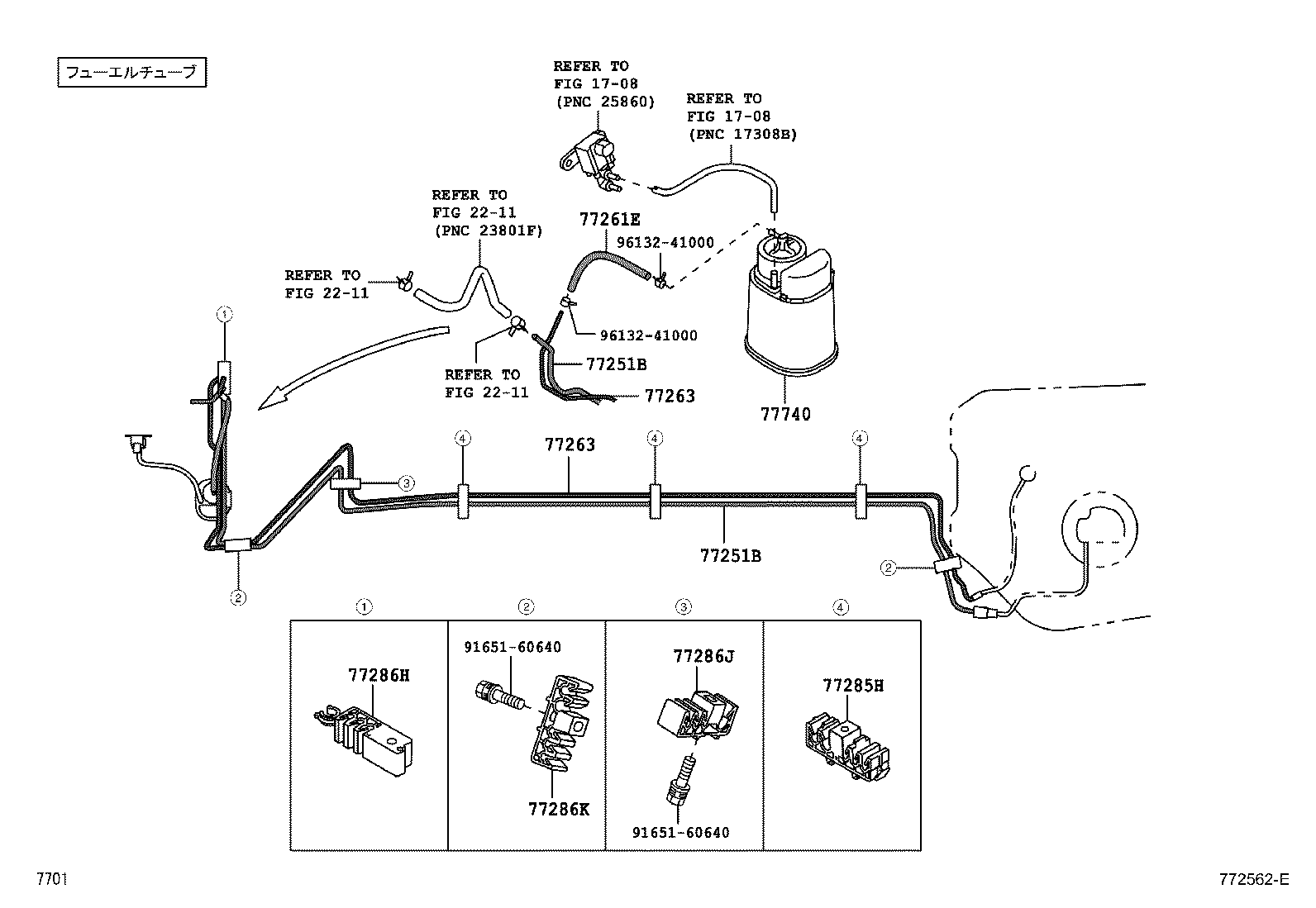

ILLUST NO. 2 OF 3(0812- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B1051 |
M502,512 |
1 | ||
| 77251-B1050 |
M502,512 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B1051 |
M502,512 |
1 | ||
| 77251-B1050 |
M502,512 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-04095 |
M502,512 *H,L=260 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B1050 |
M502,512 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B1050 |
M502,512 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90044-64657 |
M502,512 |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 90044-64754 |
M502,512 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 90044-64787 |
M502,512 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 90044-64766 |
M502,512 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-B1040 |
M502,512 |
1 | ||
| Common parts | ||||
| 91651-60640 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

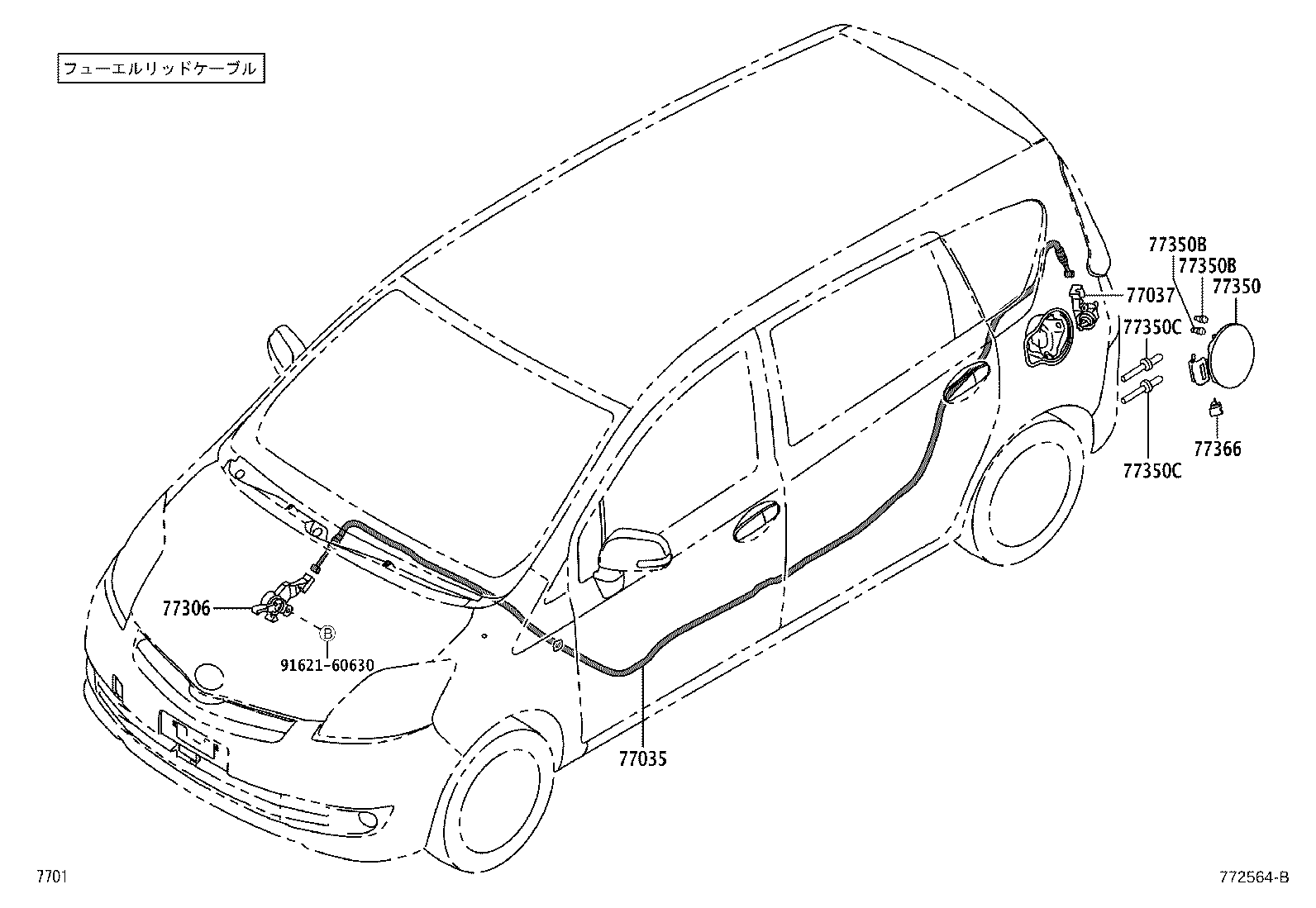

ILLUST NO. 3 OF 3(0812- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾘｯﾄﾞｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-B1050 |
M502,512 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-B1020 |
M502,512 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-97202 |
M502,512 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-B1030 |
M502,512 |
1 | ||
| 77350B - CUSHION(FOR FUEL FILLER OPENING LID) | ||||
| 90045-40129 |
M502,512 |
2 | ||
| 77350B - CUSHION(FOR FUEL FILLER OPENING LID) | ||||
| 90045-40129 |
M502,512 |
2 | ||
| 77350C - RIVET | ||||
| 90269-06013 |
M502,512 |
2 | ||
| 77350C - RIVET | ||||
| 90269-06013 |
M502,512 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-B2040 |
M502,512 |
1 | ||
| Common parts | ||||
| 91621-60630 | ||||
