M512E-HQZE (2008)
Toyota Passo Sette
Production
Dec 2008
-
Mar 2012
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0812- )

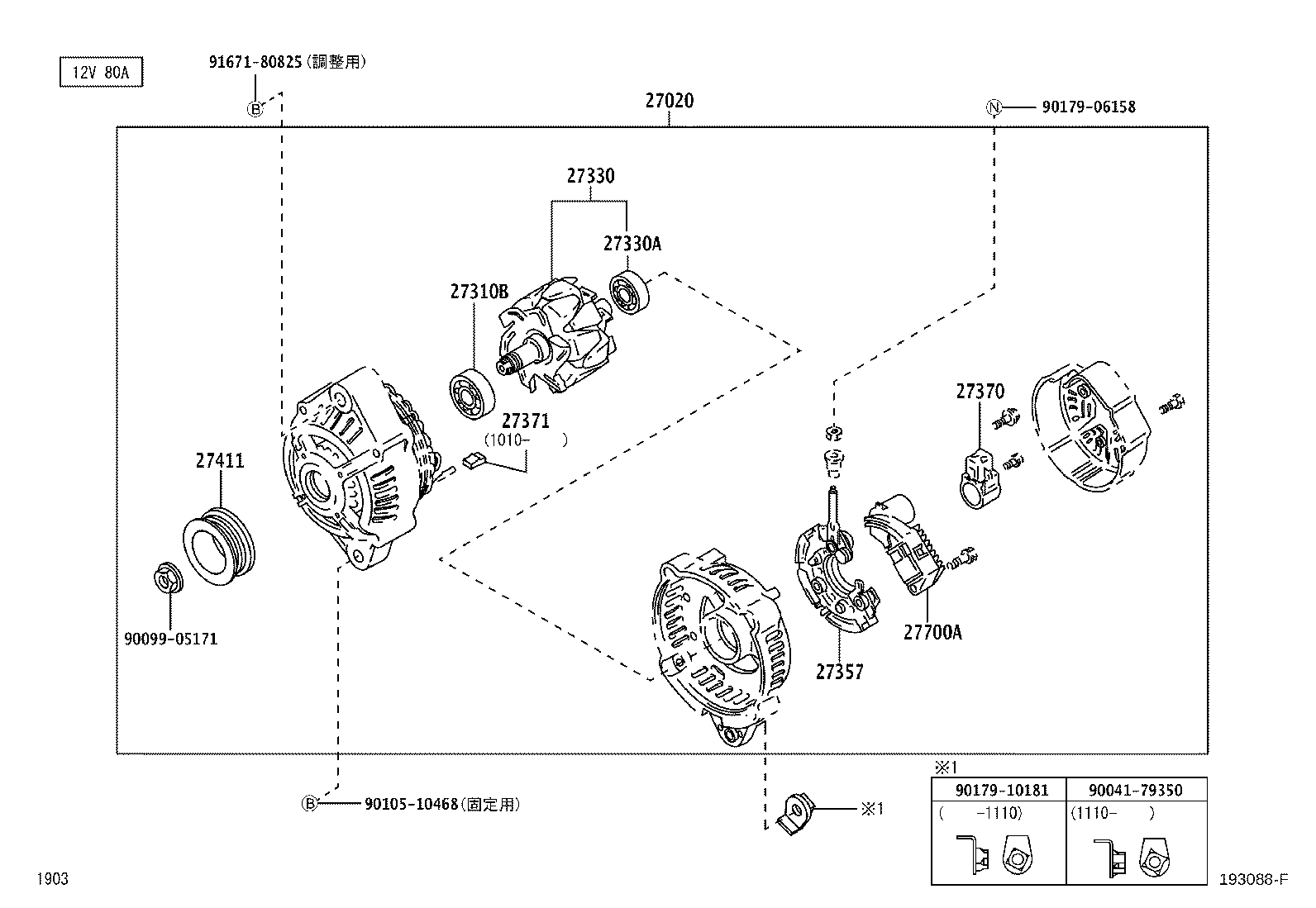

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-B1030 |
3SZVE..M502,512 12V 80A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 9004C-37002 |
3SZVE..M502,512 |
1 | ||
| 27791-87703 |
3SZVE..M502,512 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-B1010 |
3SZVE..M502,512 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 27791-87708 |
3SZVE..M502,512 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-B1010 |
3SZVE..M502,512 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-B1010 |
3SZVE..M502,512 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-B1010 |
3SZVE..M502,512 |
3 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-B1010 |
3SZVE..M502,512 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-B1010 |
3SZVE..M502,512 |
1 | ||
| Common parts | ||||
| 90041-79350 | ||||
| 90099-05171 | ||||
| 90105-10468 | ||||
| 90179-06158 | ||||
| 90179-10181 | ||||
| 91671-80825 | ||||
