M512E-HQNE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

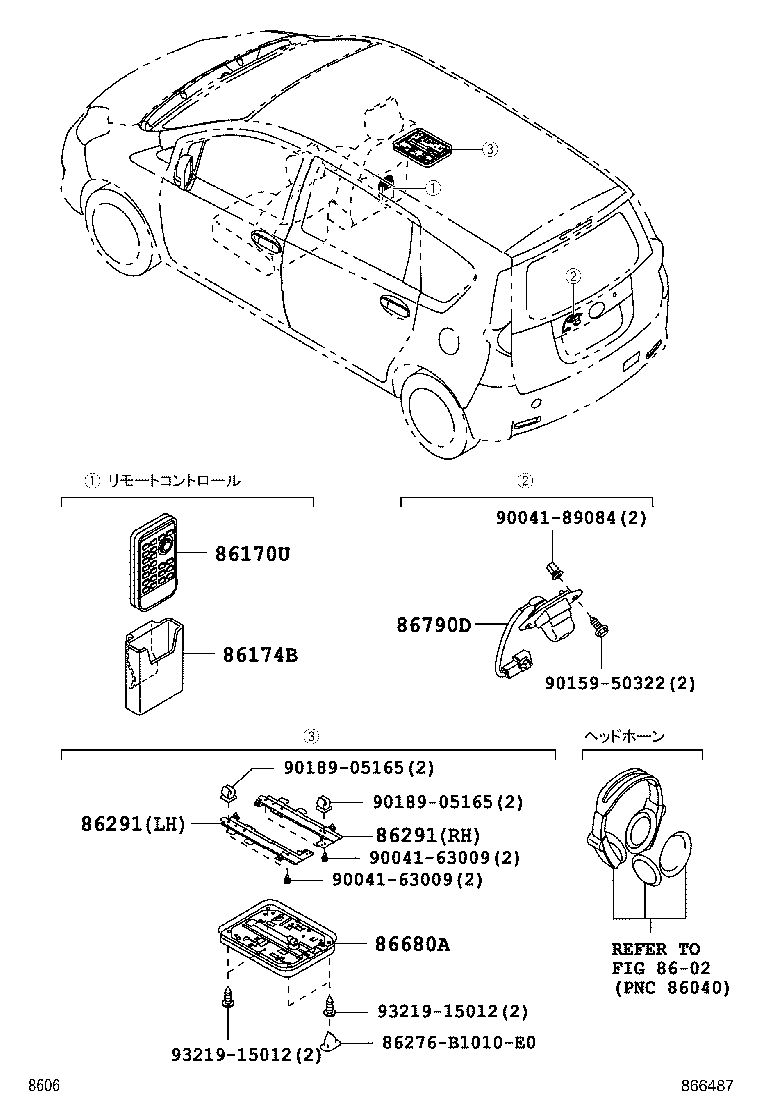

Click highlighted areas on diagram

diagram 8602 86170U 86174B 86276B1010E0 86291 86291 86680A 86790D 9004163009 9004163009 9004189084 9015950322 9018905165 9018905165 9321915012 9321915012
Part # Description Qty Price
86170U - SWITCH & VOLUME ASSY, REAR
86170-B1010

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 1
86174B - CASE, SWITCH & VOLUME
81122-B1010

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 1
86291 - BRACKET, TELEVISION
86274-B1030

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ),左側

 1
86274-B1020

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ),右側

 1
86291 - BRACKET, TELEVISION
86274-B1030

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ),左側

 1
86274-B1020

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ),右側

 1
86680A - DISPLAY ASSY, TELEVISION
86681-B1010E0

M502,512

小島ﾌﾟﾚｽ,有り(ﾘﾔ席 ﾓﾆﾀｰ),GREAGE,TRIM4#

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-B1010

M502,512

ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP

 1
Common parts
86276-B1010E0
90041-63009
90041-89084
90159-50322
90189-05165
93219-15012
Linked diagrams
8602
