M512E-HQNE (2008)
Toyota Passo Sette

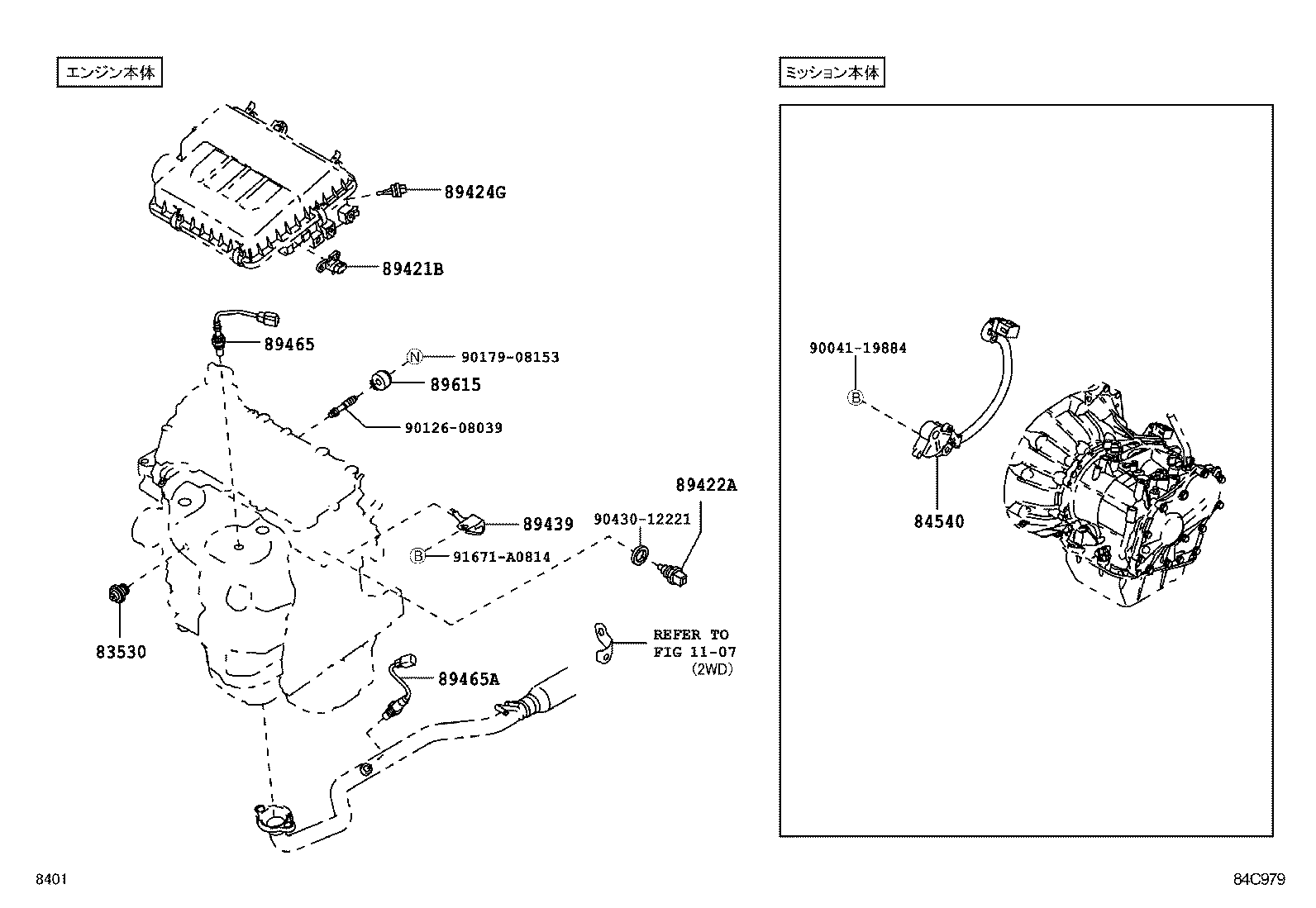

ILLUST NO. 1 OF 6(0812- )
ｴﾝｼﾞﾝ&ﾄﾗﾝﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-97401 |
M502,512 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-97203 |
M502,512 |
1 | ||
| 84540-B1020 |
M502,512 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-B1010 |
M502,512 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
M502,512 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-87703 |
M502,512 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-B1050 |
M502,512 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-B1090 |
M502,512 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B1080 |
M512 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
M502,512 |
1 | ||
| Common parts | ||||
| 90041-19884 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-12221 | ||||
| 91671-A0814 | ||||
| Linked diagrams | ||||
| 1107 | ||||

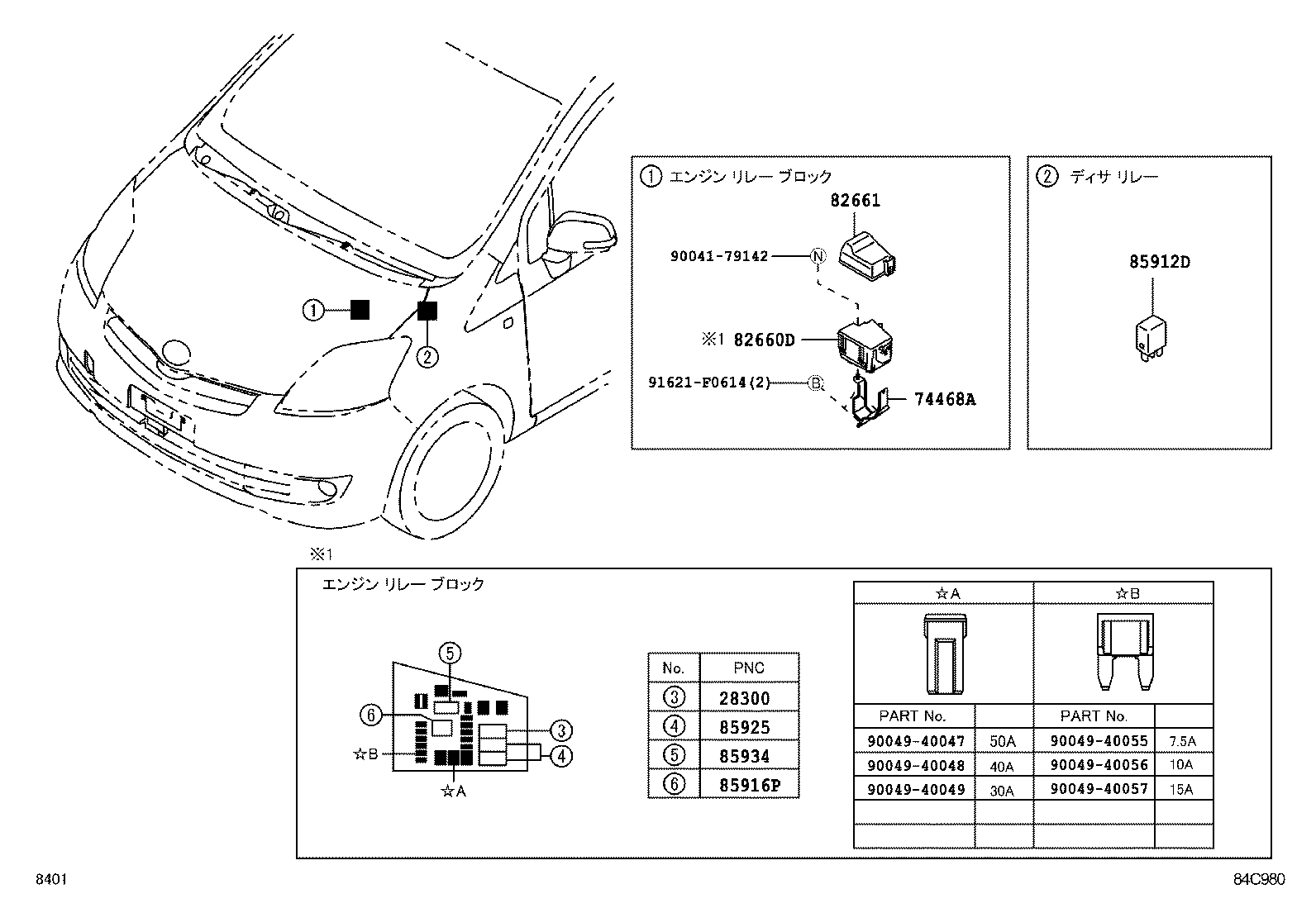

ILLUST NO. 2 OF 6(0812- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-88004 |
3SZVE..M502,512 |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B1030 |
M502,512 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-B2030 |
M502,512 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B1250 |
M502,512 |
1 | ||
| 85912D - RELAY | ||||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512 寒冷地仕様,ﾃﾞｲｻｰ |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様,EFI |
1 | ||
| 90049-88002 |
M502,512..G,S,SC EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ,EFh |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),dFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88004 |
M502,512 寒冷地仕様,ﾃﾞｲｻｰ |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88004 |
M502,512..G,S,SC EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88004 |
M502,512..X EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90049-87026 |
M502,512 |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90049-88004 |
M502,512 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90049-88004 |
M502,512 |
1 | ||
| Common parts | ||||
| 90041-79142 | ||||
| 90049-40047 | ||||
| 90049-40048 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 91621-F0614 | ||||

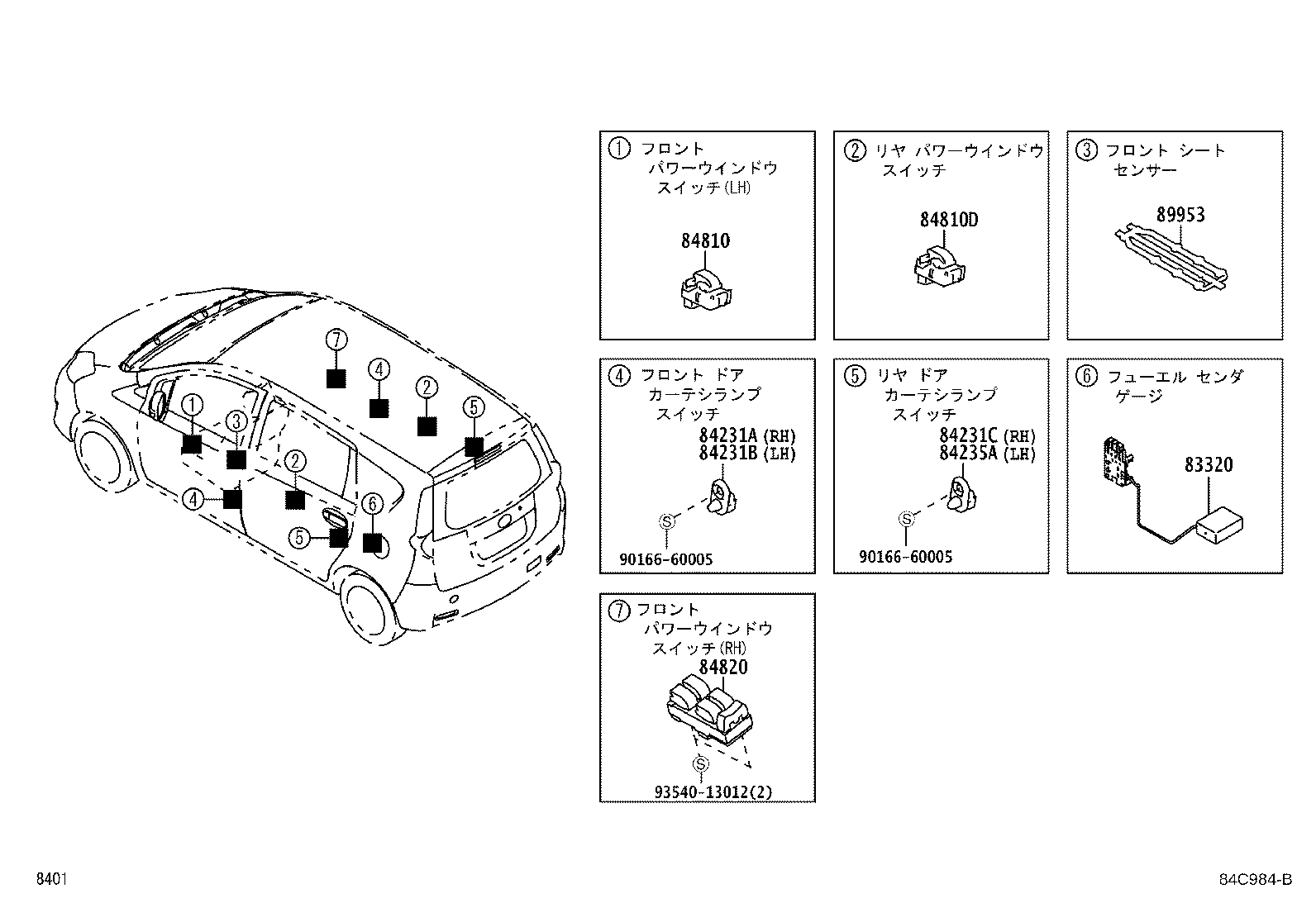

ILLUST NO. 6 OF 6(0812- )
ﾄﾞｱ&ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-B1020 |
M502,512 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-52020 |
M502,512 |
1 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-52020 |
M502,512 |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-52020 |
M502,512 |
1 | ||
| 84235A - SWITCH, COURTESY LAMP | ||||
| 84231-52020 |
M502,512 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-B1020 |
M502,512 ﾌﾛﾝﾄ左側 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-B1020 |
M502,512 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-B1091 |
M502,512 ﾌﾛﾝﾄ右側 |
1 | ||
| 84820-B1090 |
M502,512 ﾌﾛﾝﾄ右側 |
1 | ||
| 89953 - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-B1010 |
M502,512 |
1 | ||
| Common parts | ||||
| 90166-60005 | ||||
| 93540-13012 | ||||

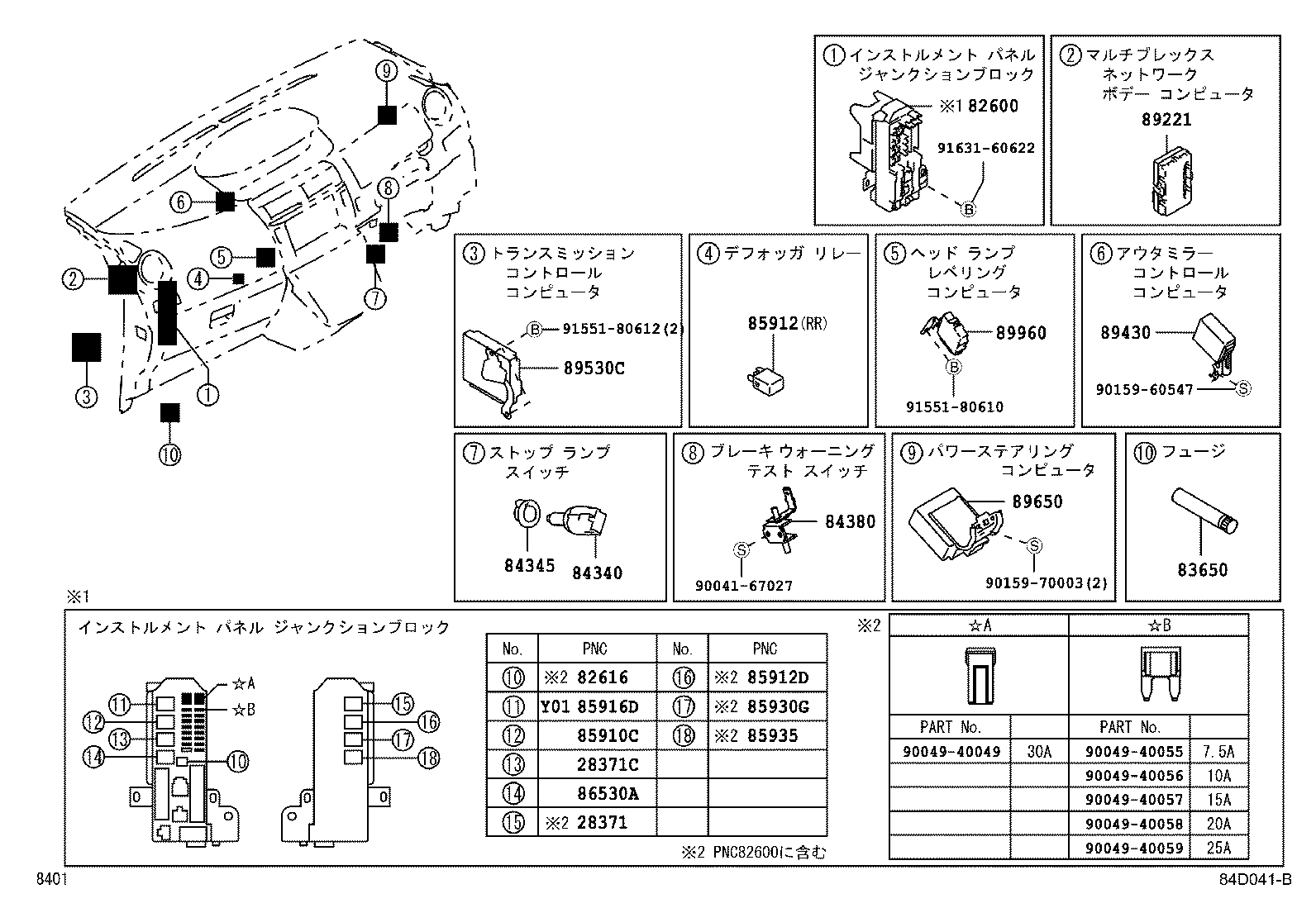

ILLUST NO. 3 OF 6(0812- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様 |
1 | ||
| 90049-88002 |
3SZVE..M502,512..G,S,SC |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 寒冷地仕様&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88004 |
3SZVE..M502,512..X |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88004 |
3SZVE..M502,512..G,S,SC |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
3SZVE..M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90049-88001 |
3SZVE..M502,512 |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-B1080 |
M502,512..G,S,SC |
1 | ||
| 82600-B1070 |
M502,512..X |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様 |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 寒冷地仕様&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X 有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82600-B1080 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-B2010 |
M502,512 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
M502,512 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-B2010 |
M502,512 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-B2010 |
M502,512 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-B2010 |
M502,512 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90049-88004 |
M502,512..SC,X |
1 | ||
| 90049-88002 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90049-88002 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 90049-88004 |
M502,512..SC,X |
1 | ||
| 85912D - RELAY | ||||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512 寒冷地仕様,ﾃﾞｲｻｰ |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様,EFI |
1 | ||
| 90049-88002 |
M502,512..G,S,SC EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ,EFh |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),dFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88004 |
M502,512 寒冷地仕様,ﾃﾞｲｻｰ |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88004 |
M502,512..G,S,SC EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾘﾔ席 ﾓﾆﾀｰ),EFI |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP,EFI |
1 | ||
| 90049-88004 |
M502,512..X EFI |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID,EFI |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90049-88002 |
M502,512..G,X 寒冷地仕様&ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W) |
1 | ||
| 90049-88004 |
M502,512..S,SC |
1 | ||
| 90049-88004 |
M502,512..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W) |
1 | ||
| 90049-88004 |
M502,512..G,X 寒冷地仕様&ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W) |
1 | ||
| 90049-88002 |
M502,512..S,SC 寒冷地仕様 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90049-88002 |
M502,512..G,S,SC |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様 |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88004 |
M502,512..X |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88004 |
M502,512..G,S,SC |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90049-88002 |
M502,512..G,S,SC |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様 |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88004 |
M502,512..X |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID&ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 90049-88002 |
M502,512..X ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| 90049-88002 |
M502,512..X ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 90049-88004 |
M502,512..G,S,SC |
1 | ||
| 90049-88002 |
M502,512..X 有り(ﾙｰﾑﾗﾝﾌﾟ+ﾌｯﾄﾗﾝﾌﾟ)&有り(ﾘﾔ席 ﾓﾆﾀｰ) |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90049-88002 |
M502,512 寒冷地仕様 |
1 | ||
| 90049-88004 |
M502,512 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-B1010 |
M502,512 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-B1010 |
M502,512..G,S,SC |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-B1350 |
M512 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-B1160 |
M502,512 JTEKT |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-B1110 |
M512 ﾍｯﾄﾞﾗﾝﾌﾟ−2灯 HID |
1 | ||
| Common parts | ||||
| 90041-67027 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40058 | ||||
| 90049-40059 | ||||
| 90159-60547 | ||||
| 90159-70003 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91631-60622 | ||||

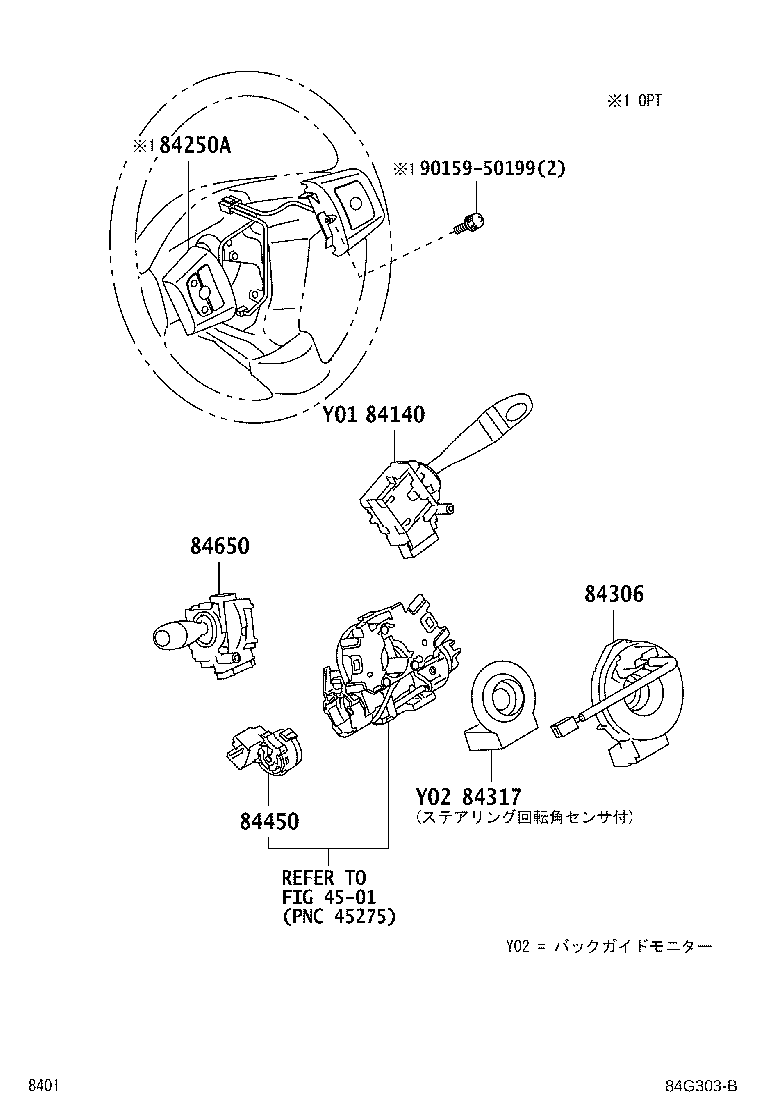

ILLUST NO. 5 OF 6(0812- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 00000-00000 |
M502,512..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有りD―OPT(55W TMC用),該当品ﾔなし |
1 | ||
| 84140-B2050 |
M502,512..G,X |
1 | ||
| 84140-B2070 |
M502,512..G,X ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W) |
1 | ||
| 84140-B2070 |
M502,512..S,SC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-B1010 |
M502,512 ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-B2030 |
M502,512 |
1 | ||
| 84306-B2040 |
M502,512 ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-B1020 |
M502,512 ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-B2020 |
M502,512 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-B1020 |
M502,512..G,S |
1 | ||
| 84652-B2010 |
M502,512..SC,X |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 4501 | ||||

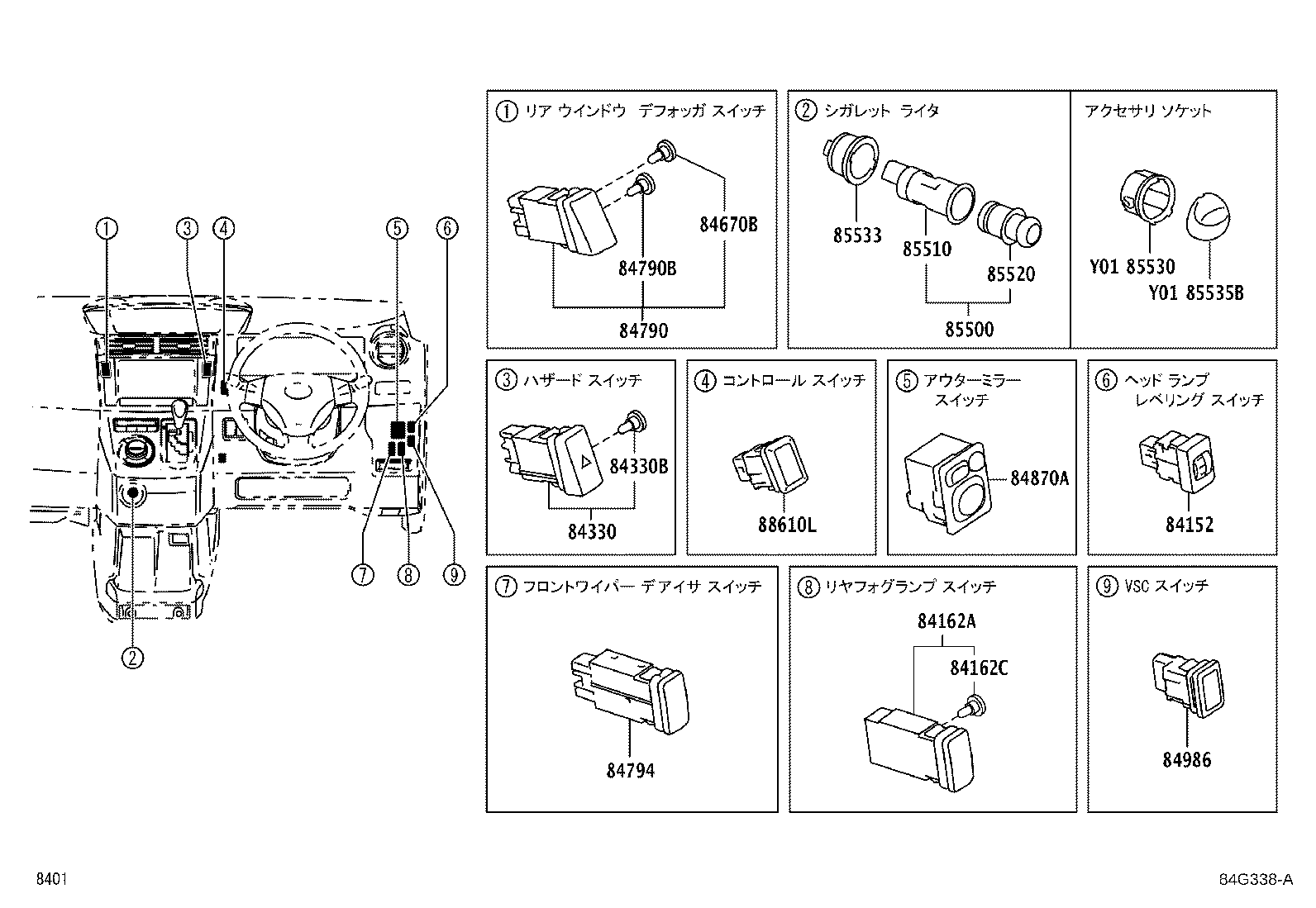

ILLUST NO. 4 OF 6(0812- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-B1060 |
M502,512 |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-B1010 |
M502,512 有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-B5030 |
M502,512 12V,有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-B1020 |
M502,512 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B1010 |
M502,512 14V 0.93W |
1 | ||
| 84670B - BULB(FOR REAR WIPER & DEFOGGER SWITCH | ||||
| 84999-B5010 |
M502,512..G,S |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-B1010 |
M502,512..G,S |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-B1020 |
M502,512..G,S 14V 0.91W |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-B1020 |
M502,512 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
M502,512 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
M502,512 有り(ｼｶﾞﾚｯﾄ ﾗｲﾀｰ) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-28050 |
M502,512 有り(ｼｶﾞﾚｯﾄ ﾗｲﾀｰ) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
M502,512 有り(ｼｶﾞﾚｯﾄ ﾗｲﾀｰ) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
M502,512 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-B1010 |
M502,512 有り(ｼｶﾞﾚｯﾄ ﾗｲﾀｰ) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52051 |
M502,512 |
1 | ||
| 88610L - SWITCH ASSY,CONTROL | ||||
| 88610-B1160 |
M502,512..G,S |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
