M512E-HQNE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )G,X

Click highlighted areas on diagram

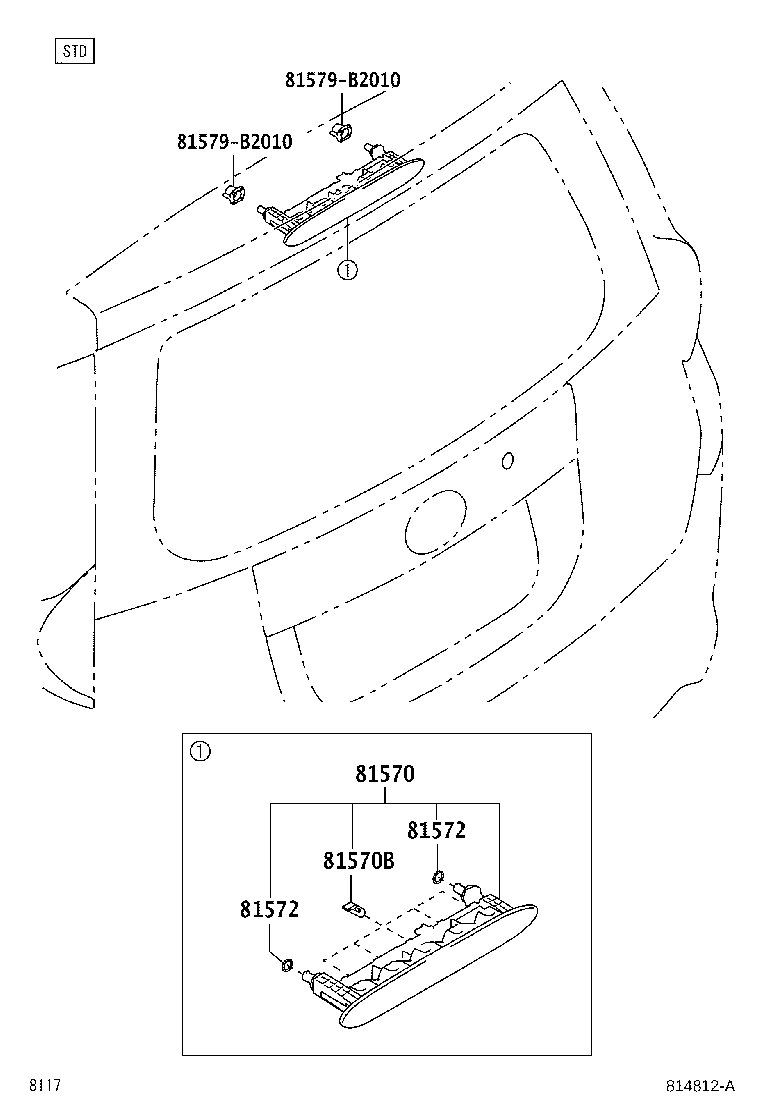

STD

diagram 81570 81570B 81572 81572 81579B2010 81579B2010
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-B1050

M502,512..S,SC

 1
81570-B2110

M502,512..G,X

 1
81570-B2280

M502,512..G,X

 1
81570B - BULB (FOR CENTER STOP LAMP)
90049-51184

M502,512..G,X

12V 5W

 5
90981-11013

M502,512..G,X

12V 5W T10

 5
81572 - GASKET, CENTER STOP LAMP
81572-B2040

M502,512..G,X

 2
81572 - GASKET, CENTER STOP LAMP
81572-B2040

M502,512..G,X

 2
Common parts
81579-B2010

(0812- )S,SC

Click highlighted areas on diagram

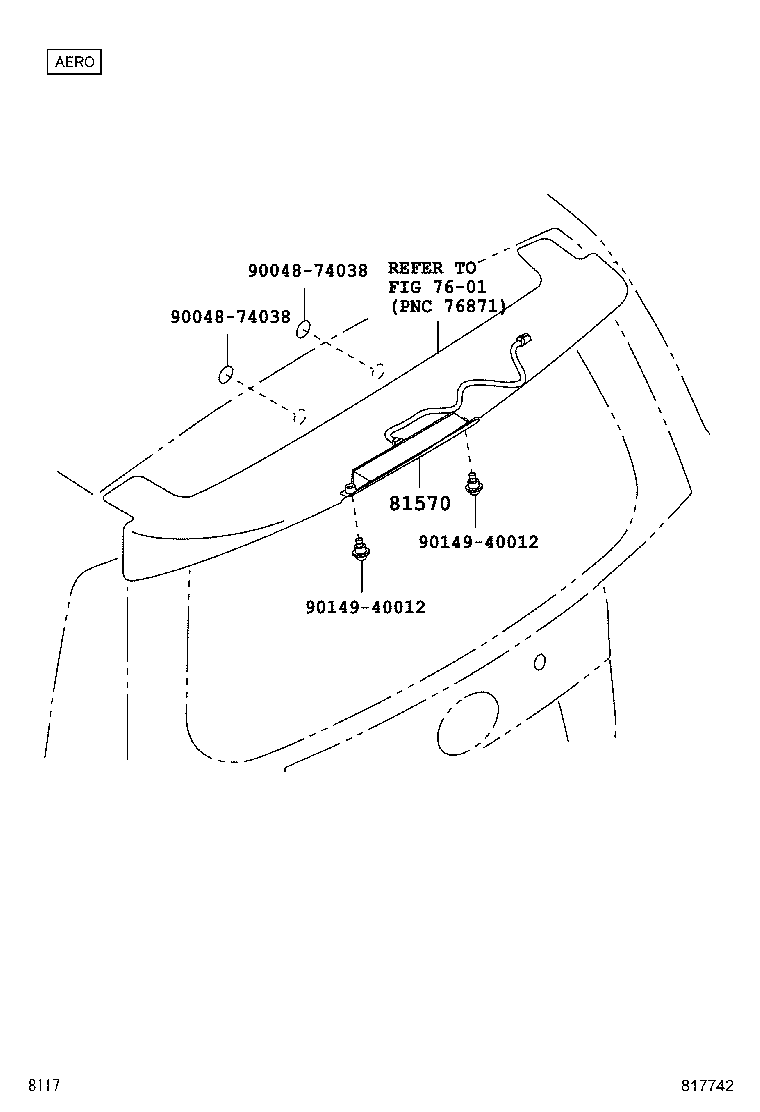

AERO

diagram 7601 81570 9004874038 9004874038 9014940012 9014940012
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-B1050

M502,512..S,SC

 1
81570-B2110

M502,512..G,X

 1
81570-B2280

M502,512..G,X

 1
Common parts
90048-74038
90149-40012
Linked diagrams
7601
