M512E-HQNE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

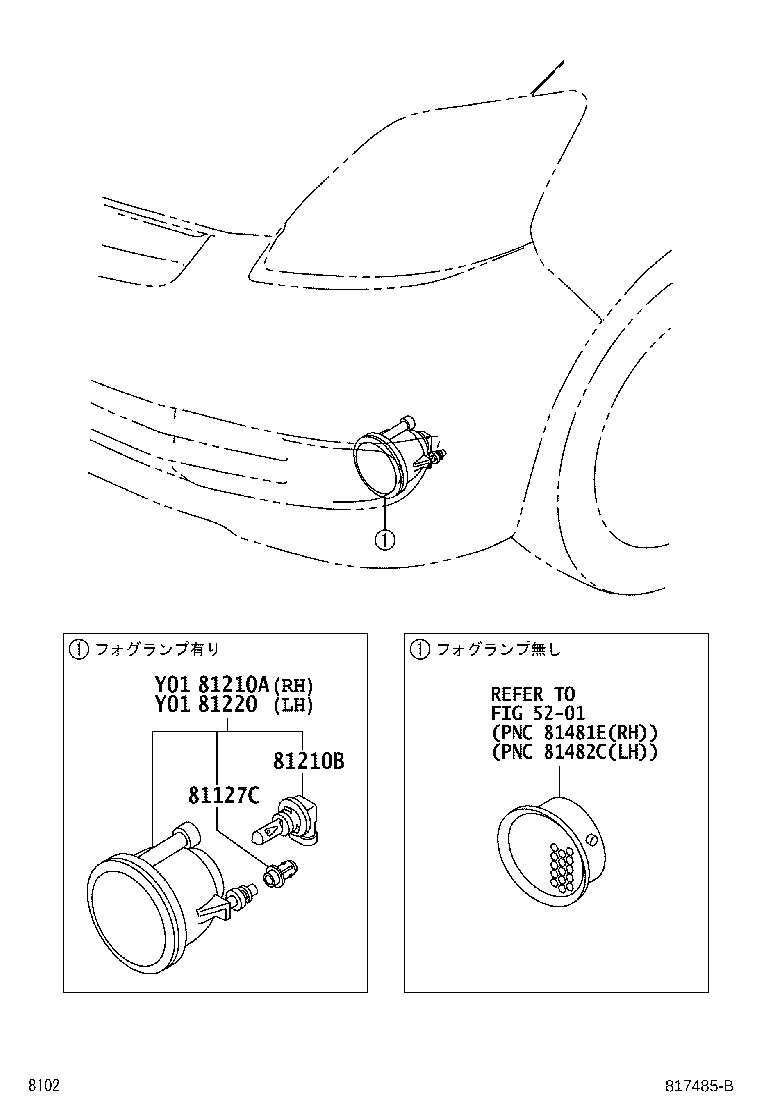

Click highlighted areas on diagram

diagram 5201 81127C 81210A 81210B 81220
Part # Description Qty Price
81127C - BEARING FOG LAMP
81127-87401

M502,512..S,SC

 2
81127-87401

M502,512..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W)

 2
81210A - LAMP ASSY, FOG, RH
81210-97229

M502,512..S,SC

 1
81210-97229

M502,512..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W)

 1
81210B - BULB, FOG LAMP
90049-51154

M502,512..S,SC

12V 35W H8

 2
90049-51154

M502,512..G,X

12V 35W H8,ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W)

 2
81220 - LAMP ASSY, FOG, LH
81210-97229

M502,512..S,SC

 1
81210-97229

M502,512..G,X

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り(55W)

 1
Linked diagrams
5201
