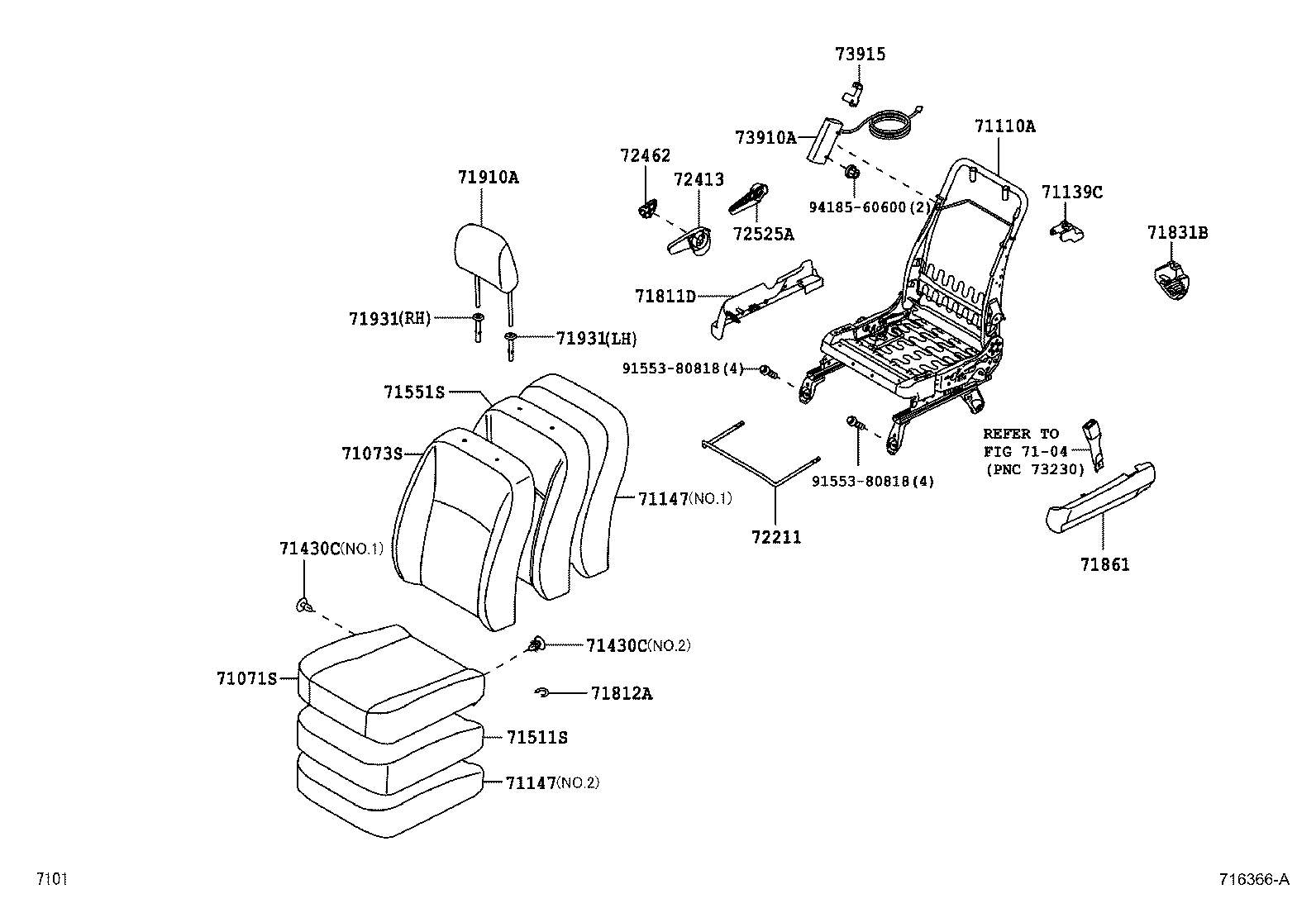

ILLUST NO. 1 OF 3(0812- )
ｾﾊﾟﾚｰﾄ ｼｰﾄ,ｳﾝﾃﾝｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1260E1 |
M502,512..X -,TRIM4# |
1 | ||
| 71071-B1320C0 |
M502,512..S,SC -,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1640E1 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71073-B1640E1 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71073-B1640E1 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71073-B1760C1 |
M502,512..S,SC B+ｸﾚｰﾝ,-,TRIM4# |
1 | ||
| 71073-B1A00C0 |
M502,512..S,SC -,TRIM4# |
1 | ||
| 71073-B1630E1 |
M502,512..X -,TRIM4# |
1 | ||
| 71073-B1760C1 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,-,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1140 |
M502,512..S,SC,X |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1030B0 |
M502,512 DK.GRAY,TRIM4# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-B1010 |
M502,512..S,SC 左側ｼｰﾄ NO.1 |
2 | ||
| 71147-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC 左側ｼｰﾄ NO.2 |
2 | ||
| 71147-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.1 |
1 | ||
| 71147-B1020 |
M502,512..G,X 左側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..G,X 左側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1020 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.2 |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-B1010 |
M502,512..S,SC 左側ｼｰﾄ NO.1 |
2 | ||
| 71147-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC 左側ｼｰﾄ NO.2 |
2 | ||
| 71147-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.1 |
1 | ||
| 71147-B1020 |
M502,512..G,X 左側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..G,X 左側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1020 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.2 |
1 | ||
| 71430C - CLIP | ||||
| 90044-68028B0 |
M502,512..S,SC B+ｸﾚｰﾝ,DK.GRAY,NO.2 |
2 | ||
| 90044-67537 |
M502,512 NO.1 |
1 | ||
| 90044-68028B0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,mO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512 DK.GRAY,NO.2 |
4 | ||
| 71430C - CLIP | ||||
| 90044-68028B0 |
M502,512..S,SC B+ｸﾚｰﾝ,DK.GRAY,NO.2 |
2 | ||
| 90044-67537 |
M502,512 NO.1 |
1 | ||
| 90044-68028B0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,mO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512 DK.GRAY,NO.2 |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1160 |
M502,512..S,SC,X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1240 |
M502,512..X |
1 | ||
| 71505-B1250 |
M502,512..G,S,SC |
1 | ||
| 71505-B1250 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71505-B1250 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71505-B1250 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1090E0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71811-B1090E0 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71811-B1080E0 |
M502,512..X GREGE,TRIM4# |
1 | ||
| 71811-B1090E0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71811-B1090E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71812-87201 |
M502,512..S,SC B+ｸﾚｰﾝ |
9 | ||
| 71812-87201 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
9 | ||
| 71812-87201 |
M502,512 |
18 | ||
| 71812-87201 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1041B0 |
M502,512 DK.GRAY,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1030E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 71861-B1030E0 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1260C0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,-,TRIM4# |
1 | ||
| 71910-B1260C0 |
M502,512..S,SC -,TRIM4# |
2 | ||
| 71910-B1220E0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71910-B1220E0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71910-B1260C0 |
M502,512..S,SC B+ｸﾚｰﾝ,-,TRIM4# |
1 | ||
| 71910-B1220E0 |
M502,512..X -,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,ｶ側 |
2 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,E側 |
2 | ||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,GREGE,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,GREGE,TRIM4#,右側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,ｶ側 |
2 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,E側 |
2 | ||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,GREGE,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,GREGE,TRIM4#,右側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2040 |
M502,512 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B1010E1 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 72413-B1010E2 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B1010E2 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 72462-B1010E1 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B1010E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 72525-B1010E0 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B1040 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73910-B1040 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73910-B1040 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73910-B1040 |
M502,512..G,S,SC |
1 | ||
| 73915 - COVER, SEAT AIR BAG NO.1, RH | ||||
| 73915-B1010 |
M502,512..G,S,SC |
1 | ||
| 73915-B1010 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73915-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73915-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| Common parts | ||||
| 91553-80818 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

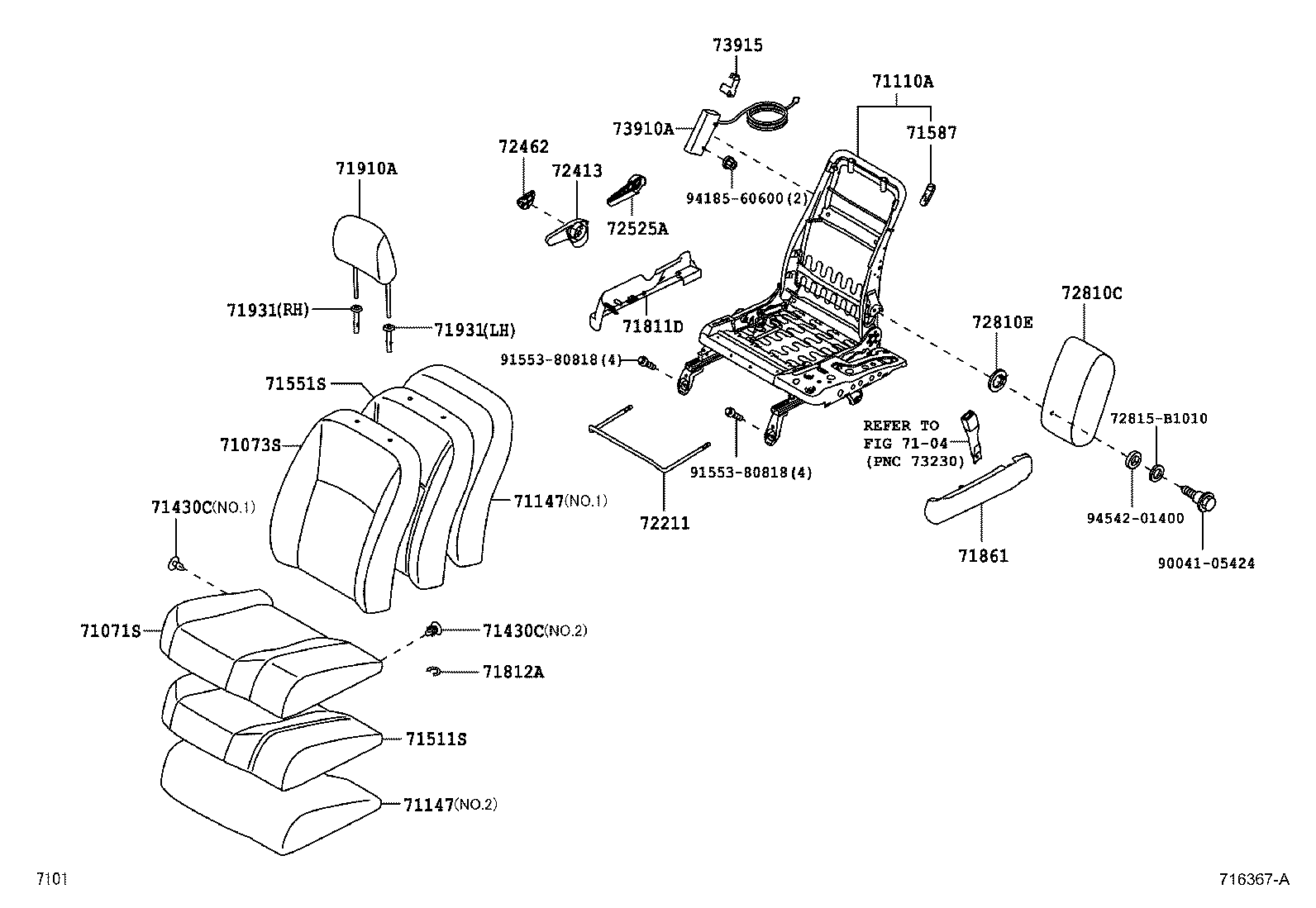

ILLUST NO. 2 OF 3(0812- )
ﾍﾞﾝﾁｼｰﾄ,ｳﾝﾃﾝｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1260E1 |
M502,512..X -,TRIM4# |
1 | ||
| 71071-B1320C0 |
M502,512..S,SC -,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1640E1 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71073-B1640E1 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71073-B1640E1 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71073-B1760C1 |
M502,512..S,SC B+ｸﾚｰﾝ,-,TRIM4# |
1 | ||
| 71073-B1A00C0 |
M502,512..S,SC -,TRIM4# |
1 | ||
| 71073-B1630E1 |
M502,512..X -,TRIM4# |
1 | ||
| 71073-B1760C1 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,-,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1140 |
M502,512..S,SC,X |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-B1010 |
M502,512..S,SC 左側ｼｰﾄ NO.1 |
2 | ||
| 71147-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC 左側ｼｰﾄ NO.2 |
2 | ||
| 71147-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.1 |
1 | ||
| 71147-B1020 |
M502,512..G,X 左側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..G,X 左側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1020 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.2 |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-B1010 |
M502,512..S,SC 左側ｼｰﾄ NO.1 |
2 | ||
| 71147-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC 左側ｼｰﾄ NO.2 |
2 | ||
| 71147-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.1 |
1 | ||
| 71147-B1020 |
M502,512..G,X 左側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..G,X 左側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1020 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.2 |
1 | ||
| 71430C - CLIP | ||||
| 90044-68028B0 |
M502,512..S,SC B+ｸﾚｰﾝ,DK.GRAY,NO.2 |
2 | ||
| 90044-67537 |
M502,512 NO.1 |
1 | ||
| 90044-68028B0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,mO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512 DK.GRAY,NO.2 |
4 | ||
| 71430C - CLIP | ||||
| 90044-68028B0 |
M502,512..S,SC B+ｸﾚｰﾝ,DK.GRAY,NO.2 |
2 | ||
| 90044-67537 |
M502,512 NO.1 |
1 | ||
| 90044-68028B0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,mO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512 DK.GRAY,NO.2 |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1160 |
M502,512..S,SC,X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1240 |
M502,512..X |
1 | ||
| 71505-B1250 |
M502,512..G,S,SC |
1 | ||
| 71505-B1250 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71505-B1250 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71505-B1250 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
2 | ||
| 71587-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ |
2 | ||
| 71587-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
2 | ||
| 71587-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 71587-B1010 |
M502,512..S,SC |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1090E0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71811-B1090E0 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71811-B1080E0 |
M502,512..X GREGE,TRIM4# |
1 | ||
| 71811-B1090E0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71811-B1090E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71812-87201 |
M502,512..S,SC B+ｸﾚｰﾝ |
9 | ||
| 71812-87201 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
9 | ||
| 71812-87201 |
M502,512 |
18 | ||
| 71812-87201 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1030E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 71861-B1030E0 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1260C0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,-,TRIM4# |
1 | ||
| 71910-B1260C0 |
M502,512..S,SC -,TRIM4# |
2 | ||
| 71910-B1220E0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71910-B1220E0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71910-B1260C0 |
M502,512..S,SC B+ｸﾚｰﾝ,-,TRIM4# |
1 | ||
| 71910-B1220E0 |
M502,512..X -,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,ｶ側 |
2 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,E側 |
2 | ||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,GREGE,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,GREGE,TRIM4#,右側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,ｶ側 |
2 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,E側 |
2 | ||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,GREGE,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,GREGE,TRIM4#,右側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2040 |
M502,512 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B1010E1 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 72413-B1010E2 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B1010E2 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 72462-B1010E1 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B1010E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 72525-B1010E0 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B1040 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73910-B1040 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73910-B1040 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73910-B1040 |
M502,512..G,S,SC |
1 | ||
| 73915 - COVER, SEAT AIR BAG NO.1, RH | ||||
| 73915-B1010 |
M502,512..G,S,SC |
1 | ||
| 73915-B1010 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73915-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73915-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| Common parts | ||||
| 72815-B1010 | ||||
| 90041-05424 | ||||
| 91553-80818 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||

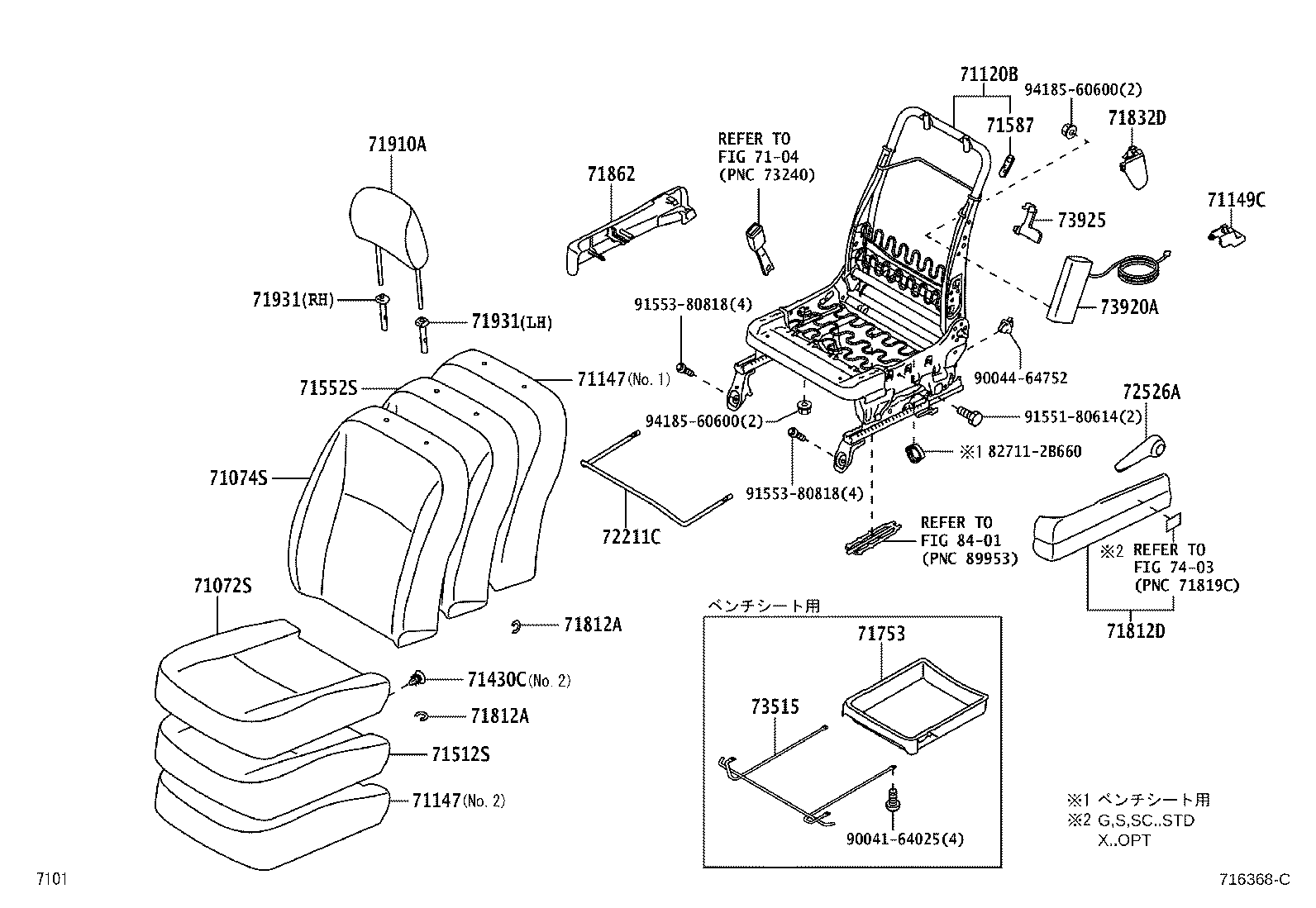

ILLUST NO. 3 OF 3(0812- )
ｼﾞｮｼｭｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1300C0 |
M502,512..S,SC -,TRIM4# |
1 | ||
| 71072-B1250E1 |
M502,512..X -,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1A10C1 |
M502,512..S,SC -,TRIM4# |
1 | ||
| 71074-B1760E1 |
M502,512..X -,TRIM4# |
1 | ||
| 71074-B1770E1 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B1140 |
M502,512 |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-B1010 |
M502,512..S,SC 左側ｼｰﾄ NO.1 |
2 | ||
| 71147-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC 左側ｼｰﾄ NO.2 |
2 | ||
| 71147-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.1 |
1 | ||
| 71147-B1020 |
M502,512..G,X 左側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..G,X 左側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1020 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.2 |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-B1010 |
M502,512..S,SC 左側ｼｰﾄ NO.1 |
2 | ||
| 71147-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ,右側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC 左側ｼｰﾄ NO.2 |
2 | ||
| 71147-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,右側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.1 |
1 | ||
| 71147-B1020 |
M502,512..G,X 左側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1010 |
M502,512..G,X 左側ｼｰﾄ NO.1 |
1 | ||
| 71147-B1020 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),E側ｼｰﾄ NO.2 |
1 | ||
| 71147-B1020 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),右側ｼｰg NO.2 |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-B1030B0 |
M502,512 DK.GRAY,TRIM4# |
1 | ||
| 71430C - CLIP | ||||
| 90044-68028B0 |
M502,512..S,SC B+ｸﾚｰﾝ,DK.GRAY,NO.2 |
2 | ||
| 90044-67537 |
M502,512 NO.1 |
1 | ||
| 90044-68028B0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,mO.2 |
2 | ||
| 90044-68028B0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),DK.GRAY,NO.2 |
2 | ||
| 90044-68028B0 |
M502,512 DK.GRAY,NO.2 |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1160 |
M502,512..S,SC,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1240 |
M502,512..G,S,SC |
1 | ||
| 71506-B1230 |
M502,512..X |
1 | ||
| 71506-B1240 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
2 | ||
| 71587-B1010 |
M502,512..S,SC B+ｸﾚｰﾝ |
2 | ||
| 71587-B1010 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
2 | ||
| 71587-B1010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
2 | ||
| 71587-B1010 |
M502,512..S,SC |
4 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
M502,512..G,S,SC |
1 | ||
| 71753-B2010 |
M502,512..S,SC B+ｸﾚｰﾝ |
1 | ||
| 71753-B2010 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71812-87201 |
M502,512..S,SC B+ｸﾚｰﾝ |
9 | ||
| 71812-87201 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
9 | ||
| 71812-87201 |
M502,512 |
18 | ||
| 71812-87201 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71812-87201 |
M502,512..S,SC B+ｸﾚｰﾝ |
9 | ||
| 71812-87201 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ |
9 | ||
| 71812-87201 |
M502,512 |
18 | ||
| 71812-87201 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
9 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B1030E0 |
M502,512..X GREGE,TRIM4# |
1 | ||
| 71812-B1040E0 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4# |
1 | ||
| 71812-B1040E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B1041B0 |
M502,512 DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1040E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 71862-B1040E0 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1260C0 |
M502,512..S,SC Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,-,TRIM4# |
1 | ||
| 71910-B1260C0 |
M502,512..S,SC -,TRIM4# |
2 | ||
| 71910-B1220E0 |
M502,512..X B+ｸﾚｰﾝ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71910-B1220E0 |
M502,512..X Pﾘﾌﾄｱｯﾌﾟｼｰﾄ&#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),-,TRIM4# |
1 | ||
| 71910-B1260C0 |
M502,512..S,SC B+ｸﾚｰﾝ,-,TRIM4# |
1 | ||
| 71910-B1220E0 |
M502,512..X -,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,ｶ側 |
2 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,E側 |
2 | ||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,GREGE,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,GREGE,TRIM4#,右側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,ｶ側 |
2 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,#−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ),GREGE,TRIM4#,E側 |
2 | ||
| 71930-97202E3 |
M502,512..X ﾛｯｸ付,GREGE,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,DK. BROWN,TRIM4# |
2 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 71931-97202E3 |
M502,512..X ﾛｯｸ無,GREGE,TRIM4#,右側 |
1 | ||
| 71930-97202E5 |
M502,512..S,SC ﾛｯｸ付,Pﾘﾌﾄｱｯﾌﾟｼｰﾄ,DK. BROWN,TRIM4#,左側 |
1 | ||
| 71931-97202E5 |
M502,512..S,SC ﾛｯｸ無,B+ｸﾚｰﾝ,DK. BROWN,TRIM4#,右側 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2040 |
M502,512 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B1010E0 |
M502,512..G,X GREGE,TRIM4# |
1 | ||
| 72526-B1010E1 |
M502,512..S,SC DK. BROWN,TRIM4# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B4010 |
M502,512..G,S,SC |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-B1040 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 73920-B1040 |
M502,512..G,S,SC |
1 | ||
| 73925 - COVER, SEAT AIR BAG NO.1, LH | ||||
| 73925-B1010 |
M502,512..G,S,SC |
1 | ||
| 73925-B1010 |
M502,512..X #−SRSｴｱﾊﾞｯｸﾞ (運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90041-64025 | ||||
| 90044-64752 | ||||
| 91551-80614 | ||||
| 91553-80818 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
