M512E-HQNE (2008)
Toyota Passo Sette
Production
Dec 2008
-
Mar 2012
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

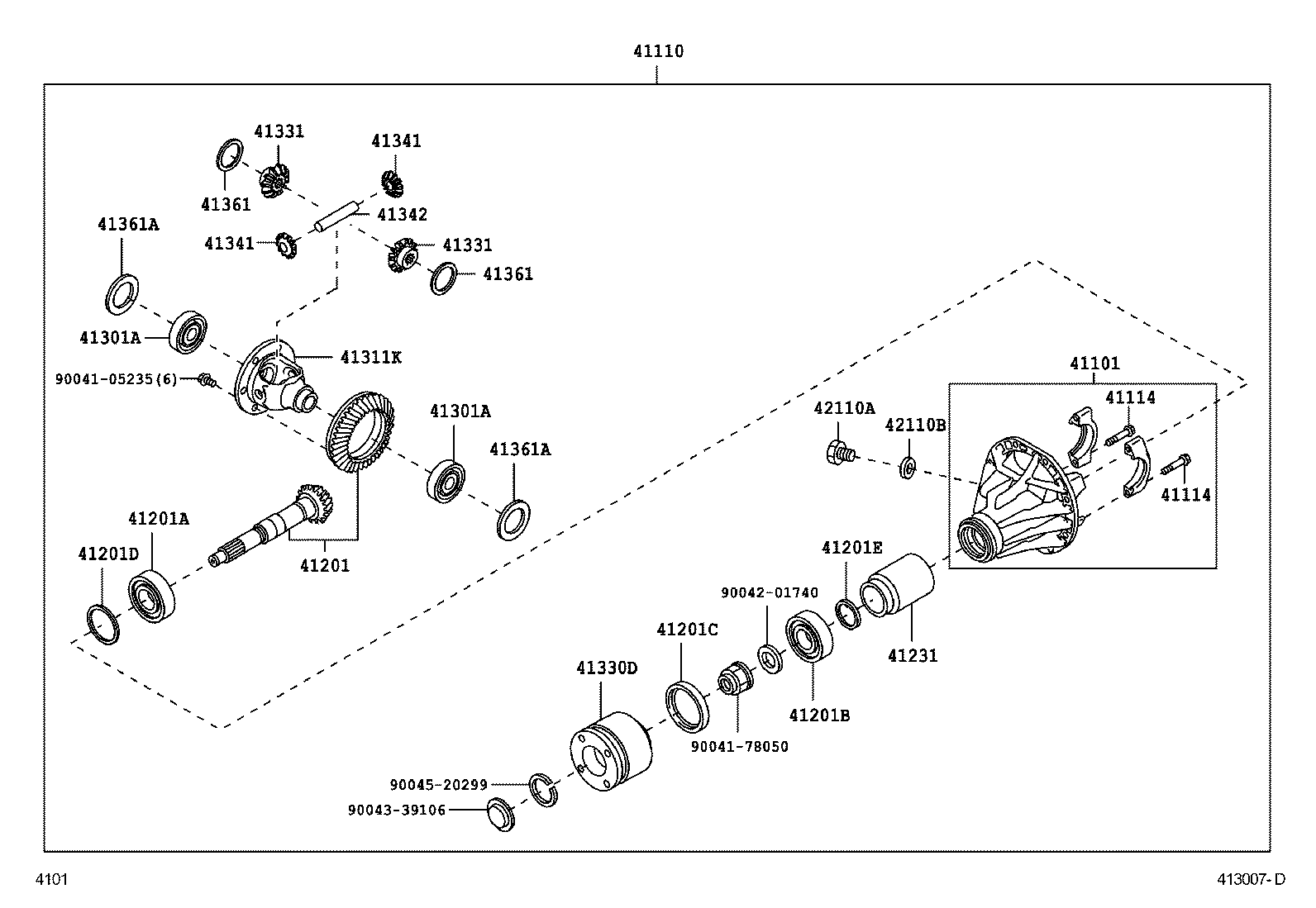

ILLUST NO. 1 OF 2(0812- )M512
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-B2010 |
M512 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-B1071 |
M512 *FGR=43:17=2.529 |
1 | ||
| 41110-B1070 |
M512 *FGR=43:17=2.529 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-B2010 |
M512 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-B2010 |
M512 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-B1010 |
M512 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90043-68020 |
M512 |
1 | ||
| 90043-68041 |
M512 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90043-68040 |
M512 |
1 | ||
| 90043-68028 |
M512 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90043-11418 |
M512 |
1 | ||
| 90043-11279 |
M512 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90045-64049 |
M512 厚さ=0.15 |
1 | ||
| 90045-64050 |
M512 厚さ=0.20 |
1 | ||
| 90045-64052 |
M512 厚さ=0.50 |
1 | ||
| 90045-64051 |
M512 厚さ=0.25 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90045-64530 |
M512 厚さ=0.30 |
1 | ||
| 90045-64532 |
M512 厚さ=0.50 |
1 | ||
| 90045-64531 |
M512 厚さ=0.40 |
1 | ||
| 90045-64529 |
M512 厚さ=0.25 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-97201 |
M512 |
1 | ||
| 41231-B2010 |
M512 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 97103-06007 |
M512 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 97103-06007 |
M512 |
2 | ||
| 41311K - CASE, REAR DIFFERENTIAL | ||||
| 41311-B2010 |
M512 |
1 | ||
| 41330D - COUPLING ASSY, TRANSMISSION | ||||
| 41330-B1051 |
M512 |
1 | ||
| 41330-B1050 |
M512 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-87518 |
M512 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-87518 |
M512 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87509 |
M512 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87509 |
M512 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-B2010 |
M512 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87501 |
M512 厚さ=0.8 |
2 | ||
| 41361-87506 |
M512 厚さ=0.9 |
2 | ||
| 41361-87507 |
M512 厚さ=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87501 |
M512 厚さ=0.8 |
2 | ||
| 41361-87506 |
M512 厚さ=0.9 |
2 | ||
| 41361-87507 |
M512 厚さ=1.0 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90045-64049 |
M512 厚さ=0.15 |
1 | ||
| 90045-64050 |
M512 厚さ=0.20 |
1 | ||
| 90045-64052 |
M512 厚さ=0.50 |
1 | ||
| 90045-64051 |
M512 厚さ=0.25 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90045-64049 |
M512 厚さ=0.15 |
1 | ||
| 90045-64050 |
M512 厚さ=0.20 |
1 | ||
| 90045-64052 |
M512 厚さ=0.50 |
1 | ||
| 90045-64051 |
M512 厚さ=0.25 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90043-41046 |
M512 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90044-30311 |
M512 |
1 | ||
| Common parts | ||||
| 90041-05235 | ||||
| 90041-78050 | ||||
| 90042-01740 | ||||
| 90043-39106 | ||||
| 90045-20299 | ||||

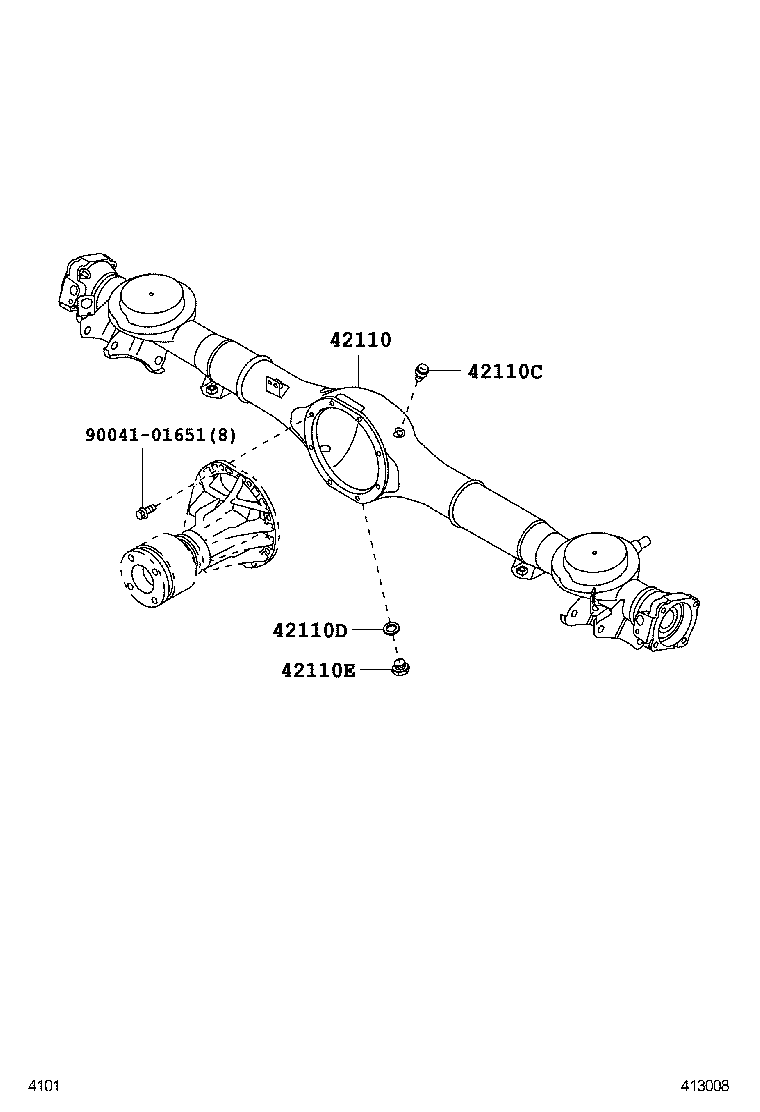

ILLUST NO. 2 OF 2(0812- )M512
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-B1050 |
M512 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90049-15026 |
M512 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 90044-30237 |
M512 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90043-41046 |
M512 |
1 | ||
| Common parts | ||||
| 90041-01651 | ||||
