M512E-HQNE (2008)
Toyota Passo Sette
(0812- )

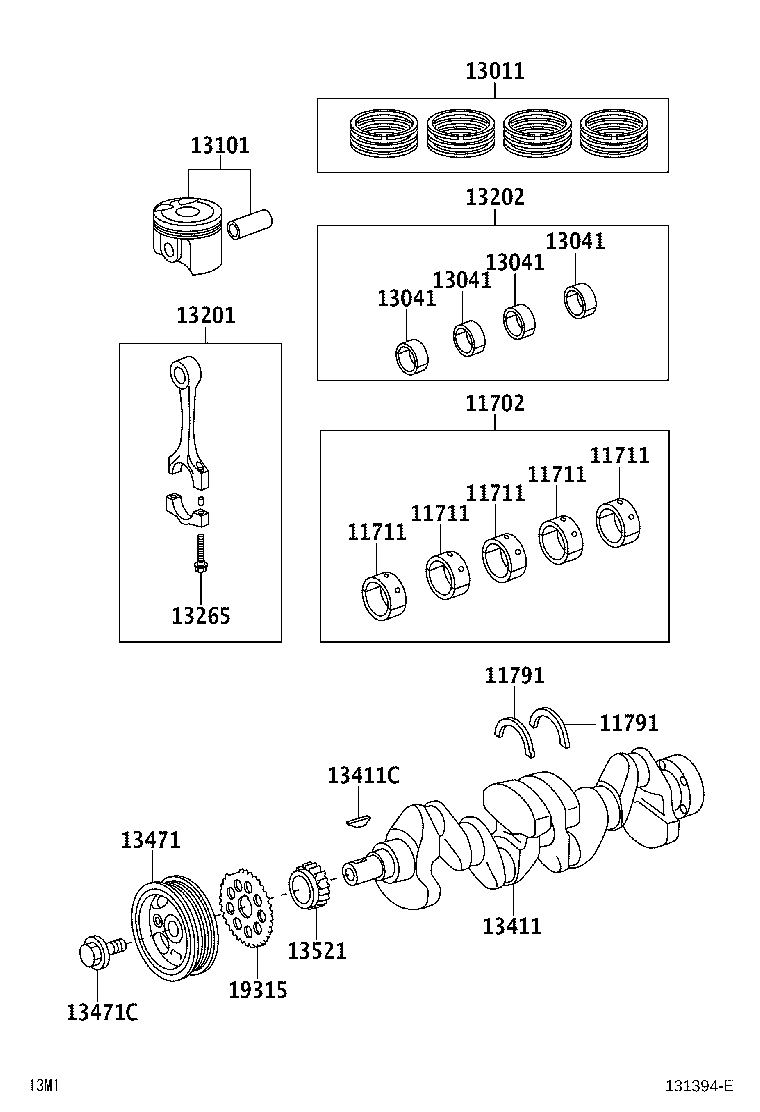

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-B1021 |
3SZVE..M502,512 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-B102104 |
3SZVE..M502,512 MARK4 |
5 | ||
| 11701-B102105 |
3SZVE..M502,512 MARK5 |
5 | ||
| 11701-B102103 |
3SZVE..M502,512 MARK3 |
5 | ||
| 11701-B102102 |
3SZVE..M502,512 MARK2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-B102104 |
3SZVE..M502,512 MARK4 |
5 | ||
| 11701-B102105 |
3SZVE..M502,512 MARK5 |
5 | ||
| 11701-B102103 |
3SZVE..M502,512 MARK3 |
5 | ||
| 11701-B102102 |
3SZVE..M502,512 MARK2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-B102104 |
3SZVE..M502,512 MARK4 |
5 | ||
| 11701-B102105 |
3SZVE..M502,512 MARK5 |
5 | ||
| 11701-B102103 |
3SZVE..M502,512 MARK3 |
5 | ||
| 11701-B102102 |
3SZVE..M502,512 MARK2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-B102104 |
3SZVE..M502,512 MARK4 |
5 | ||
| 11701-B102105 |
3SZVE..M502,512 MARK5 |
5 | ||
| 11701-B102103 |
3SZVE..M502,512 MARK3 |
5 | ||
| 11701-B102102 |
3SZVE..M502,512 MARK2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-B102104 |
3SZVE..M502,512 MARK4 |
5 | ||
| 11701-B102105 |
3SZVE..M502,512 MARK5 |
5 | ||
| 11701-B102103 |
3SZVE..M502,512 MARK3 |
5 | ||
| 11701-B102102 |
3SZVE..M502,512 MARK2 |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11792-B1020 |
3SZVE..M502,512 O/S 0.125,ﾘﾍﾟｱ |
2 | ||
| 11793-B1020 |
3SZVE..M502,512 O/S 0.25,ﾘﾍﾟｱ |
2 | ||
| 11791-B1020 |
3SZVE..M502,512 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11792-B1020 |
3SZVE..M502,512 O/S 0.125,ﾘﾍﾟｱ |
2 | ||
| 11793-B1020 |
3SZVE..M502,512 O/S 0.25,ﾘﾍﾟｱ |
2 | ||
| 11791-B1020 |
3SZVE..M502,512 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-B1020 |
3SZVE..M502,512 STD |
1 | ||
| 13013-B1020 |
3SZVE..M502,512 O/S 0.50,ﾘﾍﾟｱ |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-B1021 |
3SZVE..M502,512 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-B1021 |
3SZVE..M502,512 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-B1021 |
3SZVE..M502,512 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-B1021 |
3SZVE..M502,512 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-B1060 |
3SZVE..M502,512 O/S 0.50,ﾘﾍﾟｱ |
4 | ||
| 13101-B1021 |
3SZVE..M502,512 STD |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-B1021 |
3SZVE..M502,512 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-B1021 |
3SZVE..M502,512 U/S 0.25,ﾘﾍﾟｱ |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-97401 |
3SZVE..M502,512 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-B1020 |
3SZVE..M502,512 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90042-80034 |
3SZVE..M502,512 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-23030 |
3SZVE..M502,512 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90041-05429 |
3SZVE..M502,512 |
1 | ||
| 90041-05445 |
3SZVE..M502,512 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-23030 |
3SZVE..M502,512 |
1 | ||
| 13521-B1020 |
3SZVE..M502,512 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-B0010 |
3SZVE..M502,512 |
1 | ||
