M512E-HQGE (2008)
Toyota Passo Sette
Production
Dec 2008
-
Mar 2012
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0812- )

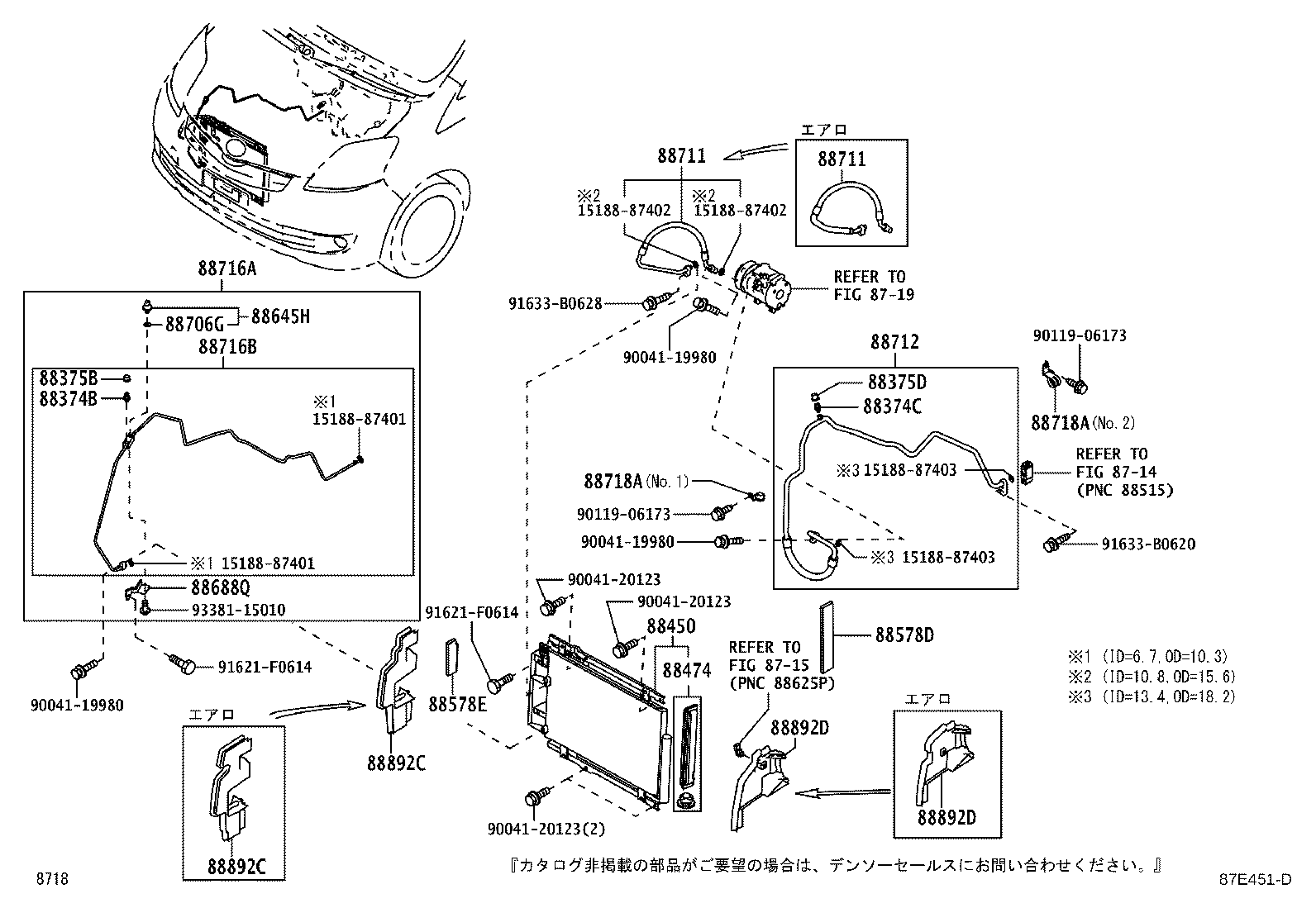

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
M502,512 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
M502,512 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87603 |
M502,512 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87601 |
M502,512 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-B1060 |
M502,512 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
M502,512 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-B1340 |
M502,512 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-B1350 |
M502,512 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
M502,512 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-B1060 |
M502,512 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 15188-B5090 |
M502,512 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B1100 |
M502,512..G,X |
1 | ||
| 88711-B1170 |
M502,512..S,SC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B1100 |
M502,512..G,X |
1 | ||
| 88711-B1170 |
M502,512..S,SC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B1150 |
M502,512 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-B1160 |
M502,512 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-B1220 |
M502,512 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B1050 |
M502,512 NO.1 |
1 | ||
| 88718-B1060 |
M502,512 NO.2 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B1050 |
M502,512 NO.1 |
1 | ||
| 88718-B1060 |
M502,512 NO.2 |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-B1200 |
M502,512..S,SC |
1 | ||
| 88892-B1140 |
M502,512..G,X |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-B1200 |
M502,512..S,SC |
1 | ||
| 88892-B1140 |
M502,512..G,X |
1 | ||
| 88892D - PLATE, CONDENSER, NO.2 | ||||
| 88892-B1150 |
M502,512..G,X |
1 | ||
| 88892-B1210 |
M502,512..S,SC |
1 | ||
| 88892D - PLATE, CONDENSER, NO.2 | ||||
| 88892-B1150 |
M502,512..G,X |
1 | ||
| 88892-B1210 |
M502,512..S,SC |
1 | ||
| Common parts | ||||
| 15188-87401 | ||||
| 15188-87402 | ||||
| 15188-87403 | ||||
| 90041-19980 | ||||
| 90041-20123 | ||||
| 90119-06173 | ||||
| 91621-F0614 | ||||
| 91633-B0620 | ||||
| 91633-B0628 | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8715 | ||||
| 8719 | ||||
