M512E-HQGE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

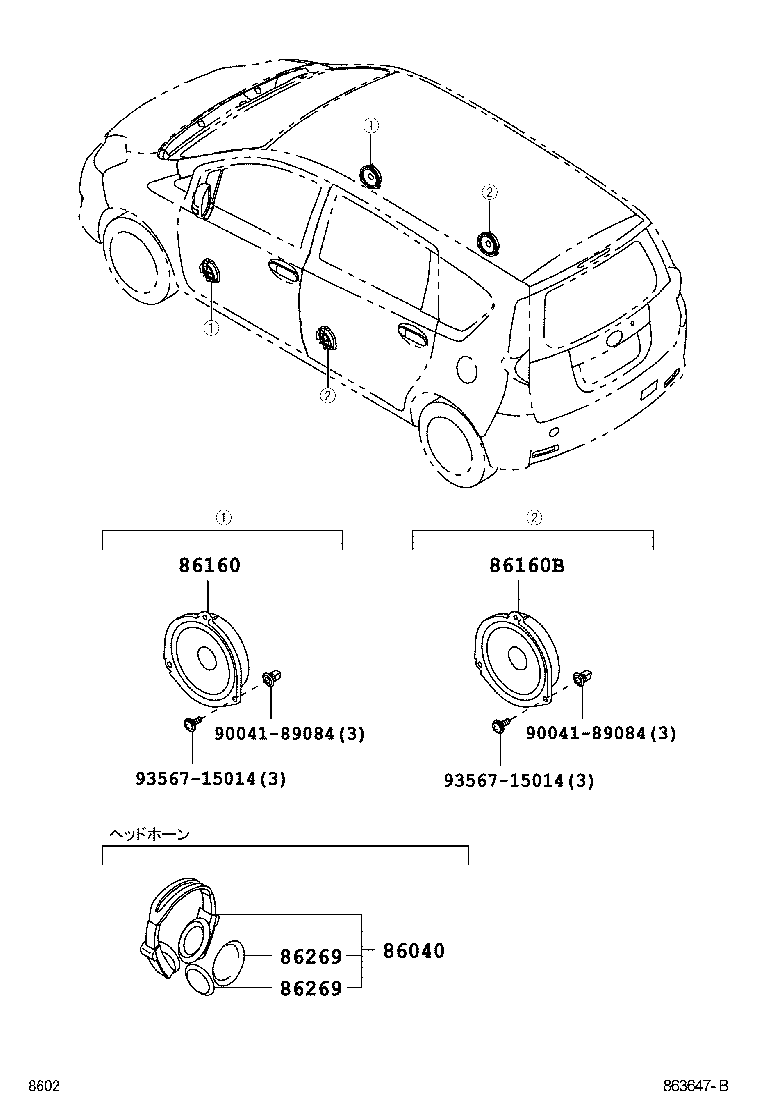

Click highlighted areas on diagram

diagram 86040 86160 86160B 86269 86269 9004189084 9004189084 9356715014 9356715014
Part # Description Qty Price
86040 - HEADPHONE ASSY, STEREO
86040-B1010

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-B2030

M502,512

 2
86160B - SPEAKER ASSY, REAR
86160-B2030

M502,512

 2
86269 - PAD, SPEAKER
86269-B1070

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 8
86269-B1070

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 4
86269 - PAD, SPEAKER
86269-B1070

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 8
86269-B1070

M502,512

有り(ﾘﾔ席 ﾓﾆﾀｰ)

 4
Common parts
90041-89084
93567-15014
