M512E-HQGE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012

Engine 3SZVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0812- )

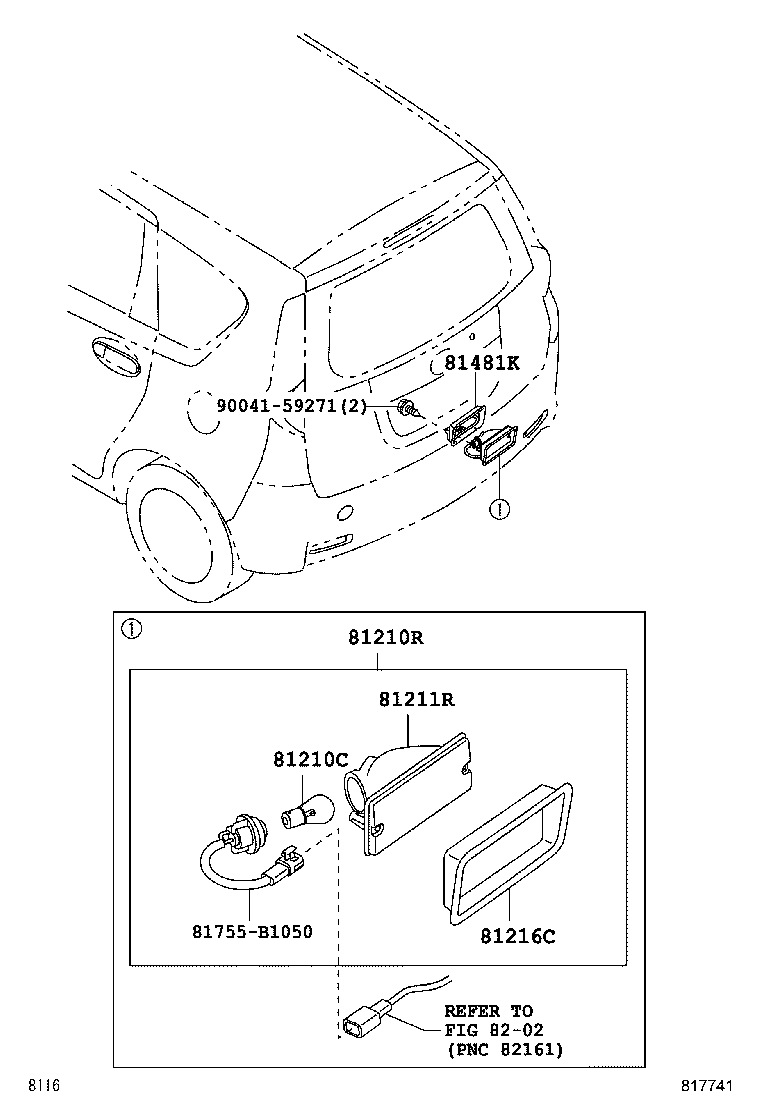

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81210C - BULB, REAR FOG LAMP
90049-51131	M502,512 12V 21W,寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
81210R - LAMP ASSY, REAR FOG
81480-B1040	M502,512..G,X 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 03/2012	1
81480-B1050	M502,512..S,SC 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 03/2012	1
81211R - LENS, REAR FOG LAMP
81211-B1030	M502,512..G,X 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
81211-B1040	M502,512..S,SC 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
81216C - RIM, REAR FOG LAMP, RH, NO.1
81216-B1060	M502,512..G,X 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
81216-B1070	M502,512..S,SC 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
81481K - BRACKET, REAR FOG LAMP
81481-B1140	M502,512..S,SC 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
81481-B1120	M502,512..G,X 寒冷地仕様&有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ)	12/2008 - 12/2999	1
Common parts
81755-B1050
90041-59271
Linked diagrams
8202
