M512E-HQGE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

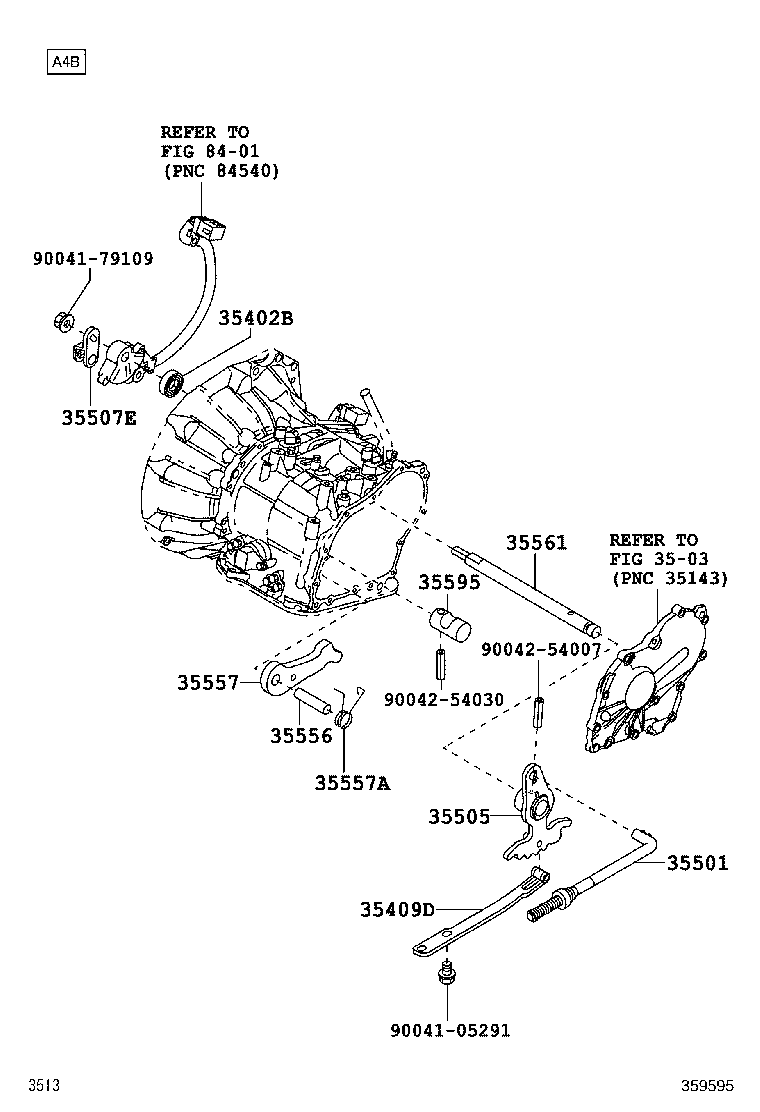

Click highlighted areas on diagram

A4B

diagram 3503 35402B 35409D 35501 35505 35507E 35556 35557 35557A 35561 35595 8401 9004105291 9004179109 9004254007 9004254030
Part # Description Qty Price
35402B - SEAL,OIL(FOR MANUAL VALVE)
90043-11256

M502,512

 1
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-97206

M502,512

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-97202

M502,512

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-97202

M502,512

 1
35507E - LEVER,TRANSMISSION CONTROL SHAFT
35507-97201

M502,512

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-87202

M502,512

 1
35557 - PAWL, PARKING LOCK
35557-97201

M502,512

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90045-08389

M502,512

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-97201

M502,512

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-87203

M502,512

 1
Common parts
90041-05291
90041-79109
90042-54007
90042-54030
Linked diagrams
3503
8401
