M512E-HQEE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

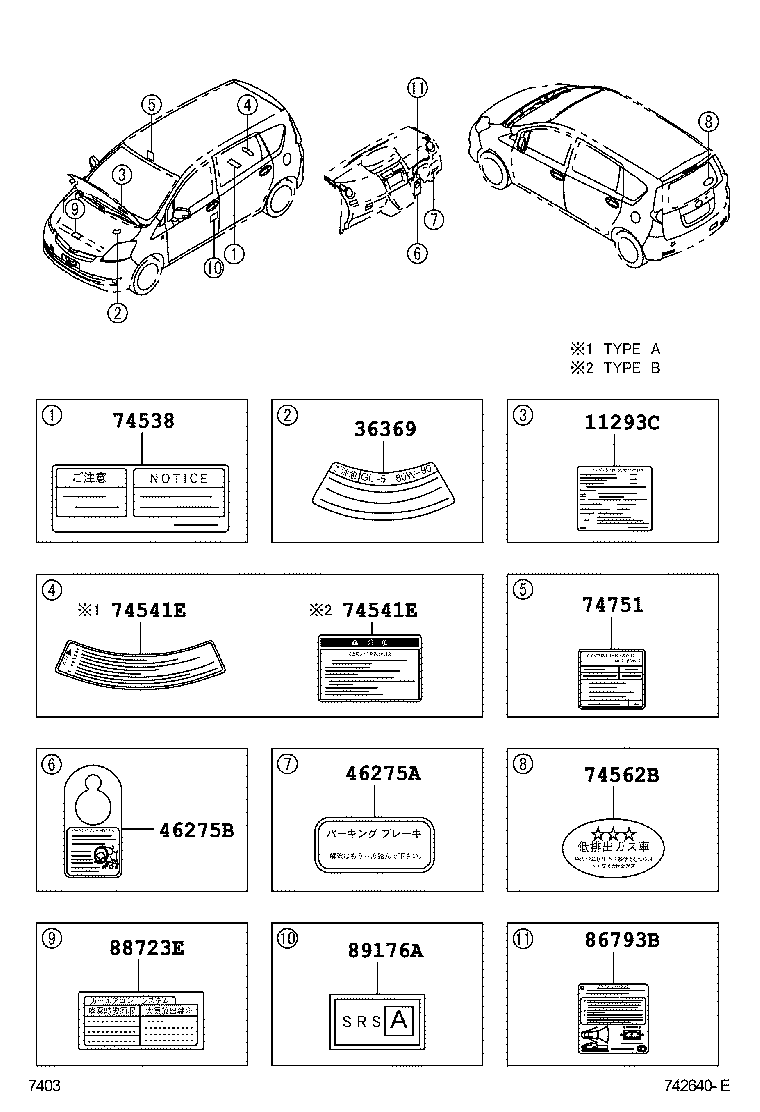

ILLUST NO. 1 OF 2(0812- )

Click highlighted areas on diagram

diagram 11293C 36369 46275A 46275B 74538 74541E 74541E 74562B 74751 86793B 88723E 89176A
Part # Description Qty Price
11293C - LABEL, TUNE-UP SPECIFICATION INFORMATION
11293-B1260

3SZVE..M502,512

 1
36369 - LABEL, TRANSFER INFORMATION
36369-B1010

M512

 1
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-B2010

M502,512

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

M502,512

 1
74562B - LABEL, EMISSION INFORMATION
75459-B2030

M502,512

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-B1300

M512

 1
86793B - LABEL, TELEVISION CAMERA INFORMATION
86793-52010

M502,512

ｵｰﾃﾞｨｵ−07ﾅﾋﾞHDD*4SP

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-B1030

M502,512

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

M502,512

 1

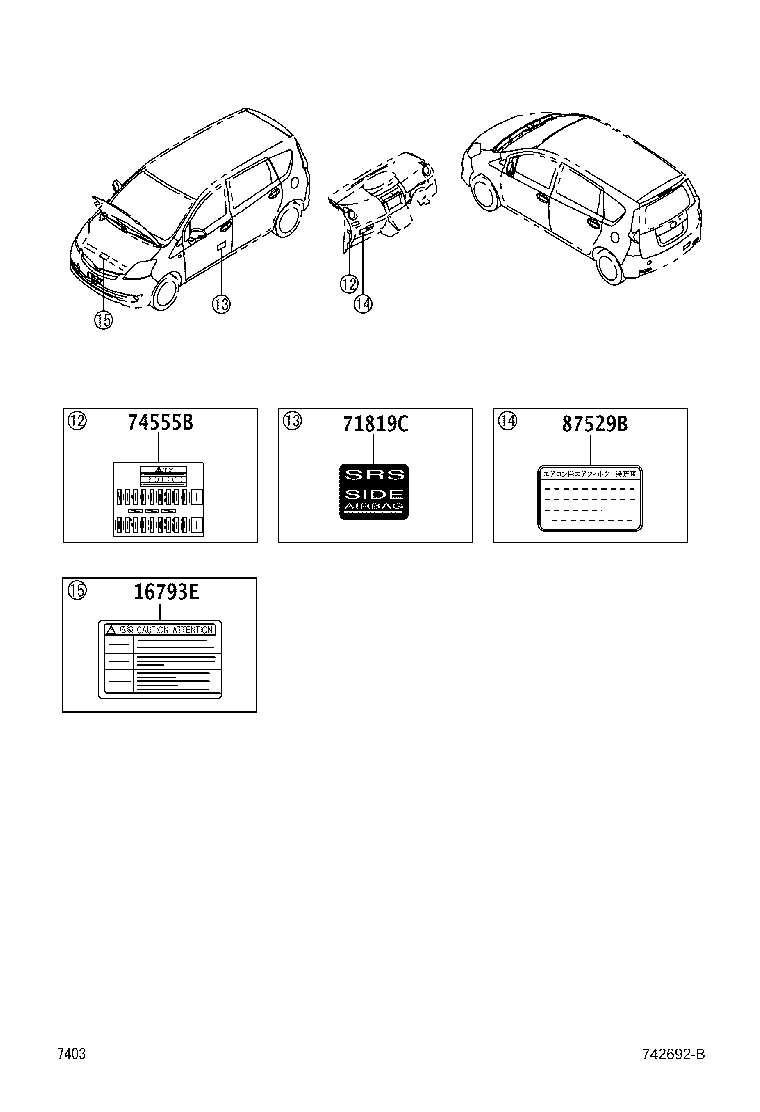

ILLUST NO. 2 OF 2(0812- )

Click highlighted areas on diagram

diagram 16793E 71819C 74555B 87529B
Part # Description Qty Price
16793E - LABEL, COOLING FAN CAUTION
41991-B1010

3SZVE..M502,512

 1
71819C - LABEL, SIDE AIR BAG NAME
71825-97201

M502,512..G,S,SC

 1
74555B - PLATE, FUSE BLOCK CAUTION
82683-B1050

M502,512

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-97201

M502,512

 1
