M512E-HQEE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

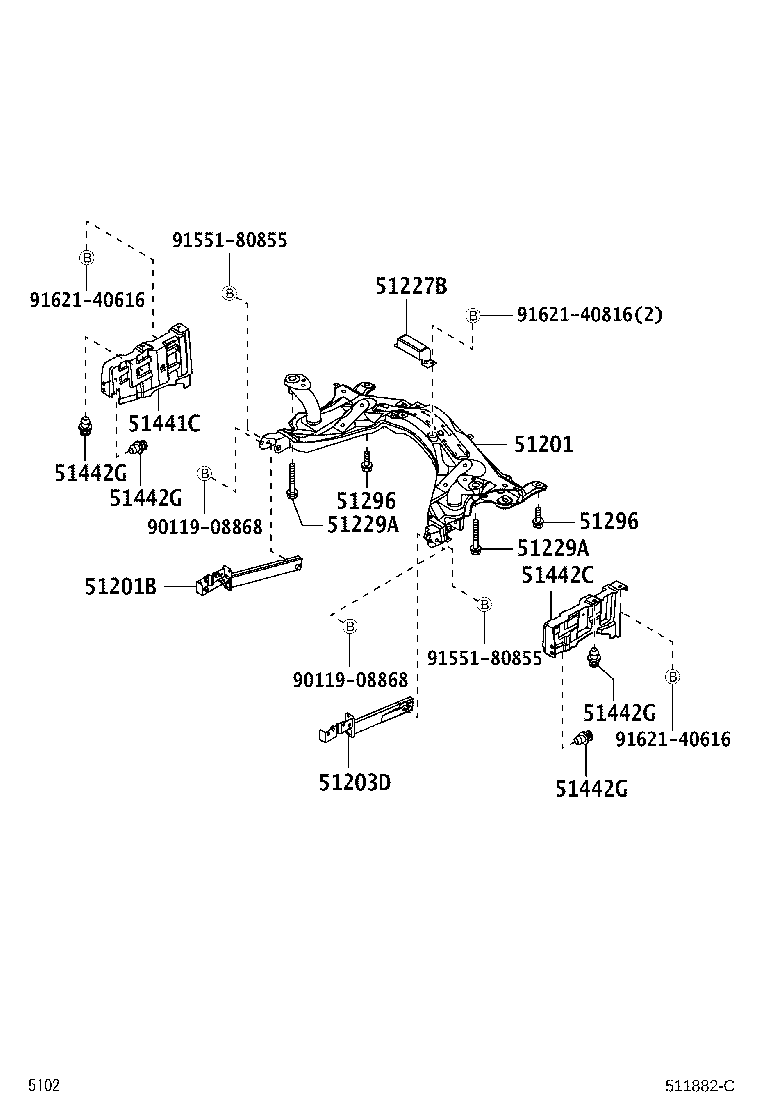

ILLUST NO. 2 OF 2(0812- )M512

Click highlighted areas on diagram

4WD

diagram 51201 51201B 51203D 51227B 51229A 51229A 51296 51296 51441C 51442C 51442G 51442G 51442G 51442G 9011908868 9011908868 9155180855 9155180855 9162140616 9162140616 9162140816
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-B1101

M512

 1
51201-B1100

M512

 1
51201B - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH
51205-B1020

M502,512

 1
51203D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH
51206-B1020

M502,512

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51204-B1010

M512

 1
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-01638

M502,512

 2
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-01638

M502,512

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91672-01025

M502,512

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91672-01025

M502,512

 2
51441C - COVER, ENGINE UNDER, RH
51441-B1040

M502,512

 1
51442C - COVER, ENGINE UNDER, LH
51442-B1030

M502,512

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68320

M502,512

 4
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68320

M502,512

 4
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68320

M502,512

 4
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68320

M502,512

 4
Common parts
90119-08868
91551-80855
91621-40616
91621-40816
