M502E-HQNE (2008)
Toyota Passo Sette

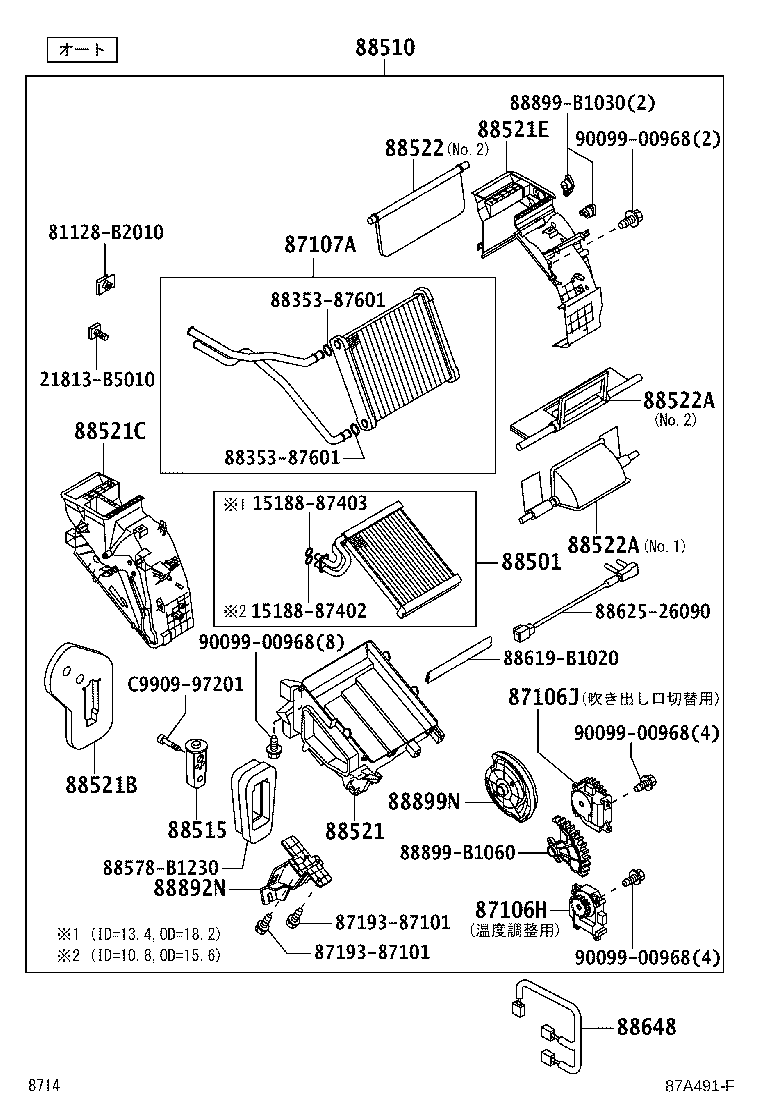

ILLUST NO. 2 OF 5(0812- )G,SC,X
ﾏﾆｭｱﾙ ｴｱｺﾝ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-B1020 |
M502,512 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88304-B1020 |
M502,512 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-B1040 |
M502,512..G,S |
1 | ||
| 88510-B1030 |
M502,512..G,S 寒冷地仕様 |
1 | ||
| 88510-B1010 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 88510-B1020 |
M502,512..SC,X |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-97502 |
M502,512 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 87311-B1090 |
M502,512 |
1 | ||
| 88521B - PACKING (FOR COOLER UNIT CASE) | ||||
| 88629-97202 |
M502,512 |
1 | ||
| 88521C - CASE, COOLING UNIT | ||||
| 87311-B1070 |
M502,512 |
1 | ||
| 87311-B1060 |
M502,512 寒冷地仕様 |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 87311-B1100 |
M502,512..G,S 寒冷地仕様 |
1 | ||
| 87312-B1050 |
M502,512..SC,X |
1 | ||
| 87311-B1110 |
M502,512..G,S |
1 | ||
| 87312-B1040 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-B1010 |
M502,512 NO.2 |
1 | ||
| 88522-B1040 |
M502,512 NO.1 |
1 | ||
| 88522A - DOOR, COOLING UNIT NO.2 | ||||
| 88522-B1030 |
M502,512 NO.2 |
1 | ||
| 88522-B1020 |
M502,512 NO.1 |
1 | ||
| 88522A - DOOR, COOLING UNIT NO.2 | ||||
| 88522-B1030 |
M502,512 NO.2 |
1 | ||
| 88522-B1020 |
M502,512 NO.1 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-B1030 |
M502,512 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88892-B1040 |
M502,512..SC,X |
1 | ||
| 88892-B1060 |
M502,512..G,S |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88892-B1050 |
M502,512..SC,X |
1 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-87403 | ||||
| 21813-B5010 | ||||
| 81128-B2010 | ||||
| 87193-87101 | ||||
| 88353-87601 | ||||
| 88578-B1230 | ||||
| 88619-B1020 | ||||
| 88625-26090 | ||||
| 88899-B1020 | ||||
| 88899-B1030 | ||||
| 90099-00968 | ||||
| C9909-97201 | ||||
| Linked diagrams | ||||
| 8715 | ||||

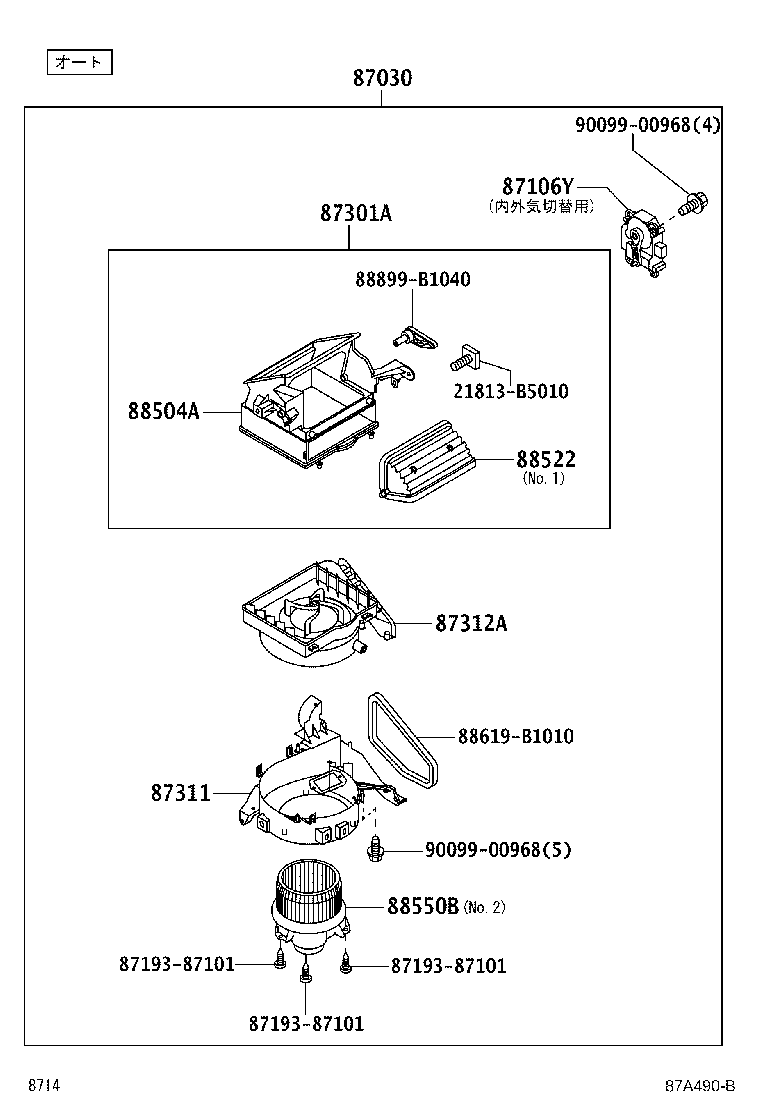

ILLUST NO. 5 OF 5(0812- )G,S
ｵｰﾄ ｴｱｺﾝ ﾌﾞﾛﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-B1050 |
M502,512..SC,X |
1 | ||
| 87030-B1090 |
M502,512..G,S |
1 | ||
| 87030-B1120 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) | ||||
| 88550-B1030 |
M502,512..G,S |
1 | ||
| 87301A - CASE SUB-ASSY, HEATER | ||||
| 87303-B1060 |
M502,512..SC,X |
1 | ||
| 87303-B1110 |
M502,512..G,S |
1 | ||
| 87311 - CASE, HEATER, NO.1 | ||||
| 87303-B1100 |
M502,512..G,S |
1 | ||
| 87103-B1050 |
M502,512..SC,X |
1 | ||
| 87311-B1050 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 87312A - CASE, HEATER,NO.2 | ||||
| 87312-B1030 |
M502,512 |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87303-B1080 |
M502,512..SC,X |
1 | ||
| 87303-B1070 |
M502,512..G,S |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-B1010 |
M502,512 NO.2 |
1 | ||
| 88522-B1040 |
M502,512 NO.1 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B1040 |
M502,512..G,S |
1 | ||
| 88550-B1020 |
M502,512..SC,X |
1 | ||
| Common parts | ||||
| 21813-B5010 | ||||
| 87193-87101 | ||||
| 88619-B1010 | ||||
| 88899-B1040 | ||||
| 90099-00968 | ||||
ILLUST NO. 4 OF 5(0812- )G,S
ｵｰﾄ ｴｱｺﾝ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 88550-B1050 |
M502,512..G,S |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 88550-B1060 |
M502,512..G,S |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-B1020 |
M502,512 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88304-B1020 |
M502,512 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-B1040 |
M502,512..G,S |
1 | ||
| 88510-B1030 |
M502,512..G,S 寒冷地仕様 |
1 | ||
| 88510-B1010 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 88510-B1020 |
M502,512..SC,X |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-97502 |
M502,512 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 87311-B1090 |
M502,512 |
1 | ||
| 88521B - PACKING (FOR COOLER UNIT CASE) | ||||
| 88629-97202 |
M502,512 |
1 | ||
| 88521C - CASE, COOLING UNIT | ||||
| 87311-B1070 |
M502,512 |
1 | ||
| 87311-B1060 |
M502,512 寒冷地仕様 |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 87311-B1100 |
M502,512..G,S 寒冷地仕様 |
1 | ||
| 87312-B1050 |
M502,512..SC,X |
1 | ||
| 87311-B1110 |
M502,512..G,S |
1 | ||
| 87312-B1040 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-B1010 |
M502,512 NO.2 |
1 | ||
| 88522-B1040 |
M502,512 NO.1 |
1 | ||
| 88522A - DOOR, COOLING UNIT NO.2 | ||||
| 88522-B1030 |
M502,512 NO.2 |
1 | ||
| 88522-B1020 |
M502,512 NO.1 |
1 | ||
| 88522A - DOOR, COOLING UNIT NO.2 | ||||
| 88522-B1030 |
M502,512 NO.2 |
1 | ||
| 88522-B1020 |
M502,512 NO.1 |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-B1010 |
M502,512..G,S |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-B1030 |
M502,512 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88892-B1040 |
M502,512..SC,X |
1 | ||
| 88892-B1060 |
M502,512..G,S |
1 | ||
| Common parts | ||||
| 15188-87402 | ||||
| 15188-87403 | ||||
| 21813-B5010 | ||||
| 81128-B2010 | ||||
| 87193-87101 | ||||
| 88353-87601 | ||||
| 88578-B1230 | ||||
| 88619-B1020 | ||||
| 88625-26090 | ||||
| 88899-B1030 | ||||
| 88899-B1060 | ||||
| 90099-00968 | ||||
| C9909-97201 | ||||

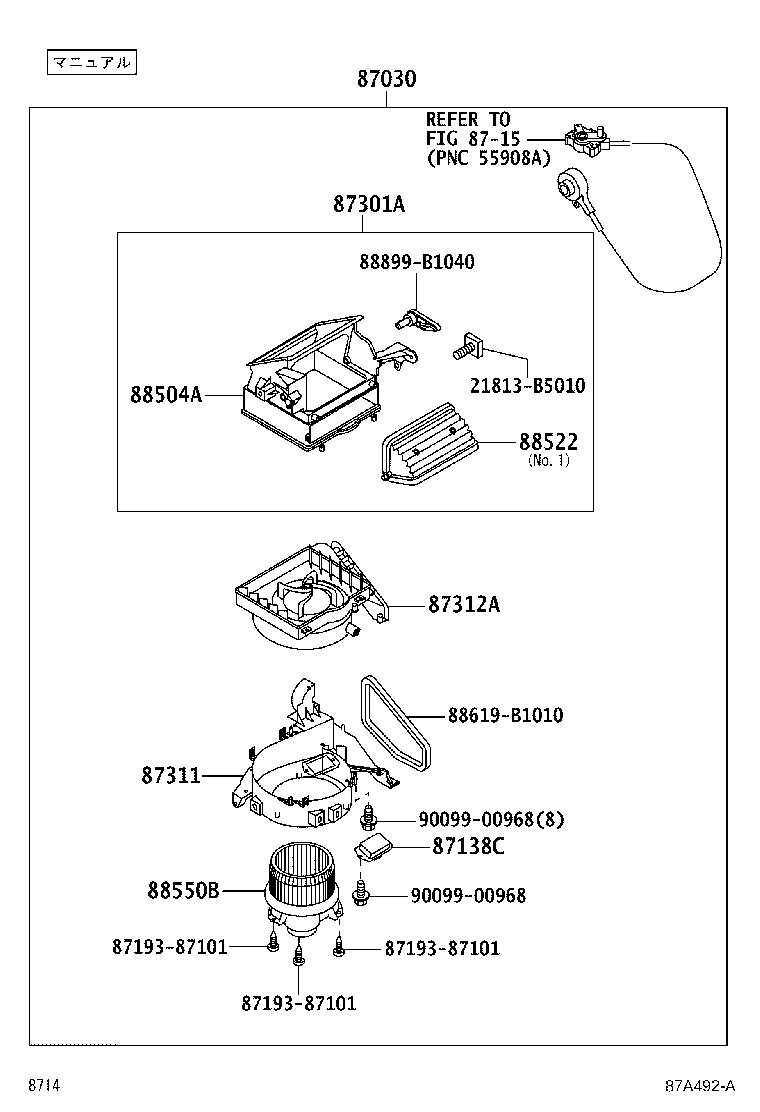

ILLUST NO. 3 OF 5(0812- )G,SC,X
ﾏﾆｭｱﾙ ｴｱｺﾝ ﾌﾞﾛﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-B1050 |
M502,512..SC,X |
1 | ||
| 87030-B1090 |
M502,512..G,S |
1 | ||
| 87030-B1120 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-B1010 |
M502,512..SC,X |
1 | ||
| 87301A - CASE SUB-ASSY, HEATER | ||||
| 87303-B1060 |
M502,512..SC,X |
1 | ||
| 87303-B1110 |
M502,512..G,S |
1 | ||
| 87311 - CASE, HEATER, NO.1 | ||||
| 87303-B1100 |
M502,512..G,S |
1 | ||
| 87103-B1050 |
M502,512..SC,X |
1 | ||
| 87311-B1050 |
M502,512..SC,X 寒冷地仕様 |
1 | ||
| 87312A - CASE, HEATER,NO.2 | ||||
| 87312-B1030 |
M502,512 |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87303-B1080 |
M502,512..SC,X |
1 | ||
| 87303-B1070 |
M502,512..G,S |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-B1010 |
M502,512 NO.2 |
1 | ||
| 88522-B1040 |
M502,512 NO.1 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B1040 |
M502,512..G,S |
1 | ||
| 88550-B1020 |
M502,512..SC,X |
1 | ||
| Common parts | ||||
| 21813-B5010 | ||||
| 87193-87101 | ||||
| 88619-B1010 | ||||
| 88899-B1040 | ||||
| 90099-00968 | ||||
| Linked diagrams | ||||
| 8715 | ||||

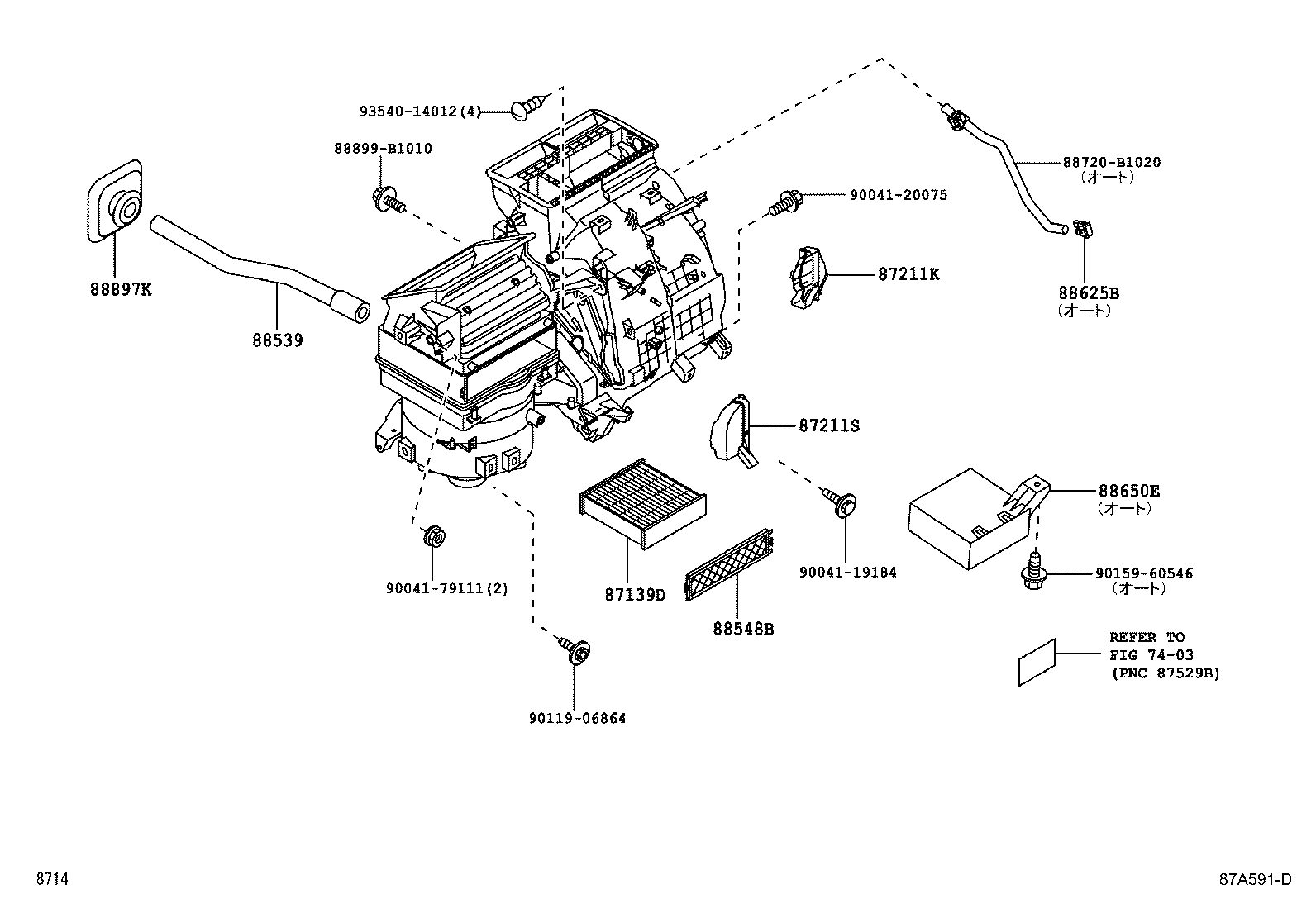

ILLUST NO. 1 OF 5(0812- )
ｵｰﾄ ｴｱｺﾝ&ﾏﾆｭｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50060 |
M502,512 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-B1020 |
M502,512 |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87211-B1010 |
M502,512 |
1 | ||
| 87211S - DUCT, AIR | ||||
| 87212-B1010 |
M502,512 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-B1030 |
M502,512 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-B1020 |
M502,512 |
1 | ||
| 88548-B1010 |
M502,512 |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-47021 |
M502,512..G,S |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-B1030 |
M502,512..G,S |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-B1020 |
M502,512 |
1 | ||
| Common parts | ||||
| 88720-B1020 | ||||
| 88899-B1010 | ||||
| 90041-19184 | ||||
| 90041-20075 | ||||
| 90041-79111 | ||||
| 90119-06864 | ||||
| 90159-60546 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 7403 | ||||
