M502E-HQNE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

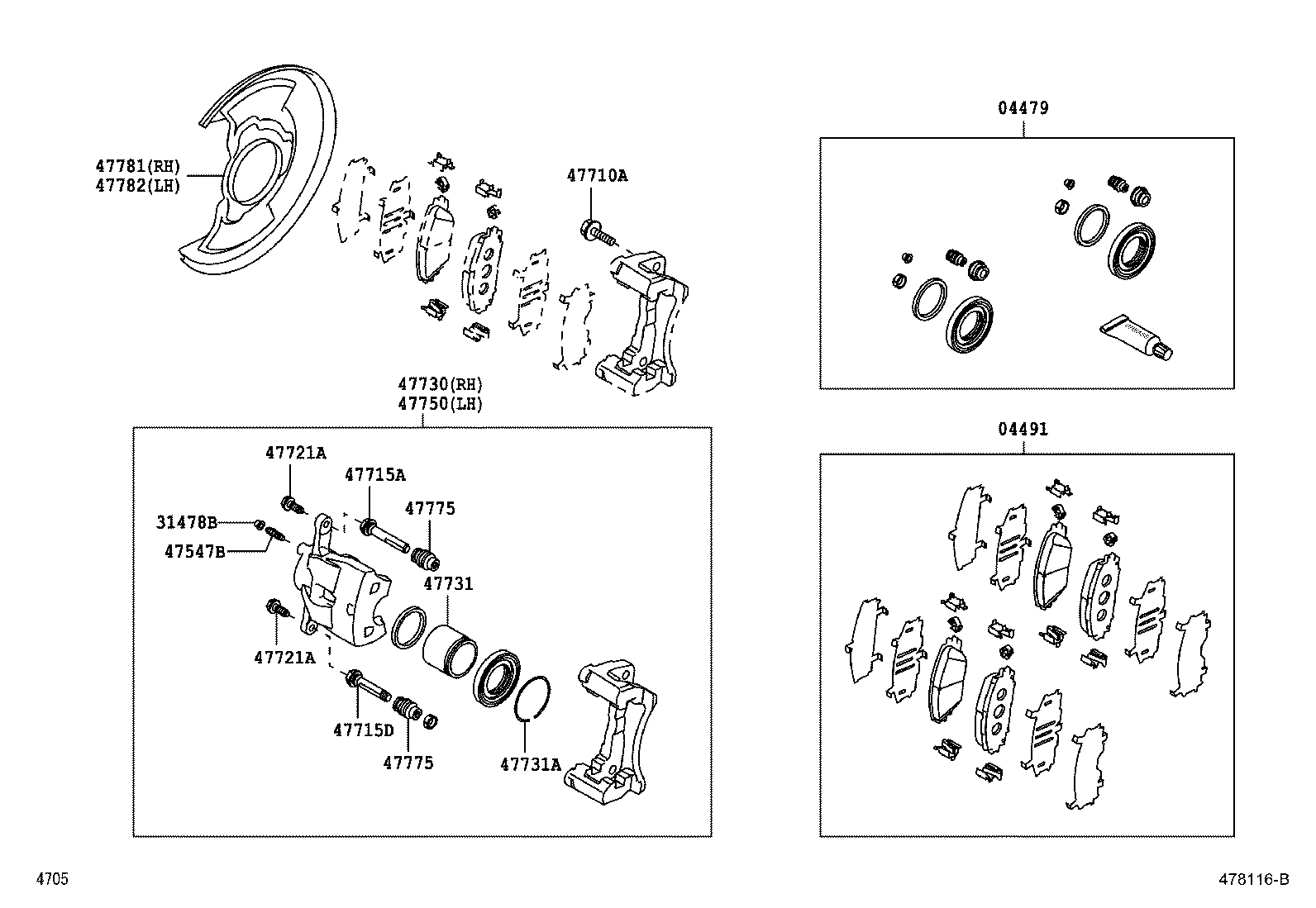

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47715A 47715D 47721A 47721A 47730 47731 47731A 47750 47775 47775 47781 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-B1150

M502

 1
04478-B1160

M502

有り(VSC)

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04465-B1360

M502

有り(VSC)

 1
04465-B1350

M502

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-87501

M502,512

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-87204

M502,512

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90041-05228

M502,512

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-B1030

M502,512

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-B1040

M502,512

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90041-05443

M502,512

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90041-05443

M502,512

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-B1030

M502

 1
47730-B1040

M502

有り(VSC)

 1
47731 - PISTON, FRONT DISC BRAKE
47731-B1030

M502

有り(VSC)

 2
47731-B1020

M502

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90045-22026

M502

有り(VSC)

 2
90045-22025

M502

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-B1040

M502

有り(VSC)

 1
47750-B1030

M502

 1
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-B1020

M502,512

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-B1020

M502,512

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-B1020

M502,512

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47781-B1020

M502,512

 1
