M502E-HQGE (2008)
Toyota Passo Sette
Production
Dec 2008
-
Mar 2012
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

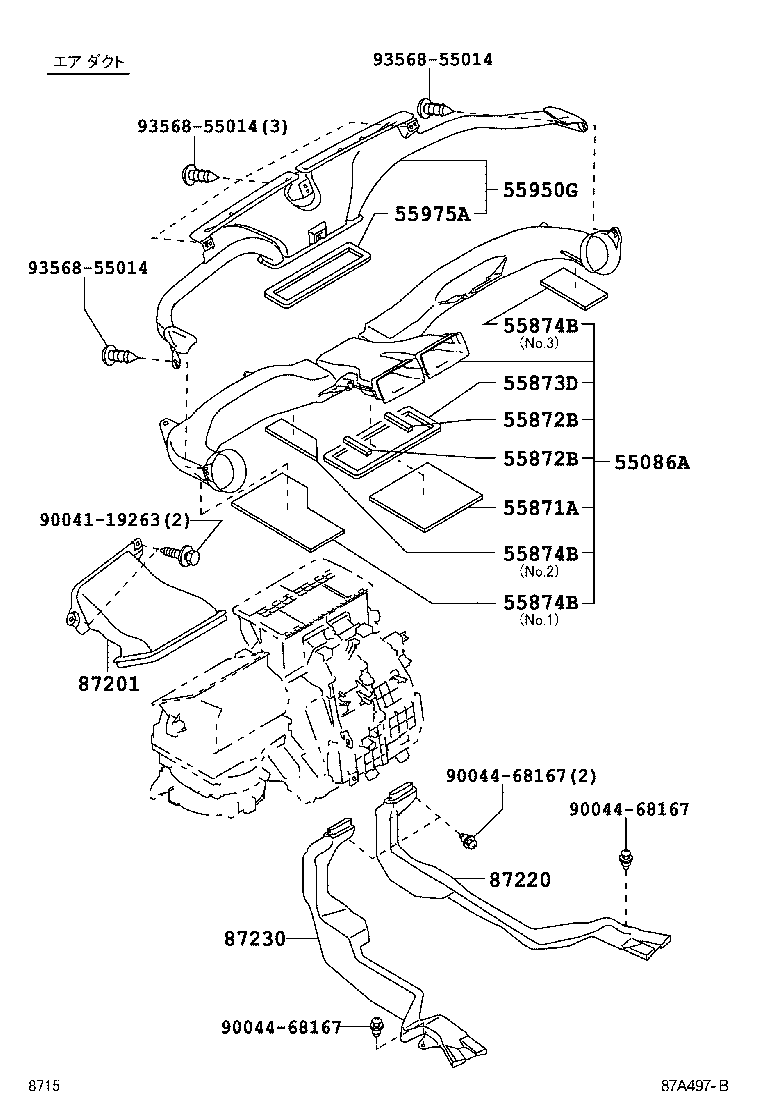

ILLUST NO. 2 OF 3(0812- )
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-B1080 |
M502,512 |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55871-B1030 |
M502,512 |
1 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55872-B1020 |
M502,512 |
2 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55872-B1020 |
M502,512 |
2 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-B1030 |
M502,512 |
1 | ||
| 55874B - SEAL, AIR DUCT, NO.4 | ||||
| 55875-B1010 |
M502,512 NO.2 |
1 | ||
| 55874-B1030 |
M502,512 NO.1 |
1 | ||
| 55876-B1010 |
M502,512 NO.3 |
1 | ||
| 55874B - SEAL, AIR DUCT, NO.4 | ||||
| 55875-B1010 |
M502,512 NO.2 |
1 | ||
| 55874-B1030 |
M502,512 NO.1 |
1 | ||
| 55876-B1010 |
M502,512 NO.3 |
1 | ||
| 55874B - SEAL, AIR DUCT, NO.4 | ||||
| 55875-B1010 |
M502,512 NO.2 |
1 | ||
| 55874-B1030 |
M502,512 NO.1 |
1 | ||
| 55876-B1010 |
M502,512 NO.3 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-B1050 |
M502,512 |
1 | ||
| 55975A - SEAL, DEFROSTER NOZZLE, NO.1 | ||||
| 55975-B1030 |
M502,512 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-B1080 |
M502,512 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-B1090 |
M502,512 寒冷地仕様 |
1 | ||
| 87230 - DUCT ASSY, AIR, HEATER | ||||
| 87230-B1040 |
M502,512 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90041-19263 | ||||
| 90044-68167 | ||||
| 93568-55014 | ||||

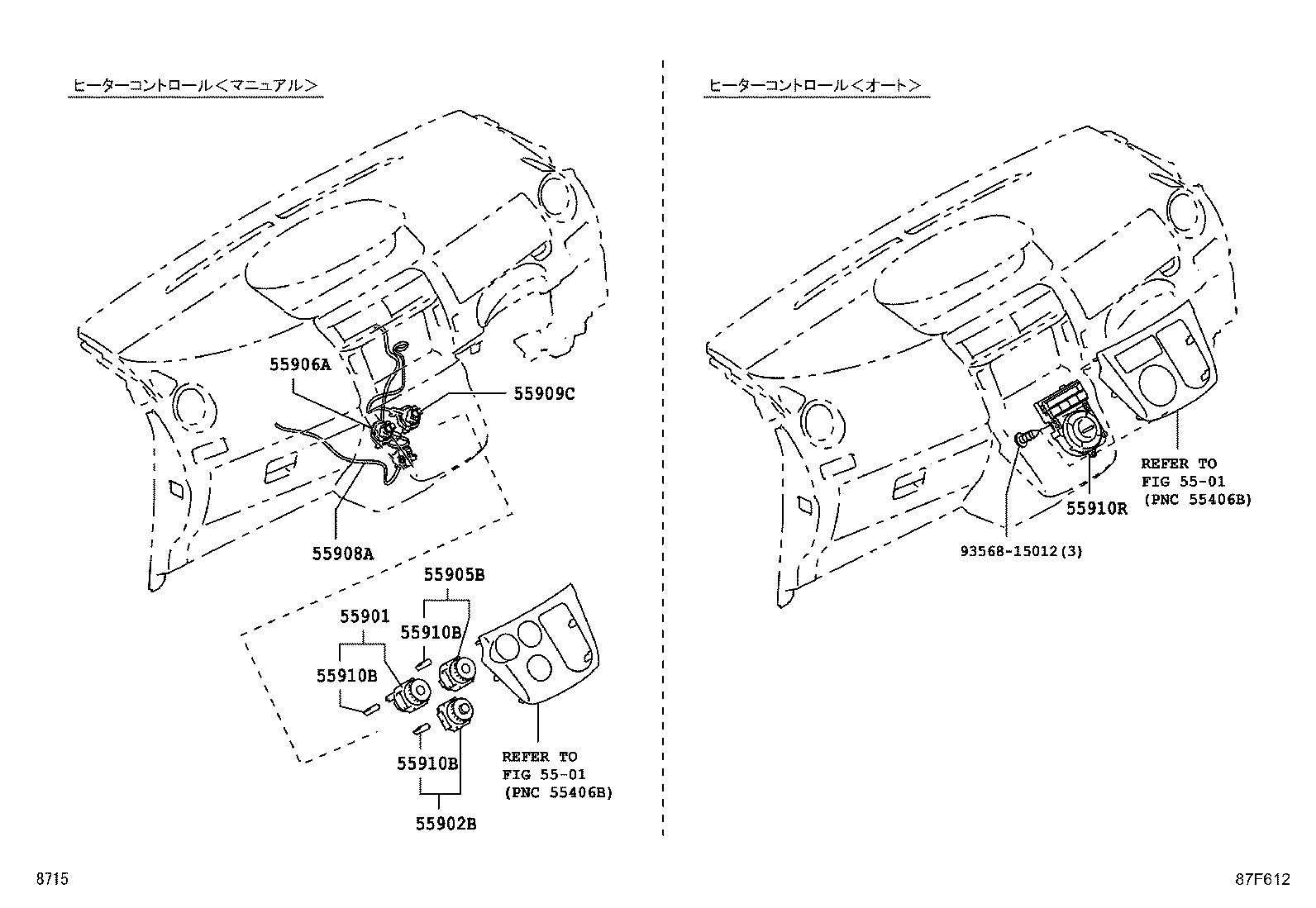

ILLUST NO. 1 OF 3(0812- )
Click highlighted areas on diagram
ﾋｰﾀｰｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-B1040 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-B1100 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55903-B1030 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52130 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01113 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01113 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01113 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
3 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B1100 |
M502,512..G,S |
1 | ||
| Common parts | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 3 OF 3(0812- )
Click highlighted areas on diagram

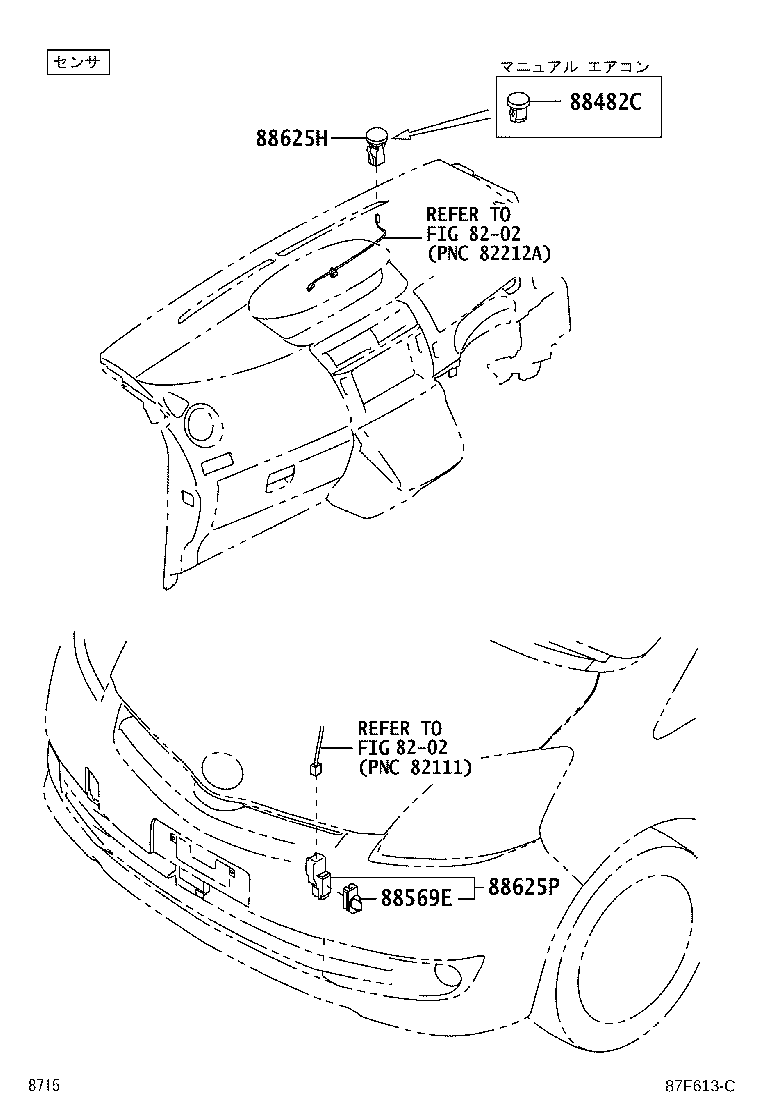

ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88482C - CAP, COOLER | ||||
| 88482-B4010 |
M502,512..G C ﾊﾟｯｹｰｼﾞ |
1 | ||
| 88569E - CLAMP (FOR COOLER THERMISTOR) | ||||
| 82711-1E360 |
M502,512..G,S |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
M502,512..G,S |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-B2090 |
M502,512..G,S |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
