M502E-HQGE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0812- )

Click highlighted areas on diagram

diagram 9004119726 9004119775 9004119775 9004120005 9004120022 9004120203 9004120247 9161261040 9161961245 9161961265
Part # Description Qty Price
Common parts
90041-19726
90041-19775
90041-20005
90041-20022
90041-20203
90041-20247
91612-61040
91619-61245
91619-61265

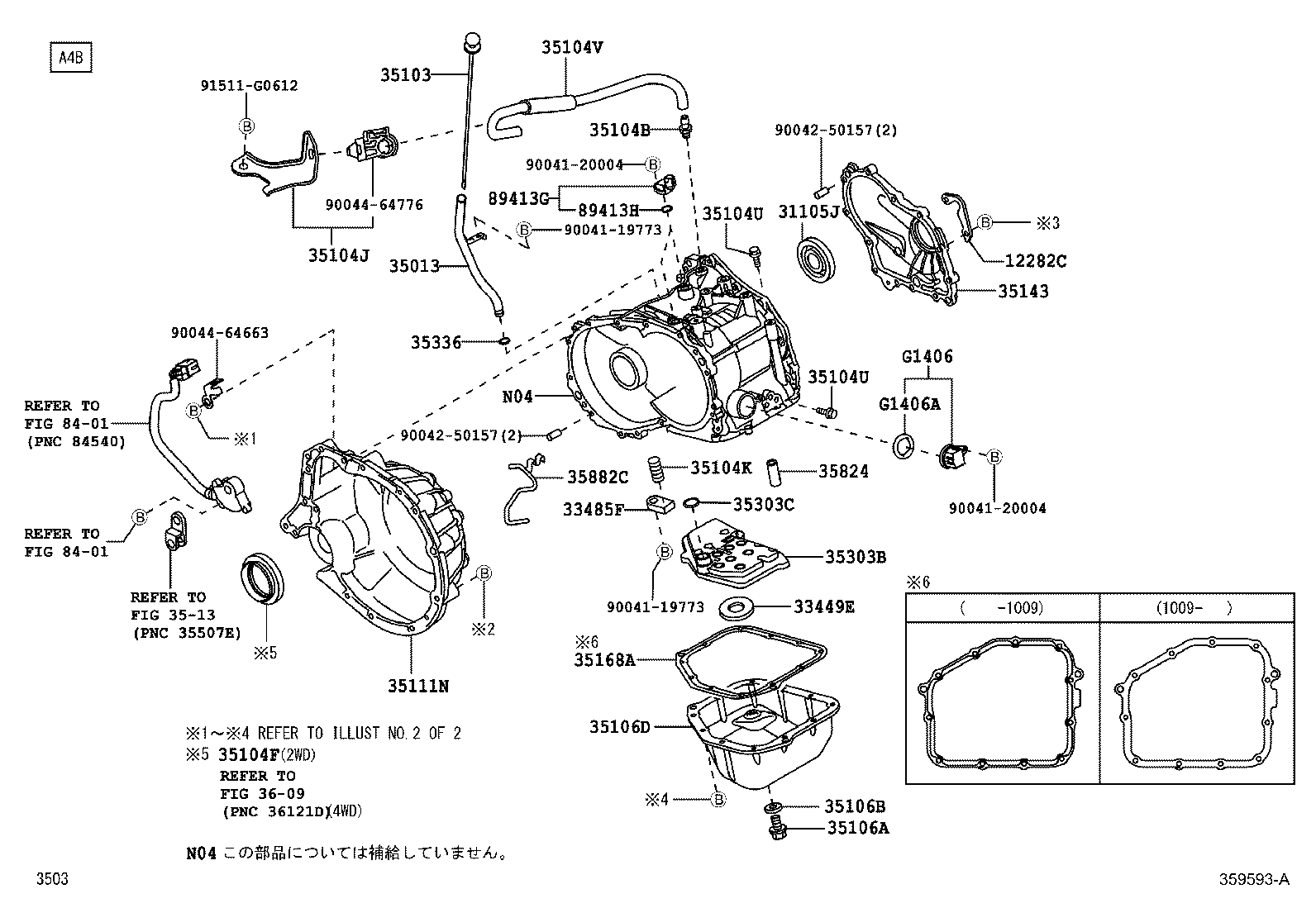

ILLUST NO. 1 OF 2(0812- )

Click highlighted areas on diagram

diagram 12282C 31105J 33449E 33485F 35013 35103 35104B 35104F 35104J 35104K 35104U 35104U 35104V 35106A 35106B 35106D 35111N 3513 35143 35168A 35303B 35303C 35336 35824 35882C 3609 8401 8401 89413G 89413H 9004119773 9004119773 9004120004 9004120004 9004250157 9004250157 9004464663 9004464776 91511G0612 G1406 G1406A
Part # Description Qty Price
12282C - HANGER, ENGINE, NO.2
12282-97206

3SZVE..M502,512

 1
31105J - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90043-11316

M502,512

 1
33449E - MAGNET, TRANSAXLE
33449-B2010

M502,512

 1
33449-87502

M502,512

 1
33485F - PLATE, SPEEDMETER LOCK
33485-87201

M502,512

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-97207

M502,512

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-97203

M502,512

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90049-15053

M502,512

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90043-11317

M502

 1
35104J - BRACKET, BREATHER PLUG HOSE
58107-B1030

M502,512

 1
35104K - COMPRESSION SPRING, TRANSAXLE CASE
90045-01801

M502,512

 1
35104U - BOLT (FOR TRANSAXLE CASE)
90043-45040

M502,512

 7
35104U - BOLT (FOR TRANSAXLE CASE)
90043-45040

M502,512

 7
35104V - HOSE (FOR BREATHER PLUG)
35121-B1010

M502,512

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90043-41041

M502,512

 1
35106B - GASKET, DRAIN PLUG (ATM)
90044-30281

M502,512

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-B1010

M502,512

取付部:ﾌﾗﾂﾄ(平らな)

 1
35106-B1011

M502,512

取付部:ﾋﾞｰﾄﾙ(突き出てる)

 1
35111N - TRANSAXLE HOUSING (ATM)
35111-B1030

M502,512

 1
35111-97203

M502,512

 1
35143 - COVER, TRANSMISSION CASE, REAR
35181-97202

M502,512

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-B1010

M502,512

 1
35168-B1030

M502,512

 1
35303B - STRAINER SUB-ASSY,OIL
35303-97201

M502,512

 1
35303C - RING,O(FOR OIL STRAINER)
96721-24021

M502,512

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90043-01160

M502,512

 1
35824 - SEAL, BRAKE CYLINDER
35824-97201

M502,512

 1
35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-97201

M502,512

 1
89413G - SENSOR, TRANSMISSION REVOLUTION
89413-97202

M502,512

 2
89413H - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

M502,512

 2
G1406 - CONNECTOR SUB-ASSY, TRANS SOLENOID
G1406-97201

M502,512

 1
G1406A - RING, O(FOR TRANS SOLENOID CONNECTOR)
90043-01281

M502,512

 1
Common parts
90041-19773
90041-20004
90042-50157
90044-64663
90044-64776
91511-G0612
Linked diagrams
3513
3609
8401
