M502E-HQGE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

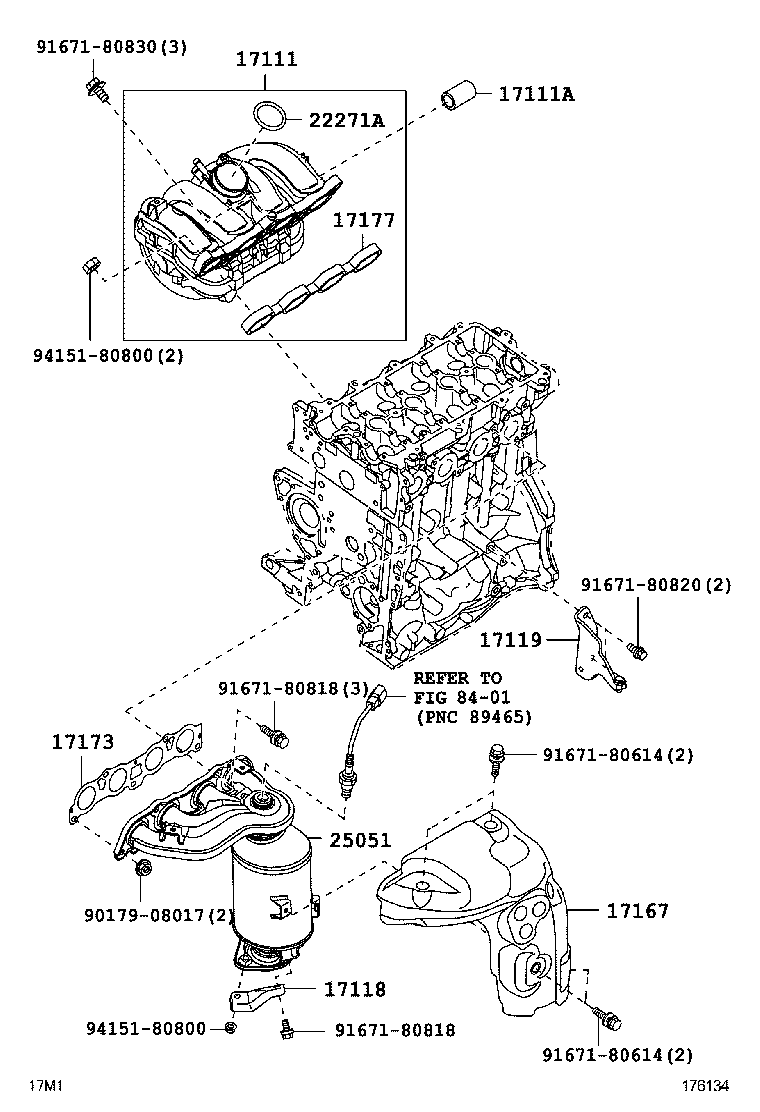

Click highlighted areas on diagram

diagram 17111 17111A 17118 17119 17167 17173 17177 22271A 25051 8401 9017908017 9167180614 9167180614 9167180818 9167180818 9167180820 9167180830 9415180800 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-B1020

3SZVE..M502,512

 1
17111A - PLUG, NO.1
90043-39029

3SZVE..M502,512

 1
17118 - STAY, MANIFOLD
17118-B1020

3SZVE..M502,512

 1
17119 - STAY, MANIFOLD, NO.2
17119-B1020

3SZVE..M502,512

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-B1040

3SZVE..M502,512

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-97401

3SZVE..M502,512

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-B1020

3SZVE..M502,512

 1
22271A - GASKET, THROTTLE BODY
90043-01321

3SZVE..M502,512

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
17140-B1220

3SZVE..M502,512

 1
Common parts
90179-08017
91671-80614
91671-80818
91671-80820
91671-80830
94151-80800
Linked diagrams
8401
