M502E-HQEE (2008)
Toyota Passo Sette
Production
Dec 2008
-
Mar 2012
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0812- )

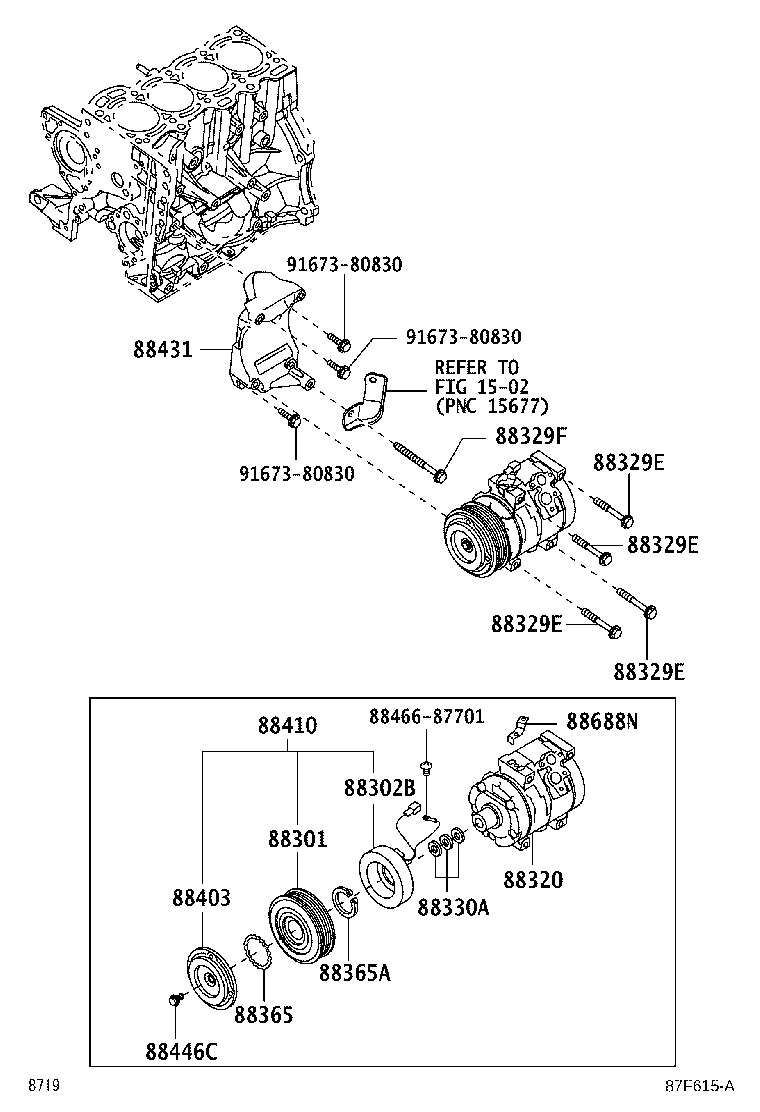

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-B1070 |
M502,512 |
1 | ||
| 88302B - STATOR, MAGNET CLUTCH | ||||
| 88411-B1030 |
M502,512 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-B1040 |
M502,512 |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-B1010 |
M502,512 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-B1010 |
M502,512 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-B1010 |
M502,512 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-B1010 |
M502,512 |
4 | ||
| 88329F - BOLT, COMPRESSOR, NO.2 | ||||
| 88329-B1030 |
M502,512 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87705 |
M502,512 厚さ=0.3 |
1 | ||
| 88318-87706 |
M502,512 厚さ=0.5 |
1 | ||
| 88318-87704 |
M502,512 厚さ=0.1 |
1 | ||
| 88365 - RING, SNAP | ||||
| 90099-07125 |
M502,512 |
1 | ||
| 88365A - RING, SNAP (FOR COMPRESSOR) | ||||
| 90099-07114 |
M502,512 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-87301 |
M502,512 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-B1050 |
M502,512 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-B1010 |
M502,512 |
1 | ||
| 88446C - BOLT, MAGNET CLUTCH SETTING | ||||
| 90099-04349 |
M502,512 |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-B1050 |
M502,512 |
1 | ||
| Common parts | ||||
| 88466-87701 | ||||
| 91673-80830 | ||||
| Linked diagrams | ||||
| 1502 | ||||
