M502E-HQEE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

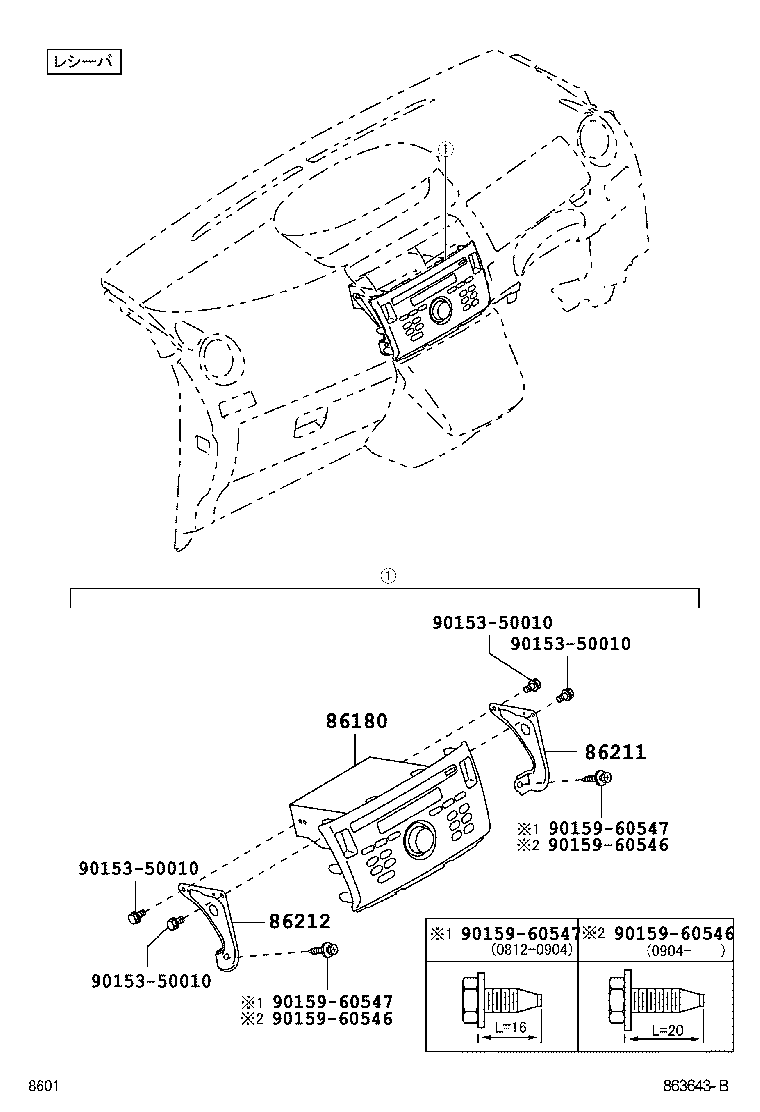

Click highlighted areas on diagram

ﾚｼｰﾊﾞ

diagram 86180 86211 86212 9015350010 9015350010 9015350010 9015350010 9015960546 9015960546 9015960546 9015960547 9015960547 9015960547
Part # Description Qty Price
86180 - TUNER ASSY, STEREO COMPONENT
86180-B1190

M502,512

ｸﾗﾘｵﾝ,ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭCD 4SP

 1
86211 - BRACKET, RADIO, NO.1
86211-B1080

M502,512

ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭCD 4SP

 1
86212 - BRACKET, RADIO, NO.2
86212-B1080

M502,512

ｵｰﾃﾞｨｵ−ﾌﾗｯｼｭCD 4SP

 1
Common parts
90153-50010
90159-60546
90159-60547
