M502E-HQEE (2008)

Toyota Passo Sette

Production Dec 2008 - Mar 2012
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

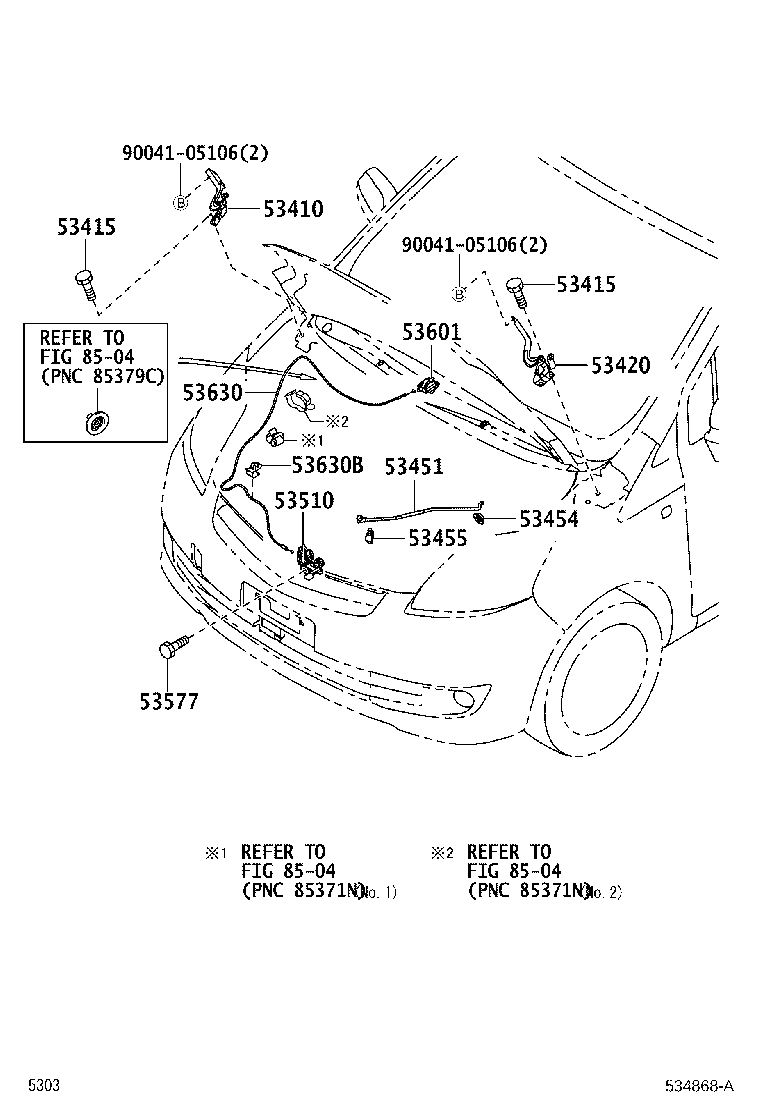

Click highlighted areas on diagram

diagram 53410 53415 53415 53420 53451 53454 53455 53510 53577 53601 53630 53630B 8504 8504 8504 9004105106 9004105106
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-B1030

M502,512

 1
53415 - BOLT, HOOD HINGE
91631-G0614

M502,512

 4
53415 - BOLT, HOOD HINGE
91631-G0614

M502,512

 4
53420 - HINGE ASSY, HOOD, LH
53402-B1030

M502,512

 1
53451 - ROD, HOOD SUPPORT
53440-B1040

M502,512

 1
53440-B1041

M502,512

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-B1010

M502,512

ﾌﾞﾗｳﾝ

 1
53454-B4010

M502,512

ｸﾞﾚｰ

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-B1080

M502,512

 1
53510 - LOCK ASSY, HOOD
53510-B1060

M502,512

 1
53577 - BOLT, HOOD LOCK
91511-G0612

M502,512

 3
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-B2010E2

M502,512

GREGE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-B1060

M502,512

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-09043

M502,512

 1
Common parts
90041-05106
Linked diagrams
8504
