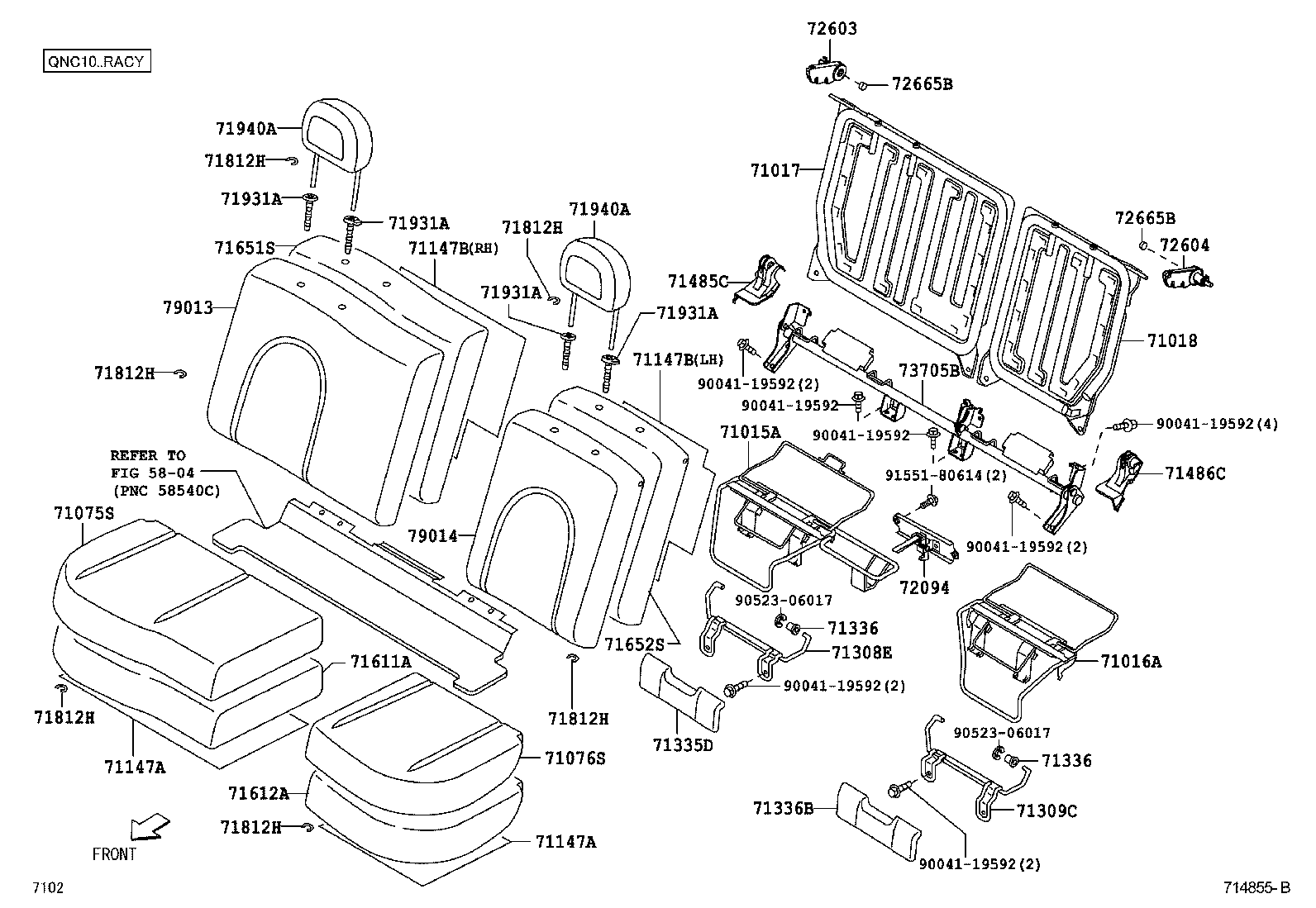

QNC10-AHSEK (2006)
Toyota Passo
(0612-1002)QNC10..RACY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-B1010 |
KGC1#,QNC10 |
1 | ||
| 71015-B1010 |
KGC1#,QNC10 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-B1010 |
KGC1#,QNC10 |
1 | ||
| 71016-B1010 |
KGC1#,QNC10 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-B1020 |
KGC1#,QNC10 |
1 | ||
| 71017-B1020 |
KGC1#,QNC10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-B1020 |
KGC1#,QNC10 |
1 | ||
| 71018-B1020 |
KGC1#,QNC10 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-B1150C1 |
QNC10..RACY BLACK,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-B1080C1 |
QNC10..RACY BLACK,TRIM1# |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-B1040 |
QNC10..RACY 左側 |
1 | ||
| 71147-B1030 |
QNC10..RACY 右側 |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-B1040 |
QNC10..RACY 左側 |
1 | ||
| 71147-B1030 |
QNC10..RACY 右側 |
1 | ||
| 71147B - SILENCER, SEAT SPRING | ||||
| 71147-B1050 |
QNC10..RACY 右側 |
1 | ||
| 71147-B1060 |
QNC10..RACY 左側 |
1 | ||
| 71147B - SILENCER, SEAT SPRING | ||||
| 71147-B1050 |
QNC10..RACY 右側 |
1 | ||
| 71147-B1060 |
QNC10..RACY 左側 |
1 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71033-B1010 |
KGC1#,QNC10 |
1 | ||
| 71033-B1010 |
KGC1#,QNC10 |
1 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71033-B1020 |
KGC1#,QNC10 |
1 | ||
| 71033-B1020 |
KGC1#,QNC10 |
1 | ||
| 71335D - PLATE, REAR SEAT LEG COVER, RH | ||||
| 71335-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71335-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 90043-86093 |
KGC1#,QNC10 |
4 | ||
| 90043-86093 |
KGC1#,QNC10 |
4 | ||
| 21552-B1010 |
KGC1#,QNC10 |
4 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 90043-86093 |
KGC1#,QNC10 |
4 | ||
| 90043-86093 |
KGC1#,QNC10 |
4 | ||
| 21552-B1010 |
KGC1#,QNC10 |
4 | ||
| 71336B - PLATE, REAR SEAT LEG COVER, LH | ||||
| 71336-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71336-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71485C - COVER, REAR SEAT HINGE, RH | ||||
| 71485-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71485-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71486-B1010B0 |
KGC1#,QNC10 DK.GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-B1070 |
QNC10..RACY |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-B1050 |
QNC10..RACY |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-B1090 |
QNC10..RACY |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71508-B1050 |
QNC10..RACY |
1 | ||
| 71508-B1050 |
QNC10..RACY |
2 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
QNC10..RACY |
90 | ||
| 71812-87201 |
QNC10..RACY |
88 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
QNC10..RACY |
90 | ||
| 71812-87201 |
QNC10..RACY |
88 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
QNC10..RACY |
90 | ||
| 71812-87201 |
QNC10..RACY |
88 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
QNC10..RACY |
90 | ||
| 71812-87201 |
QNC10..RACY |
88 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
QNC10..RACY |
90 | ||
| 71812-87201 |
QNC10..RACY |
88 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
QNC10..RACY |
90 | ||
| 71812-87201 |
QNC10..RACY |
88 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
2 | ||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
2 | ||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
2 | ||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
3 | ||
| 71930-97202C0 |
QNC10..RACY ﾛｯｸ付,BLACK,TRIM1#,左側 |
2 | ||
| 71931-97202C0 |
QNC10..RACY ﾛｯｸ無,BLACK,TRIM1#,右側 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1210C0 |
QNC10..RACY BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1210C0 |
QNC10..RACY BLACK,TRIM1# |
2 | ||
| 72094 - LOCK SUB-ASSY, REAR SEAT TURN | ||||
| 72094-B1020 |
KGC1#,QNC10 左側 |
1 | ||
| 72094-B1010 |
KGC1#,QNC10 右側 |
1 | ||
| 72094-B1020 |
KGC1#,QNC10 左側 |
1 | ||
| 72094-B1010 |
KGC1#,QNC10 右側 |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
1 | ||
| 72603-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
1 | ||
| 72603-B1010E0 |
KGC1#,QNC10 LINEN BEIGE,TRIM1# |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
1 | ||
| 72604-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
1 | ||
| 72604-B1010E0 |
KGC1#,QNC10 LINEN BEIGE,TRIM1# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 72665-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 72665-B1010E0 |
KGC1#,QNC10 LINEN BEIGE,TRIM1# |
2 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 72665-B1010B0 |
KGC1#,QNC10 LT.GRAY,TRIM1# |
2 | ||
| 72665-B1010E0 |
KGC1#,QNC10 LINEN BEIGE,TRIM1# |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-B1010 |
KGC1#,QNC10 |
1 | ||
| 73705-B1010 |
KGC1#,QNC10 |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 71077-B1230C1 |
QNC10..RACY BLACK,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71078-B1190C1 |
QNC10..RACY BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90041-19592 | ||||
| 90523-06017 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 5804 | ||||
